XKU710-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

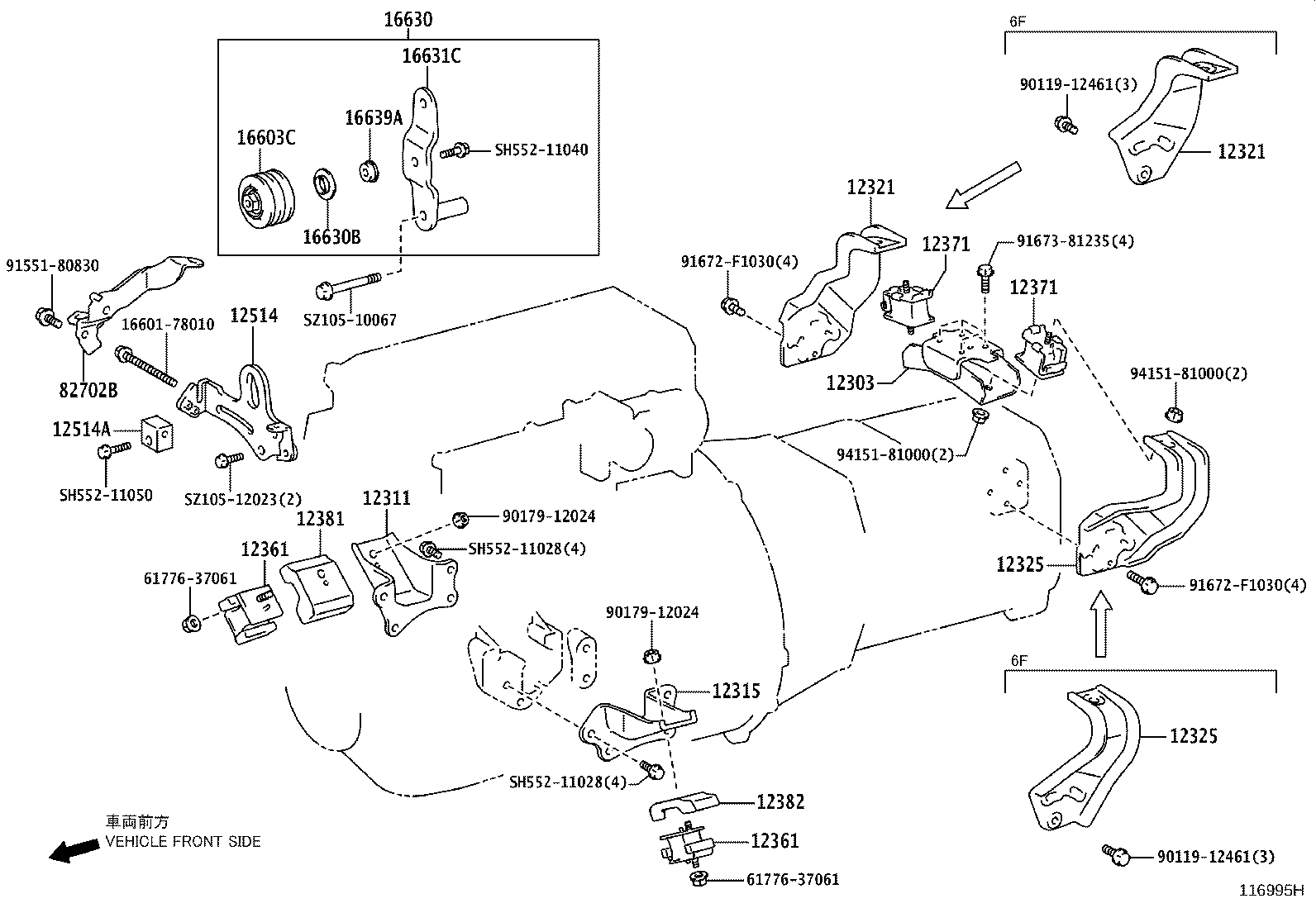

Click highlighted areas on diagram

diagram 12303 12311 12315 12321 12321 12325 12325 12361 12361 12371 12371 12381 12382 12514 12514A 1660178010 16603C 16630 16630B 16631C 16639A 6177637061 6177637061 82702B 9011912461 9011912461 9017912024 9017912024 9155180830 91672F1030 91672F1030 9167381235 9415181000 9415181000 SH55211028 SH55211028 SH55211040 SH55211050 SZ10510067 SZ10512023
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78030

N04C..XKU700,710,720

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-E0230

N04C..XKU700,710,720

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
S1231-52000

N04C..XKU700,710,720

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78561

N04C..XKU700,710,720

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78561

N04C..XKU700,710,720

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78531

N04C..XKU700,710,720

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78531

N04C..XKU700,710,720

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58131

N04C..XKU700,710,720

 2
12361-58130

N04C..XKU700,710,720

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58131

N04C..XKU700,710,720

 2
12361-58130

N04C..XKU700,710,720

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XKU700,710,720

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XKU700,710,720

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78040

N04C..XKU700,710,720

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-78040

N04C..XKU700,710,720

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
S1205-E0380

N04C..XKU700,710,720

 1
12514A - SLIDER, FAN BELT ADJUSTING
12519-E0040

N04C..XKU700,710,720

 1
16603C - PULLEY SUB-ASSY, IDLER
S1660-31061

N04C..XKU700,710,720

 1
16630 - PULLEY ASSY, IDLER
16630-78252

N04C..XKU700,710,720

 1
16630B - COVER, DUST
S1127-51340

N04C..XKU700,710,720

 1
16631C - BRACKET, IDLER PULLEY
16631-78021

N04C..XKU700,710,720

 1
16639A - SPACER, IDLER PULLEY
SZ910-16192

N04C..XKU700,710,720

 1
82702B - BRACKET SUB-ASSY, WIRING HARNESS
82702-37681

XKU700,710,720

 1
Common parts
16601-78010
61776-37061
90119-12461
90179-12024
91551-80830
91672-F1030
91673-81235
94151-81000
SH552-11028
SH552-11040
SH552-11050
SZ105-10067
SZ105-12023
