XKU702-TKVQX3 (2019)
Toyota Dyna/Toyoace Hv

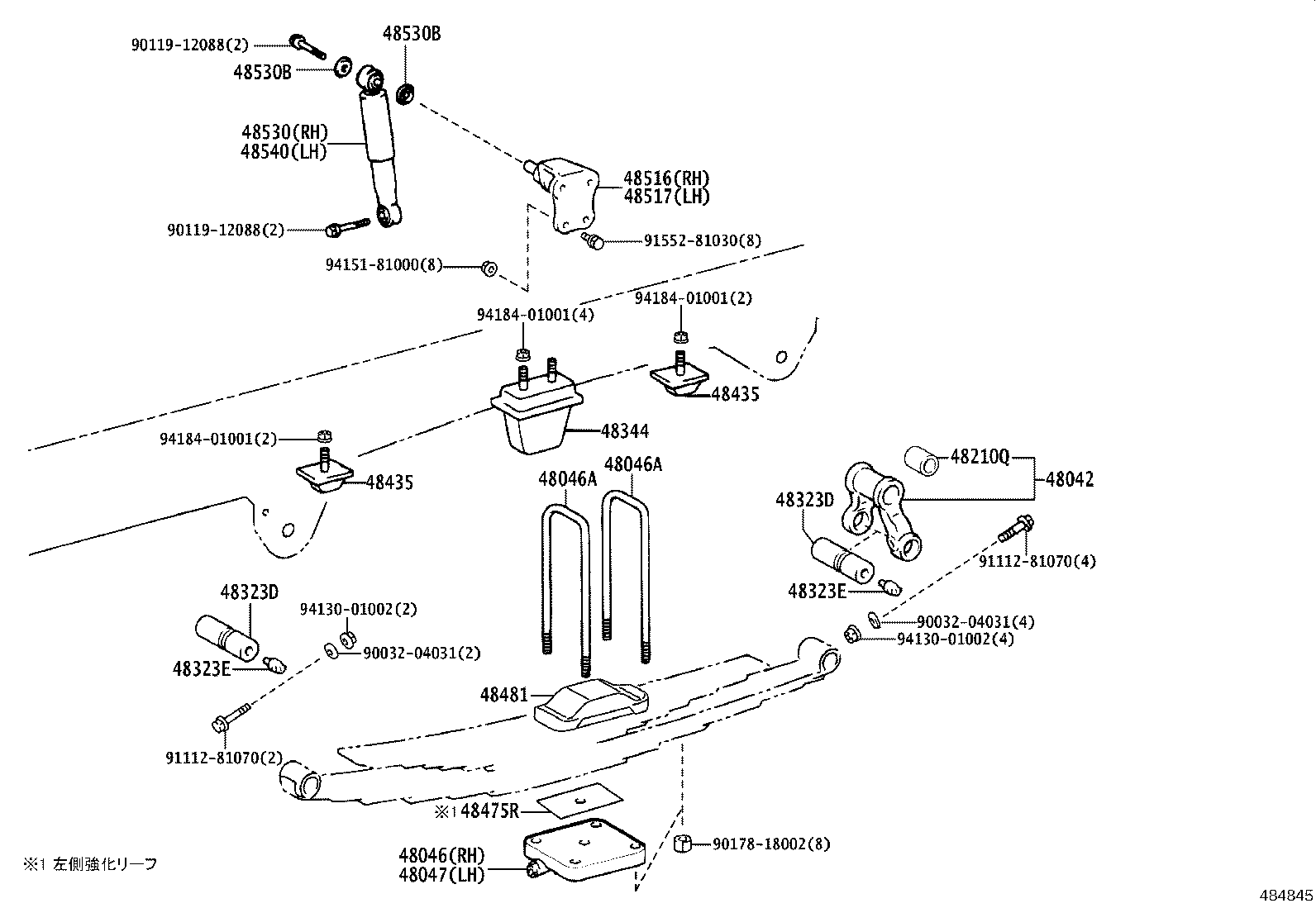

ILLUST NO. 1 OF 2(1905- )XKU702
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37052 |
XKU702..DCRWD |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XKU702,71#,72#..DCRWD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XKU702,710,720..DCRWD;XKU712,722..30T..DCRWD 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XKU702,710,720..DCRWD;XKU712,722..30T..DCRWD 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XKU702,71#,72#..DCRWD |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
XKU702..DCRWD |
2 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XKU702..DCRWD |
6 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XKU702..DCRWD |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 96451-01000 |
XKU702..DCRWD |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 96451-01000 |
XKU702..DCRWD |
6 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XKU712,722..T3..30T..DCRWD;XKU702,710,720..(T3,T4)..DCRWD |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48306-E0280 |
XKU702..DCRWD |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48306-E0280 |
XKU702..DCRWD |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XKU702,71#,72#..DCRWD |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XKU702,71#,72#..DCRWD |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XKU702,71#,72#..DCRWD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37291 |
XKU702,710,720..DCRWD ﾏｰｸ 48531−37291 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37291 |
XKU702,710,720..DCRWD ﾏｰｸ 48531−37291 |
1 | ||
| Common parts | ||||
| 90032-04031 | ||||
| 90119-12088 | ||||
| 90178-18002 | ||||
| 91112-81070 | ||||
| 91552-81030 | ||||
| 94130-01002 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

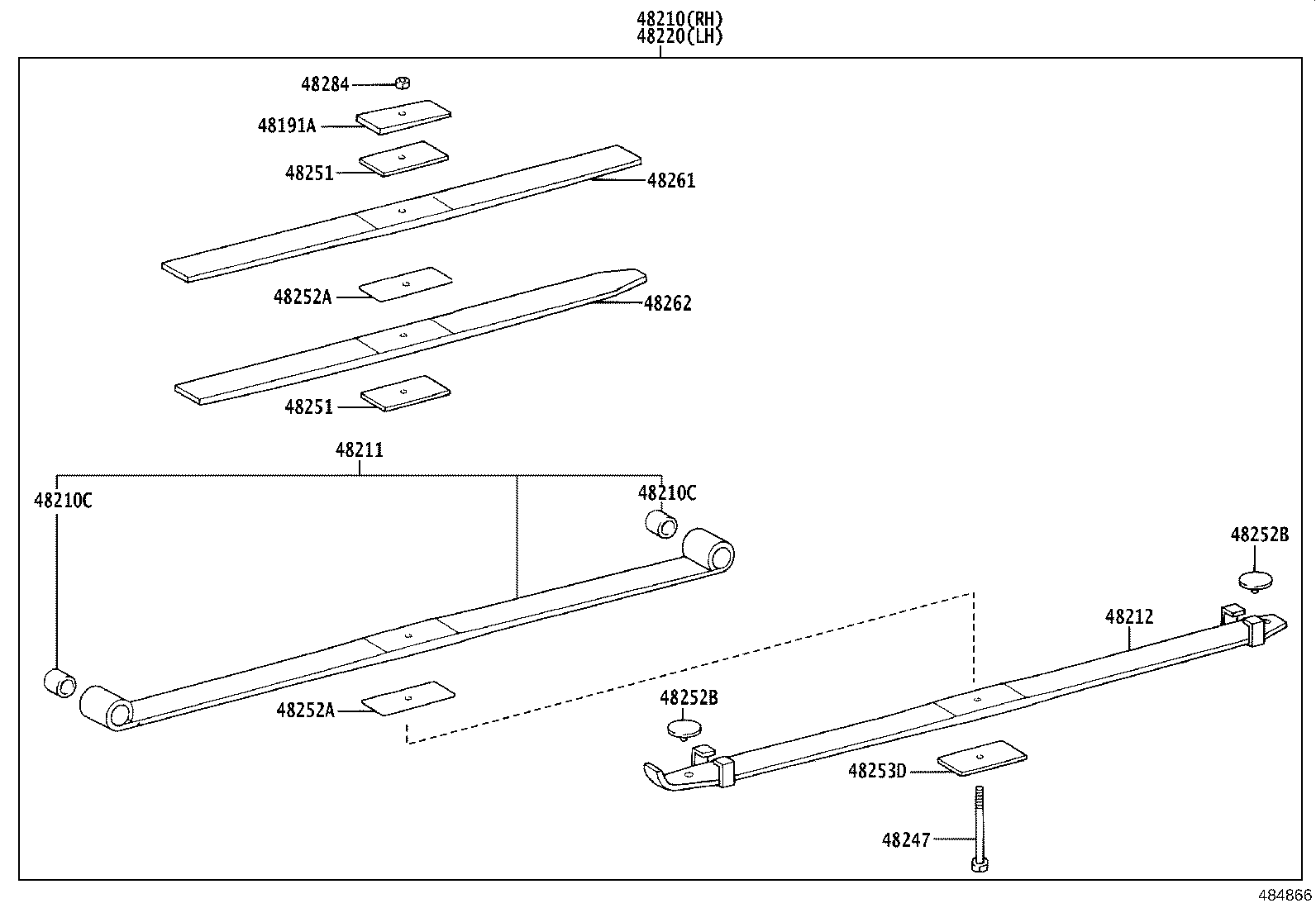

ILLUST NO. 2 OF 2(1905- )XKU702
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XKU702,71#,72#..DCRWD |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37V90 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XKU702..DCRWD |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XKU702..DCRWD |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48201-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48202-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37V90 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J81 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48247-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XKU702,712,722..(30T,35T)..DCRWD |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XKU702,712,722..(30T,35T)..DCRWD |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XKU702,712,722..DCRWD |
2 | ||
| S4814-E0010 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48214-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48218-3V140 |
XKU702..DCRWD |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48253-37J41 |
XKU702..DCRWD |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48214-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XKU702,71#,72#..DCRWD |
2 | ||

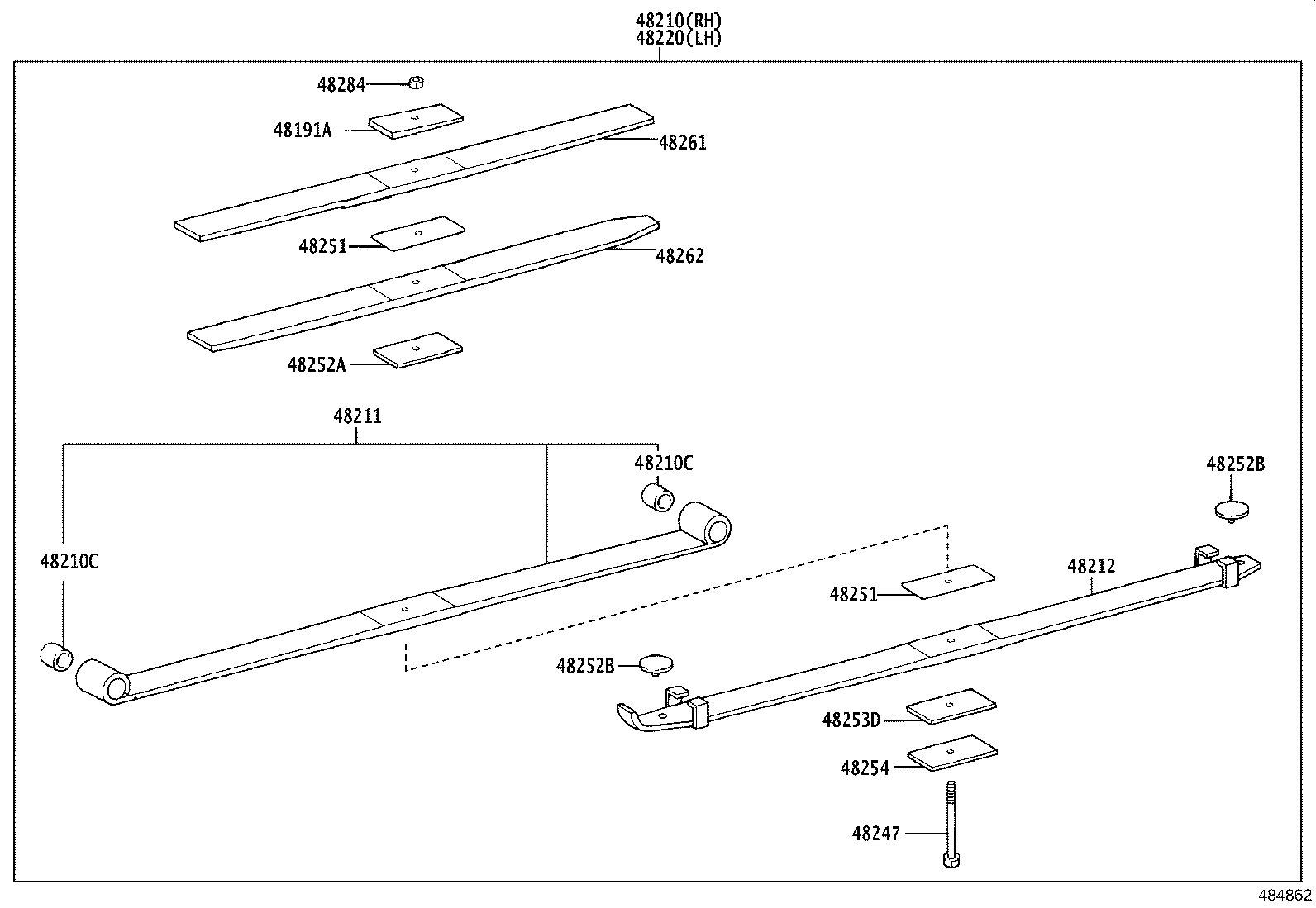

ILLUST NO. 2 OF 2(1905- )XKU702
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XKU702,71#,72#..DCRWD |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37V90 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XKU702..DCRWD |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XKU702..DCRWD |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48201-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48202-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37V90 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XKU702..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37J81 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48247-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XKU702,712,722..(30T,35T)..DCRWD |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XKU702,712,722..(30T,35T)..DCRWD |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XKU702,712,722..DCRWD |
2 | ||
| S4814-E0010 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XKU702,712,722..DCRWD |
2 | ||
| S4814-E0010 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XKU702,71#,72#..DCRWD |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48214-37N60 |
XKU702..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48218-3V140 |
XKU702..DCRWD |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37V90 |
XKU702..30T..DCRWD |
2 | ||
| 48214-3V121 |
XKU702..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XKU702,71#,72#..DCRWD |
2 | ||
