XKU700-TKURC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1107- )DCRTK,DCRWD

Click highlighted areas on diagram

ｱﾘ(ｵｰﾊﾞｰﾍｯﾄﾞ ｺﾝｿｰﾙ)

diagram 63183C 63183C 63651C 63651C 74351C 74351C 74351C 74351C 74352C 74352C 74352C 74352C 9331516016 9331516016 9331516016 9331516016
Part # Description Qty Price
63183C - BRACKET, ROOF CONSOLE, FRONT
63183-37040

XKU700,710,720

 1
63183C - BRACKET, ROOF CONSOLE, FRONT
63183-37040

XKU700,710,720

 1
63651C - BOX, ROOF CONSOLE
63651-37010B0

XKU700,710,720

GRAY,TRIM1#

 2
63651C - BOX, ROOF CONSOLE
63651-37010B0

XKU700,710,720

GRAY,TRIM1#

 2
74351C - COVER, ROOF CONSOLE, NO.1
74351-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74351-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74351C - COVER, ROOF CONSOLE, NO.1
74351-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74351-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74351C - COVER, ROOF CONSOLE, NO.1
74351-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74351-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74351C - COVER, ROOF CONSOLE, NO.1
74351-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74351-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352C - COVER, ROOF CONSOLE, NO.2
74352-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74352C - COVER, ROOF CONSOLE, NO.2
74352-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74352C - COVER, ROOF CONSOLE, NO.2
74352-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74352C - COVER, ROOF CONSOLE, NO.2
74352-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
Common parts
93315-16016

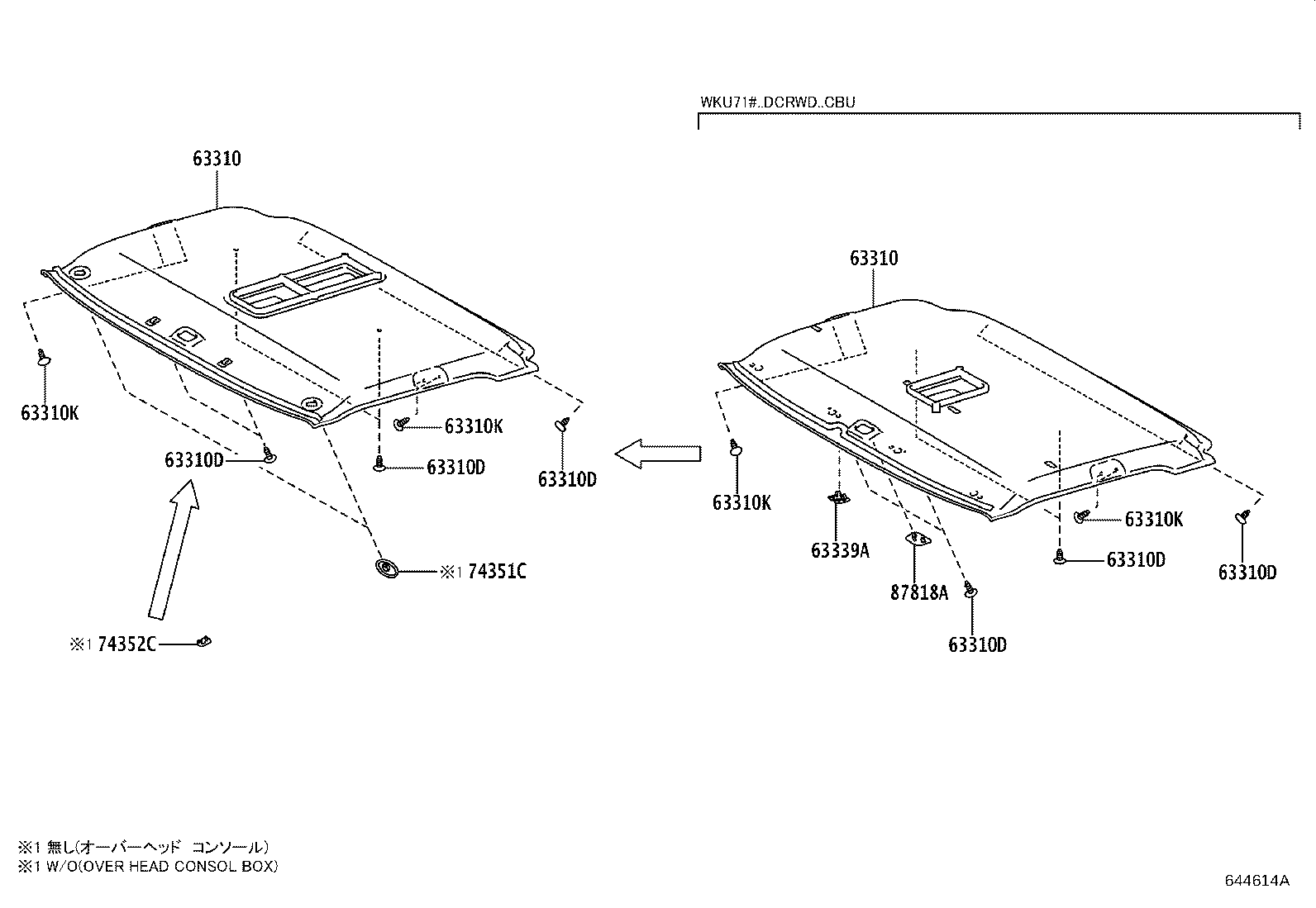

ILLUST NO. 1 OF 2(1107- )DCRTK,DCRWD

Click highlighted areas on diagram

diagram 63310 63310 63310D 63310D 63310D 63310D 63310D 63310D 63310K 63310K 63310K 63310K 63339A 74351C 74352C 87818A
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-37380B0

XKU700,710,720

GRAY,TRIM1#

 1
63310-37390B0

XKU700,710,720

室内灯−有り(LEDﾗﾝﾌﾟ),GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-37380B0

XKU700,710,720

GRAY,TRIM1#

 1
63310-37390B0

XKU700,710,720

室内灯−有り(LEDﾗﾝﾌﾟ),GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310K - CLIP
90467-06048B9

XKU700,710,720

ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1#

 2
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310K - CLIP
90467-06048B9

XKU700,710,720

ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1#

 2
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310K - CLIP
90467-06048B9

XKU700,710,720

ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1#

 2
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
63310K - CLIP
90467-06048B9

XKU700,710,720

ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1#

 2
90467-06048B9

XKU700,710,720

MD.CHARCOAL,TRIM1#

 4
74351C - COVER, ROOF CONSOLE, NO.1
74351-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
74351-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352C - COVER, ROOF CONSOLE, NO.2
74352-37100B0

XKU700,710,720

GRAY,TRIM1#

 2
74352-35010B3

XKU700,710,720

GRAY,TRIM1#

 2
