XKU700-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU70#..DCRTK

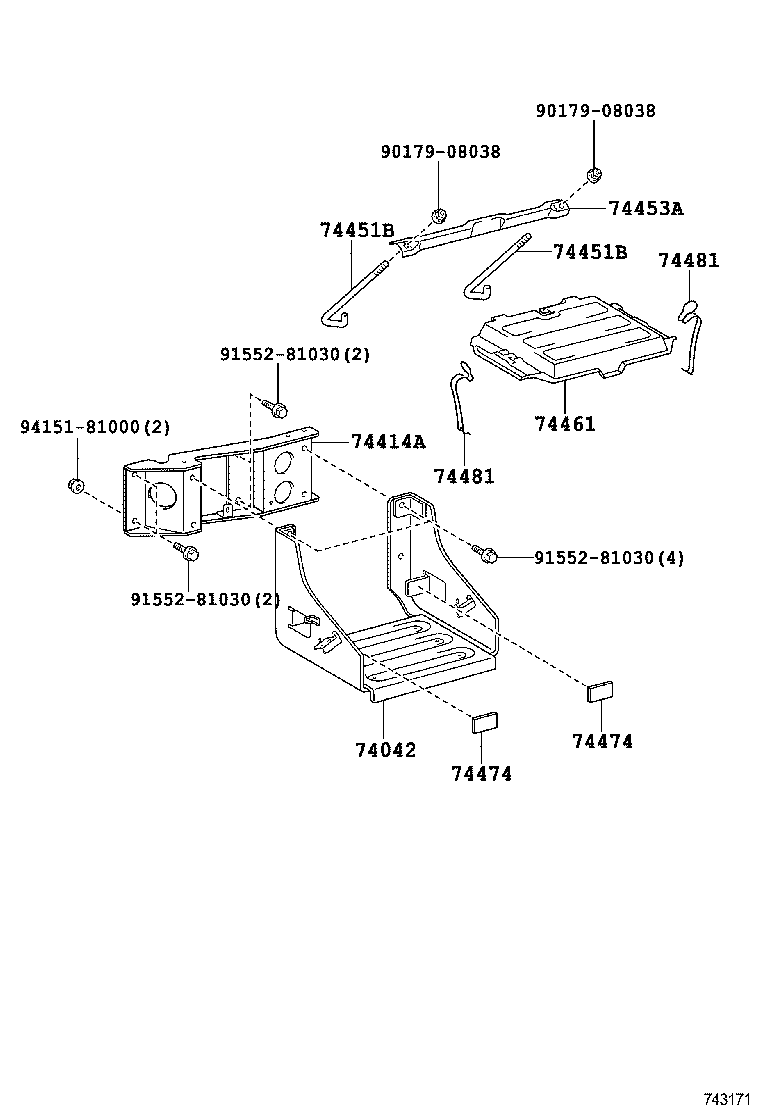

Click highlighted areas on diagram

diagram 74042 74414A 74451B 74451B 74453A 74461 74474 74474 74481 74481 9017908038 9017908038 9155281030 9155281030 9155281030 9415181000
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-37280

XKU700,710,720

 1
74042-37300

XKU700,710,720..IV3

ﾊﾞｯﾃﾘ−95D31L X 2

 1
74042-37281

XKU700,710,720

 1
74414A - BRACKET, BATTERY, NO.1
74401-37150

XKU700

 1
74451B - BOLT, BATTERY CLAMP
74451-37011

XKU700,710,720

 2
74451B - BOLT, BATTERY CLAMP
74451-37011

XKU700,710,720

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

XKU700,710,720

 1
74461 - COVER, BATTERY
74461-37020

XKU700,710,720

 1
74461-37030

XKU700,710,720..IV3

ﾊﾞｯﾃﾘ−95D31L X 2

 1
74474 - PAD, BATTERY
74475-36040

XKU700,710,720

 2
74474 - PAD, BATTERY
74475-36040

XKU700,710,720

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU700,710,720

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU700,710,720

 2
Common parts
90179-08038
91552-81030
94151-81000
