XKU655-TQVMX (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )DCRWD

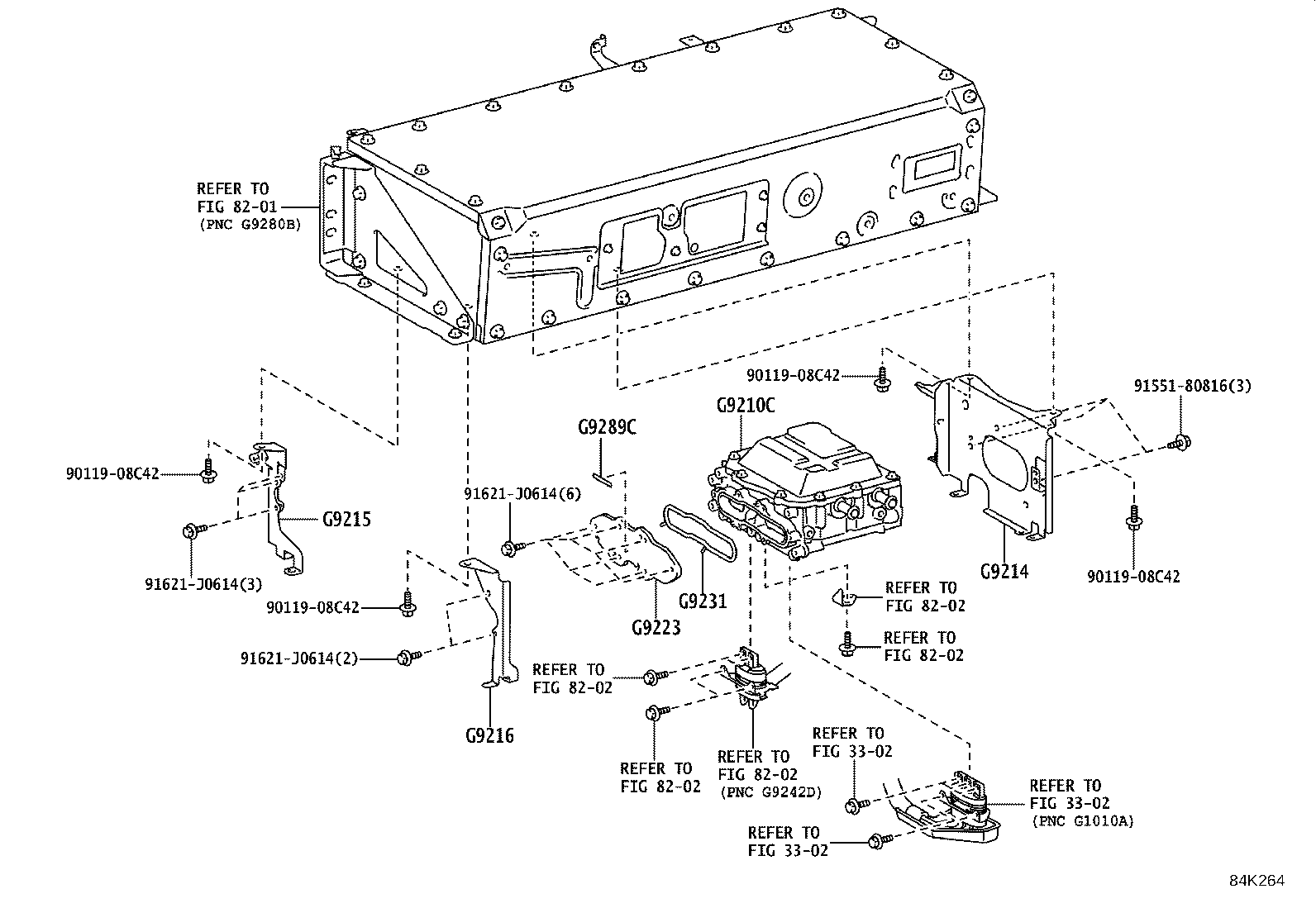

Click highlighted areas on diagram

diagram 3302 3302 3302 8201 8202 8202 8202 8202 8202 9011908C42 9011908C42 9011908C42 9011908C42 9155180816 91621J0614 91621J0614 91621J0614 G9210C G9214 G9215 G9216 G9223 G9231 G9289C
Part # Description Qty Price
G9210C - INVERTER ASSY, MOTOR & GENERATOR CONTROL
G9210-37050

XKC605,XKU605,645,655..DCRWD

 1
G9214 - BRACKET, INVERTER, NO.1
G9214-37070

XKC605,XKU605,645,655..DCRWD

 1
G9215 - BRACKET, INVERTER, NO.2
G9214-37060

XKC605,XKU605,645,655..DCRWD

 1
G9216 - BRACKET, INVERTER, NO.3
G9214-37050

XKC605,XKU605,645,655..DCRWD

 1
G9223 - COVER, INVERTER TERMINAL
G9223-37030

XKC605,XKU605,645,655..DCRWD

 1
G9231 - GASKET, INVERTER COVER
G9287-37010

XKC605,XKU605,645,655..DCRWD

 1
G9289C - LABEL, BATTERY CAUTION
G9289-37160

XKC605,XKU605,645,655..DCRWD

 1
Common parts
90119-08C42
91551-80816
91621-J0614
Linked diagrams
3302
8201
8202
