XKU655-TKVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

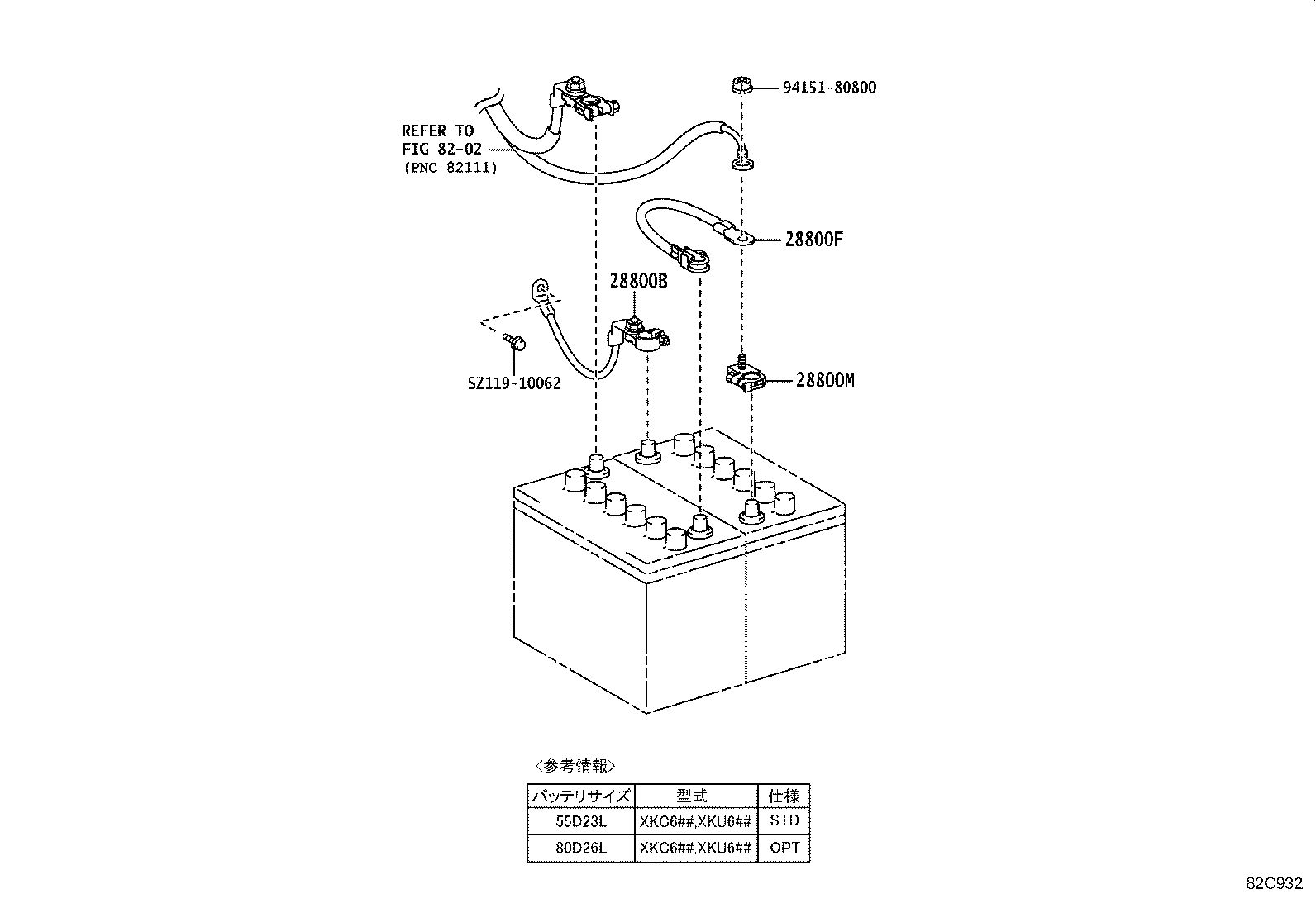

ILLUST NO. 1 OF 4(1905- )DCRWD

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800B 28800F 28800M 8202 9415180800 SZ11910062
Part # Description Qty Price
28800B - CABLE, BATTERY TO GROUND
82286-37110

N04C..XKC605,XKU605,645,655..DCRWD

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37230

N04C..XKC605,XKU605,645,655..DCRWD

 1
28800M - TERMINAL, BATTERY POSITIVE
90982-05065

N04C..XKC605,XKU605,645,655..DCRWD

 1
Common parts
94151-80800
SZ119-10062
Linked diagrams
8202

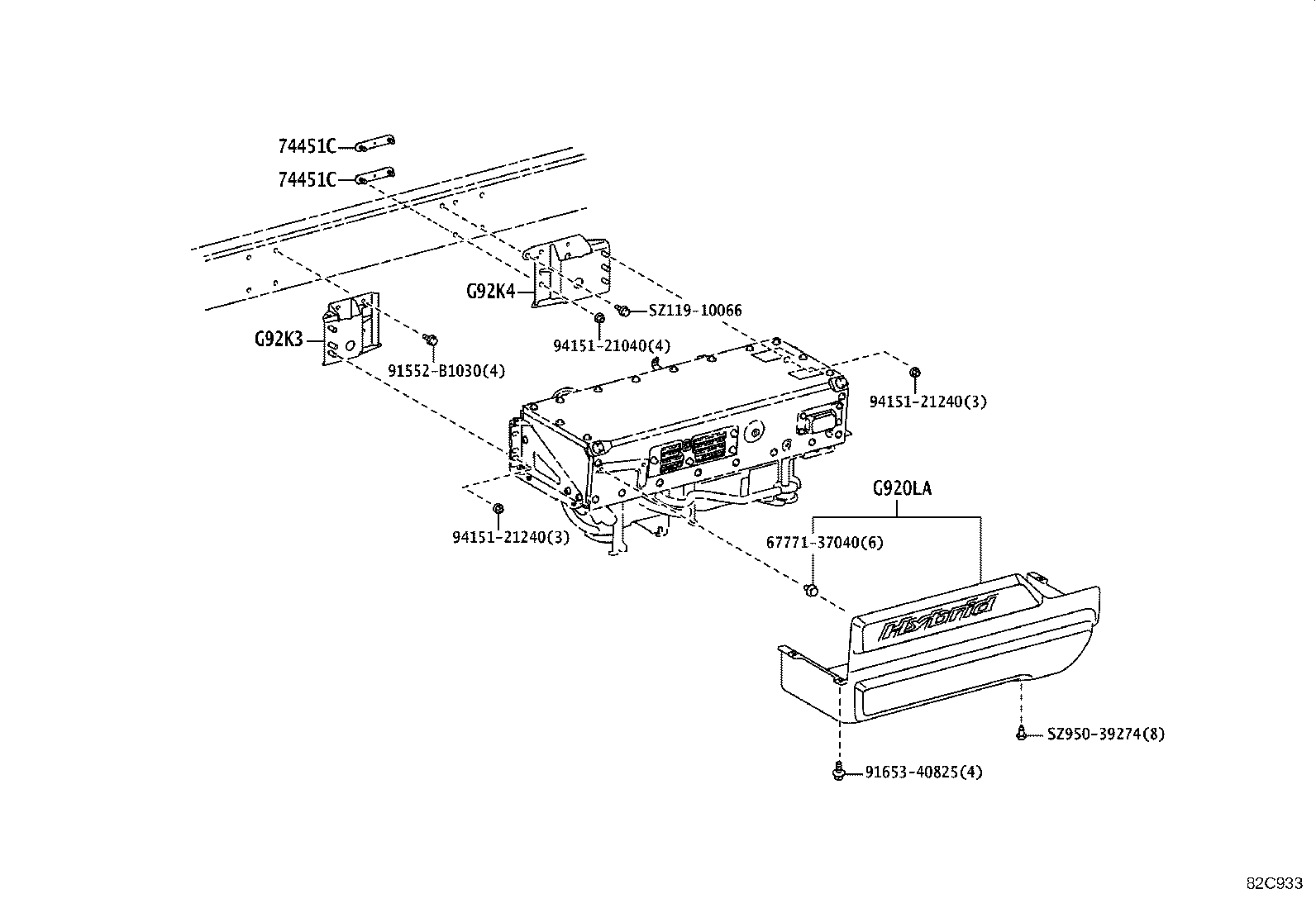

ILLUST NO. 2 OF 4(1905- )DCRWD

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 6777137040 74451C 74451C 91552B1030 9165340825 9415121040 9415121240 9415121240 G920LA G92K3 G92K4 SZ11910066 SZ95039274
Part # Description Qty Price
74451C - PLATE, BATTERY SET
74451-37190

XKU645,655..DCRWD

 2
74451C - PLATE, BATTERY SET
74451-37190

XKU645,655..DCRWD

 2
G920LA - COVER SUB-ASSY, HYBRID BATTERY, LOWER
G920L-37020

XKC605,XKU605,645,655..DCRWD

 1
G92K3 - BRACKET, HYBRID BATTERY CARRIER, NO.1
G92K3-37020

XKC605,XKU605,645,655..DCRWD

 1
G92K4 - BRACKET, HYBRID BATTERY CARRIER, NO.2
G92K4-37170

XKU645,655..DCRWD

 1
Common parts
67771-37040
91552-B1030
91653-40825
94151-21040
94151-21240
SZ119-10066
SZ950-39274

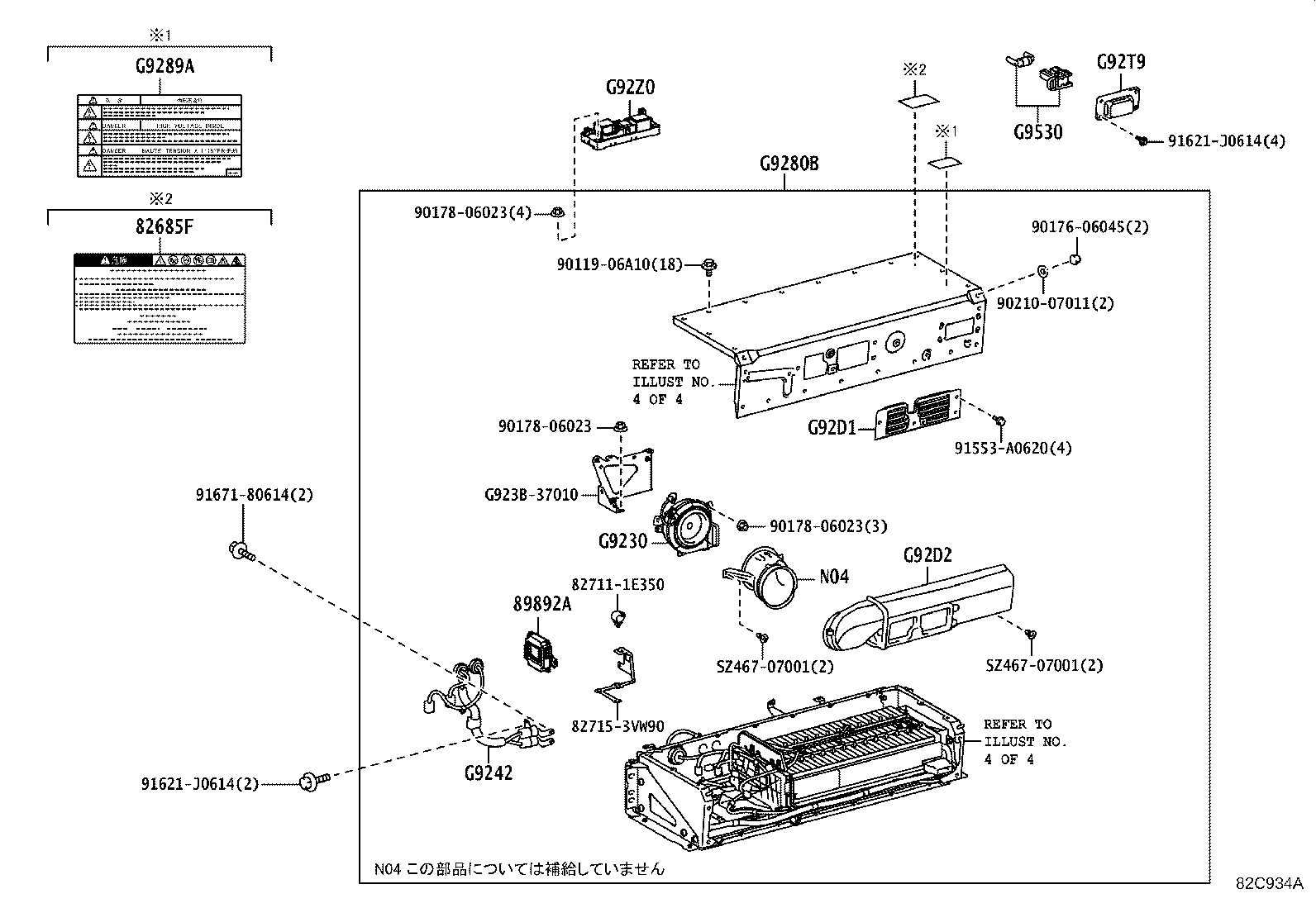

ILLUST NO. 3 OF 4(1905- )DCRWD

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82685F 827111E350 827153VW90 89892A 9011906A10 9017606045 9017806023 9017806023 9017806023 9021007011 91553A0620 91621J0614 91621J0614 9167180614 G9230 G923B37010 G9242 G9280B G9289A G92D1 G92D2 G92T9 G92Z0 G9530 SZ46707001 SZ46707001
Part # Description Qty Price
82685F - MAIN BATTERY CAUTION PLATE, NO.1
G9289-37150

XKC605,XKU605,645,655..DCRWD

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-37010

XKC605,XKU605,645,655..DCRWD

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-37050

XKC605,XKU605,645,655..DCRWD

 1
G9242 - CABLE, MAIN BATTERY
G9242-37030

XKC605,XKU605,645,655..DCRWD

 1
G9280B - BATTERY ASSY, HV
G9280-37020

XKC605,XKU605,645,655..DCRWD

 1
G9289A - LABEL, BATTERY CAUTION
G9289-37020

XKC605,XKU605,645,655..DCRWD

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-37020

XKC605,XKU605,645,655..DCRWD

 1
G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2
G92D2-37010

XKC605,XKU605,645,655..DCRWD

 1
G92T9 - COVER, HYBRID BATTERY SERVICE PLUG
G92T9-37020

XKC605,XKU605,645,655..DCRWD

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-37030

XKC605,XKU605,645,655..DCRWD

 1
G9530 - PLUG ASSY, HYBRID BATTERY SUPPLY
G9530-37010

XKC605,XKU605,645,655..DCRWD

 1
Common parts
82711-1E350
82715-3VW90
90119-06A10
90176-06045
90178-06023
90210-07011
91553-A0620
91621-J0614
91671-80614
G923B-37010
SZ467-07001

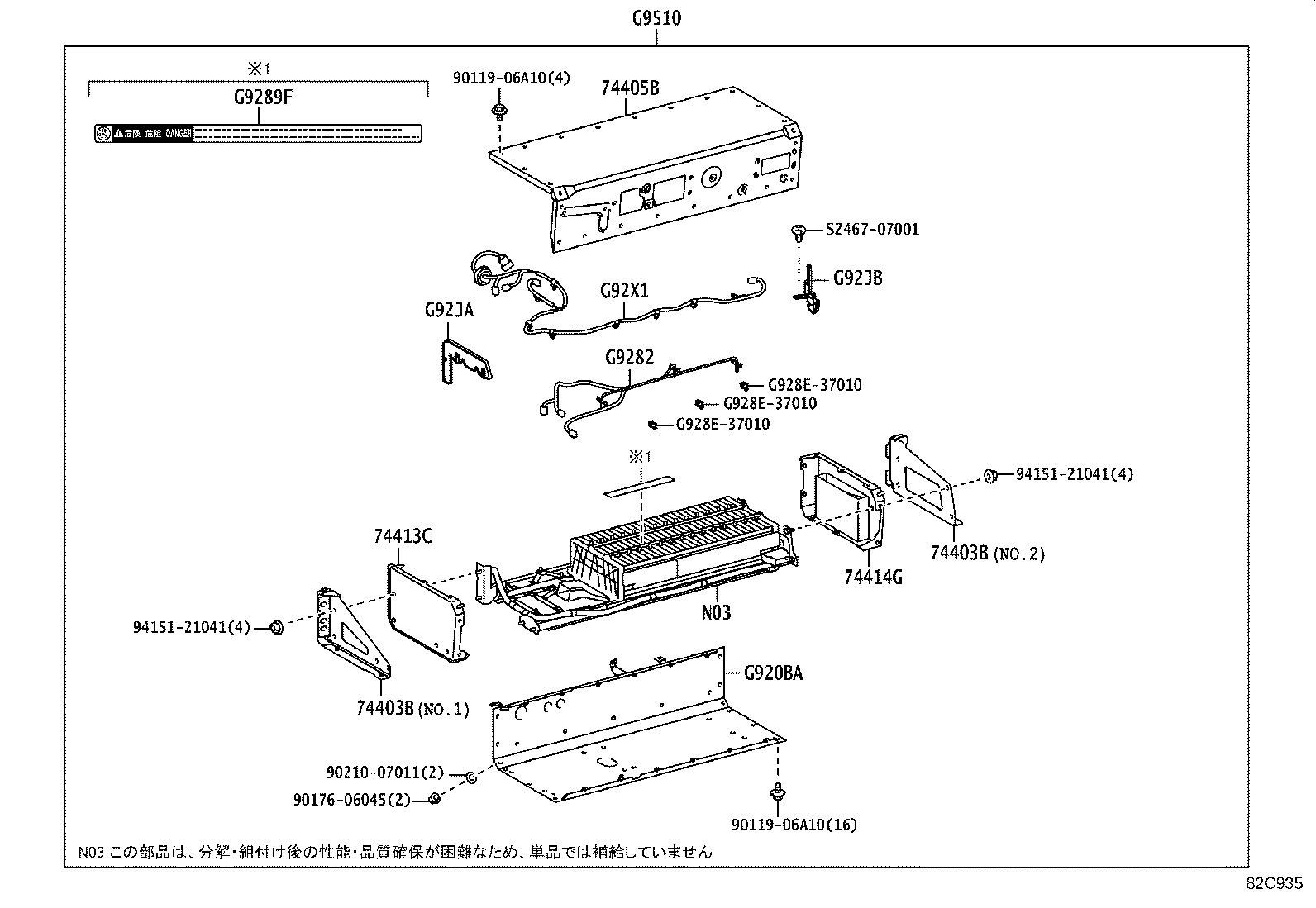

ILLUST NO. 4 OF 4(1905- )DCRWD

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 74403B 74403B 74405B 74413C 74414G 9011906A10 9011906A10 9017606045 9021007011 9415121041 9415121041 G920BA G9282 G9289F G928E37010 G928E37010 G928E37010 G92JA G92JB G92X1 G9510 SZ46707001
Part # Description Qty Price
74403B - CARRIER SUB-ASSY, BATTERY
74403-37040

XKC605,XKU605,645,655..DCRWD

NO.2

 1
74403-37030

XKC605,XKU605,645,655..DCRWD

NO.1

 1
74403B - CARRIER SUB-ASSY, BATTERY
74403-37040

XKC605,XKU605,645,655..DCRWD

NO.2

 1
74403-37030

XKC605,XKU605,645,655..DCRWD

NO.1

 1
74405B - COVER SUB-ASSY, BATTERY
74405-37040

XKC605,XKU605,645,655..DCRWD

 1
74413C - PANEL, BATTERY CARRIER, FRONT
74413-37140

XKC605,XKU605,645,655..DCRWD

 1
74414G - PANEL, BATTERY CARRIER, RR
74414-37560

XKC605,XKU605,645,655..DCRWD

 1
G920BA - TRAY SUB-ASSY, HV BATTERY, NO.1
G920B-37010

XKC605,XKU605,645,655..DCRWD

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-37020

XKC605,XKU605,645,655..DCRWD

 1
G9289F - LABEL, BATTERY CAUTION, NO.3
G9289-37170

XKC605,XKU605,645,655..DCRWD

 1
G92JA - PLATE, HV BATTERY END, NO.1
G920A-37010

XKC605,XKU605,645,655..DCRWD

 1
G92JB - PLATE, HV BATTERY END, NO.2
G920A-37040

XKC605,XKU605,645,655..DCRWD

 1
G92X1 - WIRE, HYBRID BATTERY PACK, NO.1
G92X1-37050

XKC605,XKU605,645,655..DCRWD

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-37040

XKC605,XKU605,645,655..DCRWD

 1
Common parts
90119-06A10
90176-06045
90210-07011
94151-21041
G928E-37010
SZ467-07001
