XKU655-TKUMC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKC605,645,655,XKU605,645,655

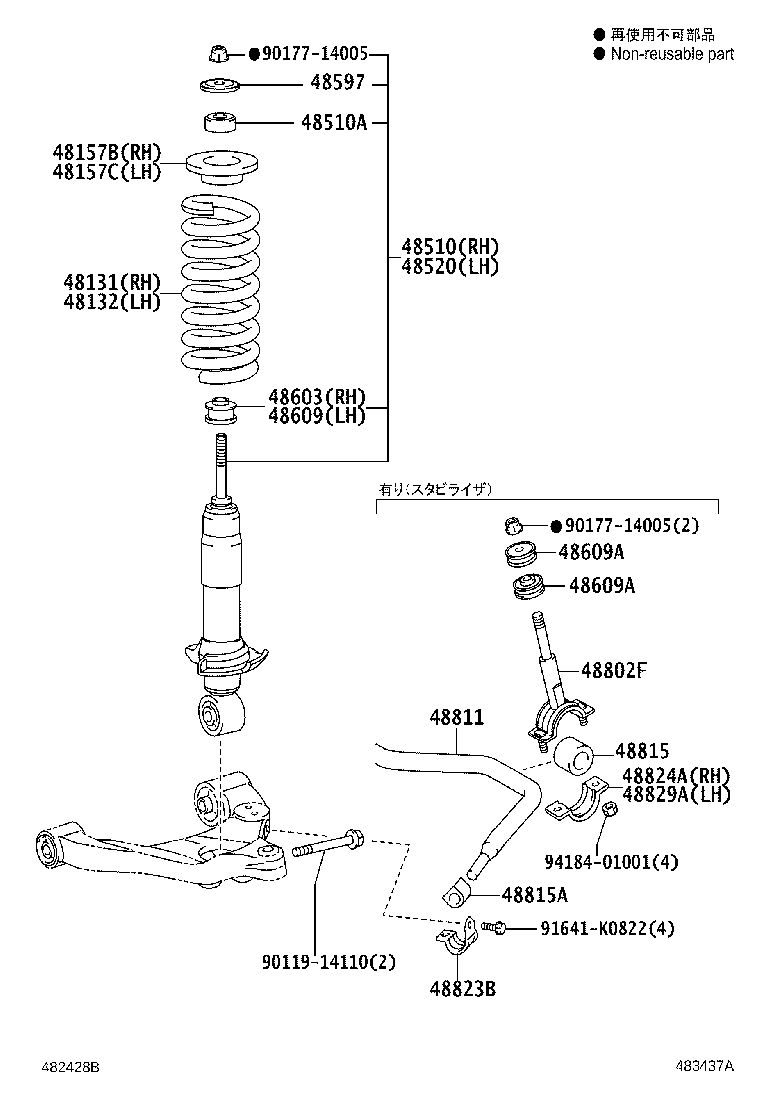

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48510 48510A 48520 48597 48603 48609 48609A 48609A 48802F 48811 48815 48815A 48823B 48824A 48829A 9011914110 9017714005 9017714005 91641K0822 9418401001
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-37180

XKU655;XKC655..T4

 1
48132 - SPRING, FRONT COIL, LH
48131-37170

XKU655;XKC655..T4

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48159-37010

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48159-37010

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80358

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

ﾏｰｸ 48510−37080

 1
48510-80839

XKC605,645,655,XKU605,645,655

ﾏｰｸ 48510−37081

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80358

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

ﾏｰｸ 48510−37080

 1
48510-80839

XKC605,645,655,XKU605,645,655

ﾏｰｸ 48510−37081

 1
48597 - RETAINER, SHOCK ABSORBER CUSHION
48597-37010

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 2
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-37020

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-37020

XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XKC655..T4..IV3;XKU600,650..DM6,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,XKU605,64#,655..IV3

 4
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XKC655..T4..IV3;XKU600,650..DM6,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,XKU605,64#,655..IV3

 4
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37080

XKC605,645,655,XKU605,645,655..IV3

 2
48802-37081

XKC655..T4..IV3;XKC605,645,XKU605,645,655..IV3

 2
48811 - BAR, STABILIZER, FRONT
48811-37090

XKC655..T4..IV3;XKC605,645,XKU605,645,655..IV3

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37070

XKC655..T4..IV3;XKC605,645,XKU605,645,655..IV3

 2
48815A - BUSH, FRONT STABILIZER BAR, NO.2
48815-25060

XKC655..T4..IV3;XKC605,645,XKU605,645,655..IV3

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-25020

XKC655..T4..IV3;XKC605,645,XKU605,645,655..IV3

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-37061

XKC655..T4..IV3;XKU600,650..DM6,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,XKU605,64#,655..IV3

 1
48824-37060

XKU600,650;XKC605,645,655,XKU605,64#,655..IV3

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-37060

XKU600,650;XKC605,645,655,XKU605,64#,655..IV3

 1
48824-37061

XKC655..T4..IV3;XKU600,650..DM6,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,XKU605,64#,655..IV3

 1
Common parts
90119-14110
90177-14005
91641-K0822
94184-01001
