XKU655-TKUMC (2011)
Toyota Dyna/Toyoace Hv
ILLUST NO. 3 OF 5(1107- )XKC605,645,655,XKU605,645,655..DCRTK; (1905- )DCRWD
ｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.2 |
1 | ||
| 51508-37080 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.1 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.2 |
1 | ||
| 51508-37080 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.1 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.1 |
1 | ||
| 51509-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.2 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.1 |
1 | ||
| 51509-37100 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 NO.2 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||
ILLUST NO. 4 OF 5(1107- )DCRTK
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51568D - NUT, HEXAGON | ||||
| 90031-70106 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51568E - NUT, HEXAGON | ||||
| 94151-80800 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKU60#..(DM6,T5)..20T..(IV3,IV5) |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKU60#..(DM6,T5)..20T..(IV3,IV5) |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51569E - NUT, HEXAGON | ||||
| 90031-70106 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
2 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 1 OF 5(1107- )DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VQ40 |
XKU655;XKC655..T4 |
1 | ||
| 51001-3VQ50 |
XKU655;XKC655..T4 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51002-37S80 |
XKC655,XKU655 |
1 | ||
| 51001-3VQ51 |
XKC655,XKU655 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37453 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 82715K - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VN20 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-81200 | ||||
ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||

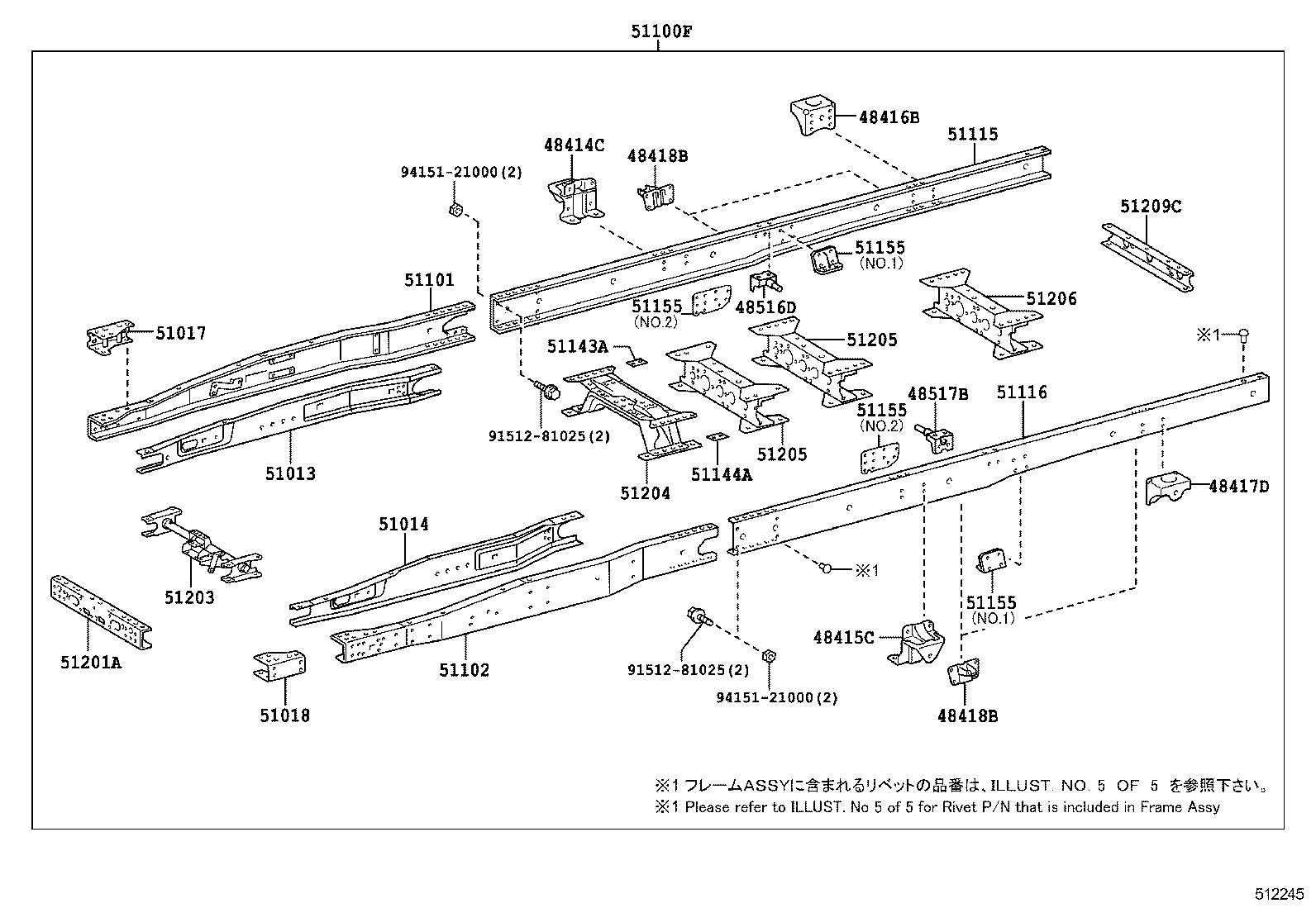

ILLUST NO. 2 OF 5(1107- )XKC655,XKU655..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XKC655,XKU640,65# |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37430 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37410 |
XKC605,645,655,XKU605,645,655 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VQ40 |
XKU655;XKC655..T4 |
1 | ||
| 51001-3VQ50 |
XKU655;XKC655..T4 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51002-37S80 |
XKC655,XKU655 |
1 | ||
| 51001-3VQ51 |
XKC655,XKU655 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37170 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37170 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37520 |
XKU655;XKC655..T4 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51115-37510 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37420 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51108-37430 |
XKU655;XKC655..T4 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37340 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37340 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 51211-37090 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37220 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37301 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XKC655,XKU65# ﾘﾔ |
1 | ||
| 51204-37110 |
XKC655,XKU65# ﾌﾛﾝﾄ |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XKC655,XKU65# ﾘﾔ |
1 | ||
| 51204-37110 |
XKC655,XKU65# ﾌﾛﾝﾄ |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XKU600..IV5;XKC655,XKU640,65# |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 |
1 | ||
| Common parts | ||||
| 91512-81025 | ||||
| 94151-21000 | ||||
