XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

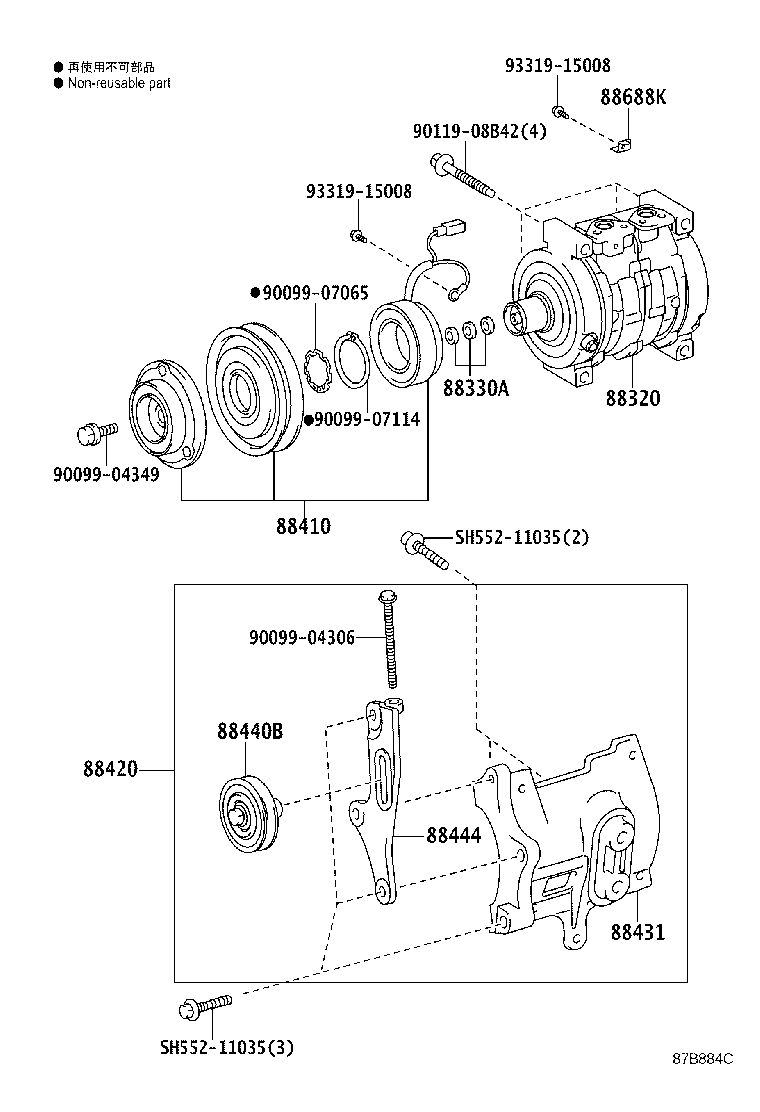

ILLUST NO. 1 OF 2(1107- )DCRTK
ｺﾝﾌﾟﾚｯｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| S8830-51130 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 88420-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| S8834-51540 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 88431-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S1638-21670 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
| SH552-11035 | ||||
ILLUST NO. 2 OF 2(1107- )DCRTK
ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78040 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-E0010 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-E0010 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78260 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78260 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37210 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37183 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37210 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37183 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37210 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37183 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90301-83001 | ||||
| SH552-10816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
ILLUST NO. 2 OF 2(1107- )DCRTK
ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾊﾂﾃﾞﾝﾖｳﾚｲﾄｳｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78040 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-E0010 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78260 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XKC605,645,655,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16636E - SHAFT, IDLER PULLEY | ||||
| 16636-E0110 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 19121B - COVER, DUST PROOF | ||||
| 19121-E0060 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 19121-E0070 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 19121B - COVER, DUST PROOF | ||||
| 19121-E0060 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 19121-E0070 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 21557B - SPACER, NO.1 | ||||
| 21557-E0A40 |
N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 46473A - BRACKET, PULLEY | ||||
| 46473-E0010 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37210 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37183 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37262 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XKU650..T3..30T..IV3;XKU60#,64#..(T3,T4)..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| Common parts | ||||
| 21857-E0030 | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| SH122-01065 | ||||
| SH552-10816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
| SL611-01022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
