Toyota Dyna/toyoace hv XKU650 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
DYNA/TOYOACE HV
XKU650-TKUQC3 (2011)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F AMT

Displacement 2500cc

Power 168 HP (125 kW)

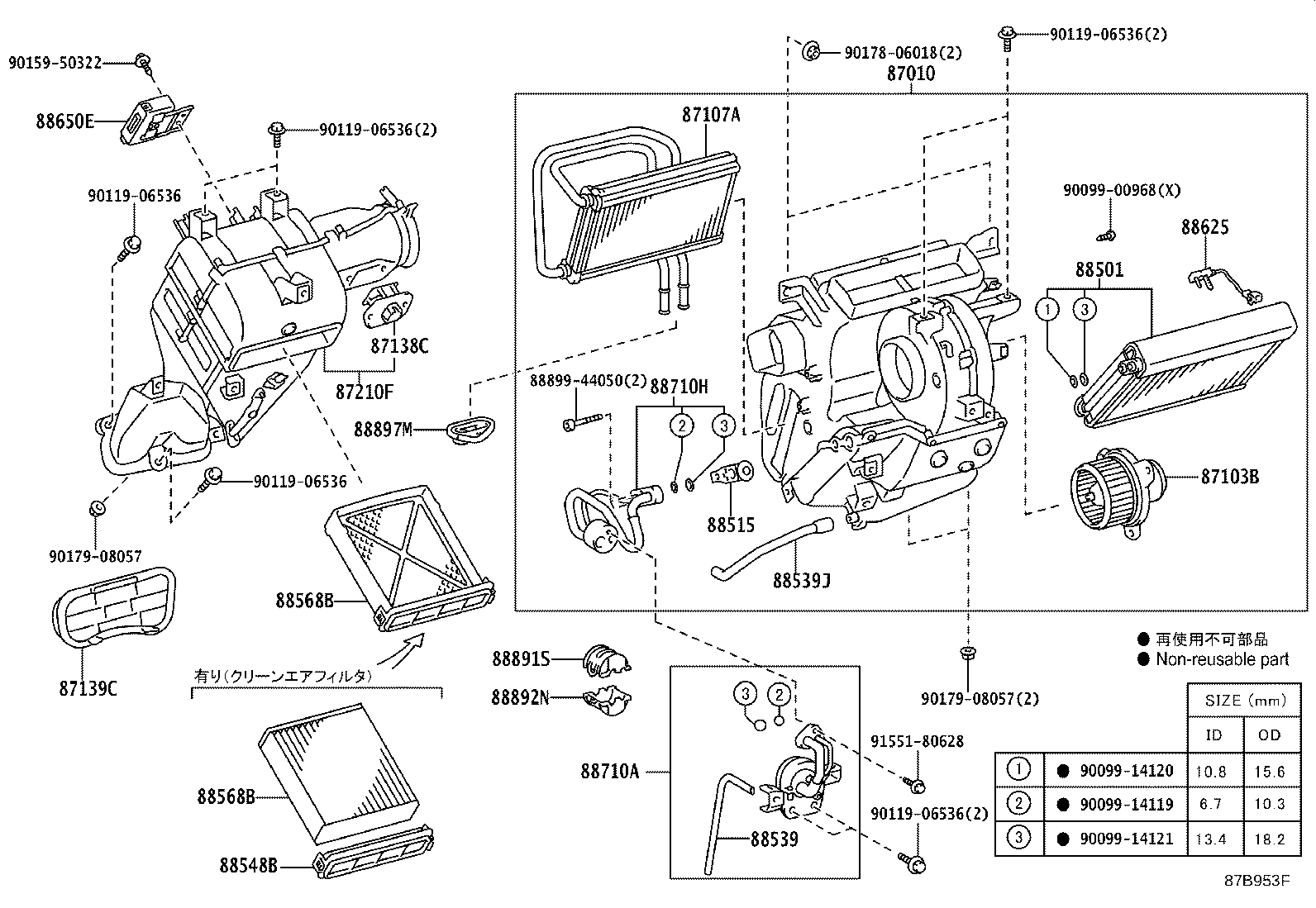

(1107-1408)

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37010	XKC605,645,655,XKU60#,64#,65#	07/2011 - 12/2012	1
87010-37011	XKC605,645,655,XKU60#,64#,65#	01/2013 - 08/2014	1
87010-37220	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37070	XKC605,645,655,XKU60#,64#,65#	07/2011 - 01/2013	1
87107-37071	XKC605,645,655,XKU60#,64#,65#	01/2013 - 08/2014	1
87107-37110	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87138C - RESISTOR, BLOWER
87138-37230	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87139C - FILTER, CLEAN AIR
87441-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87210F - CASE ASSY, AIR DAMPER
87210-37090	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87210-37020	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37110	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88515 - VALVE, COOLER EXPANSION
88515-12130	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37060	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88539J - HOSE, DRAIN COOLER
88539-37080	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88548B - CASE, AIR FILTER
88548-37010	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88548-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568B - FILTER, AIR
88568-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88568-37020	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88568B - FILTER, AIR
88568-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88568-37020	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-37300	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37590	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88710-37760	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88840-37250	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
88710-37690	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88891S - COVER, COOLER, NO.1
88891-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88892N - COVER, COOLER, NO.2
88892-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37030	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
87128-37081	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
Common parts
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90119-06536
90159-50322
90178-06018
90179-08057
91551-80628

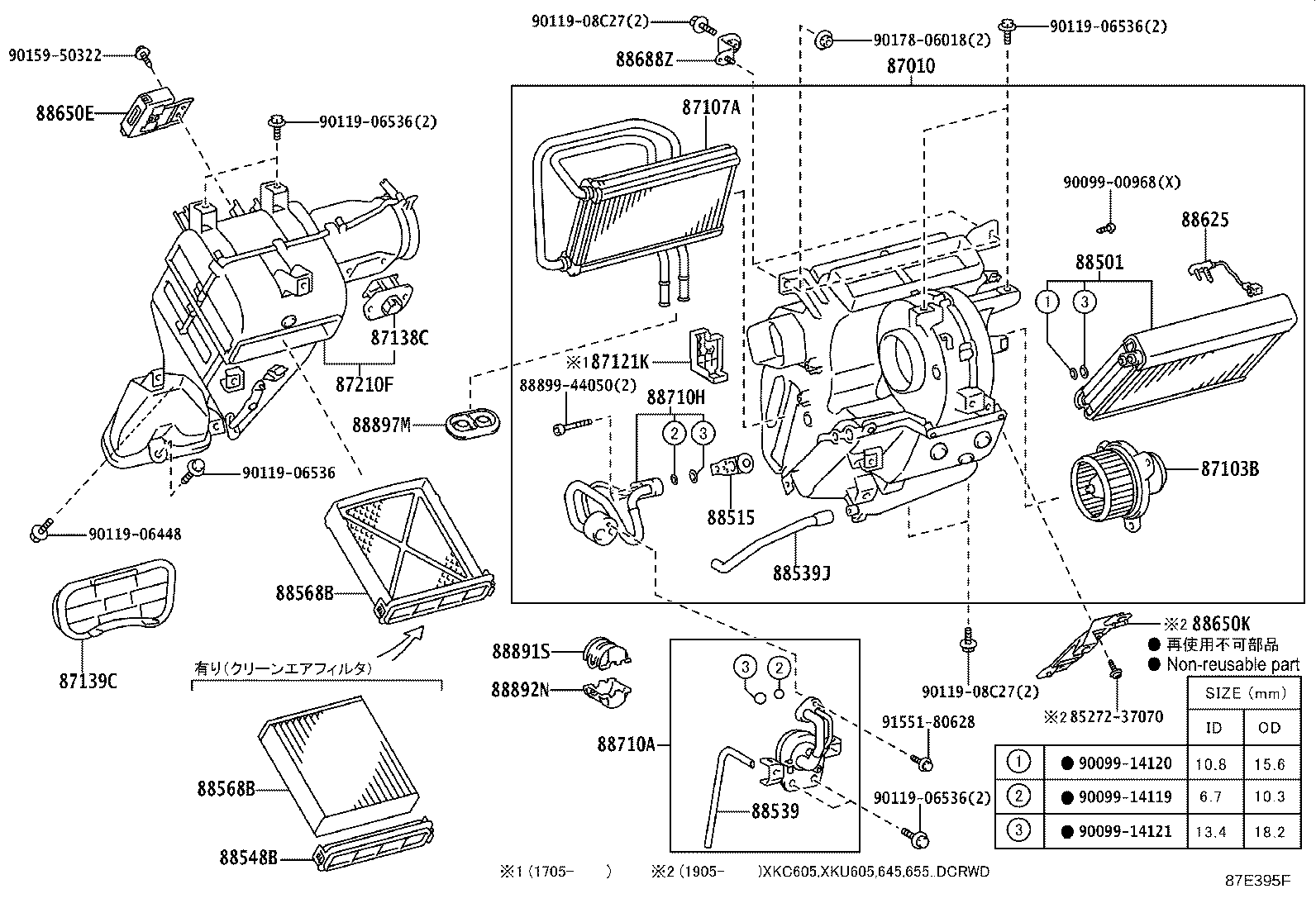

(1408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-37010	XKC605,645,655,XKU60#,64#,65#	07/2011 - 12/2012	1
87010-37011	XKC605,645,655,XKU60#,64#,65#	01/2013 - 08/2014	1
87010-37220	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37070	XKC605,645,655,XKU60#,64#,65#	07/2011 - 01/2013	1
87107-37071	XKC605,645,655,XKU60#,64#,65#	01/2013 - 08/2014	1
87107-37110	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87138C - RESISTOR, BLOWER
87138-37230	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87139C - FILTER, CLEAN AIR
87441-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
87210F - CASE ASSY, AIR DAMPER
87210-37090	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
87210-37020	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37110	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88515 - VALVE, COOLER EXPANSION
88515-12130	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37060	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88539J - HOSE, DRAIN COOLER
88539-37080	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88548B - CASE, AIR FILTER
88548-37010	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88548-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568B - FILTER, AIR
88568-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88568-37020	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88568B - FILTER, AIR
88568-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88568-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88568-37020	XKU655;XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU650..T3..IV3;XKU600..T5..20T..IV3;XKC605,645,655,XKU600,645..(DM6,T4)..20T ｴｱｺﾝ−ﾏﾆｭｱﾙ + 花粉ﾌｨﾙﾀ	07/2011 - 05/2017	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-37300	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88688Z - BRACKET
88688-37N90	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	2
88710A - TUBE ASSY, AIR CONDITIONER
88710-37590	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88710-37760	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88840-37250	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
88710-37690	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
88891S - COVER, COOLER, NO.1
88891-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88892N - COVER, COOLER, NO.2
88892-37020	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
88897M - GROMMET (FOR HEATER PIPE)
87128-37030	XKC605,645,655,XKU60#,64#,65#	07/2011 - 08/2014	1
87128-37081	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	08/2014 - 05/2017	1
Common parts
85272-37070
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90119-06448
90119-06536
90119-08C27
90159-50322
90178-06018
91551-80628

XKU650-TKUQC3 (2011)

(1107-1408)

(1408- )
