XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCRTK

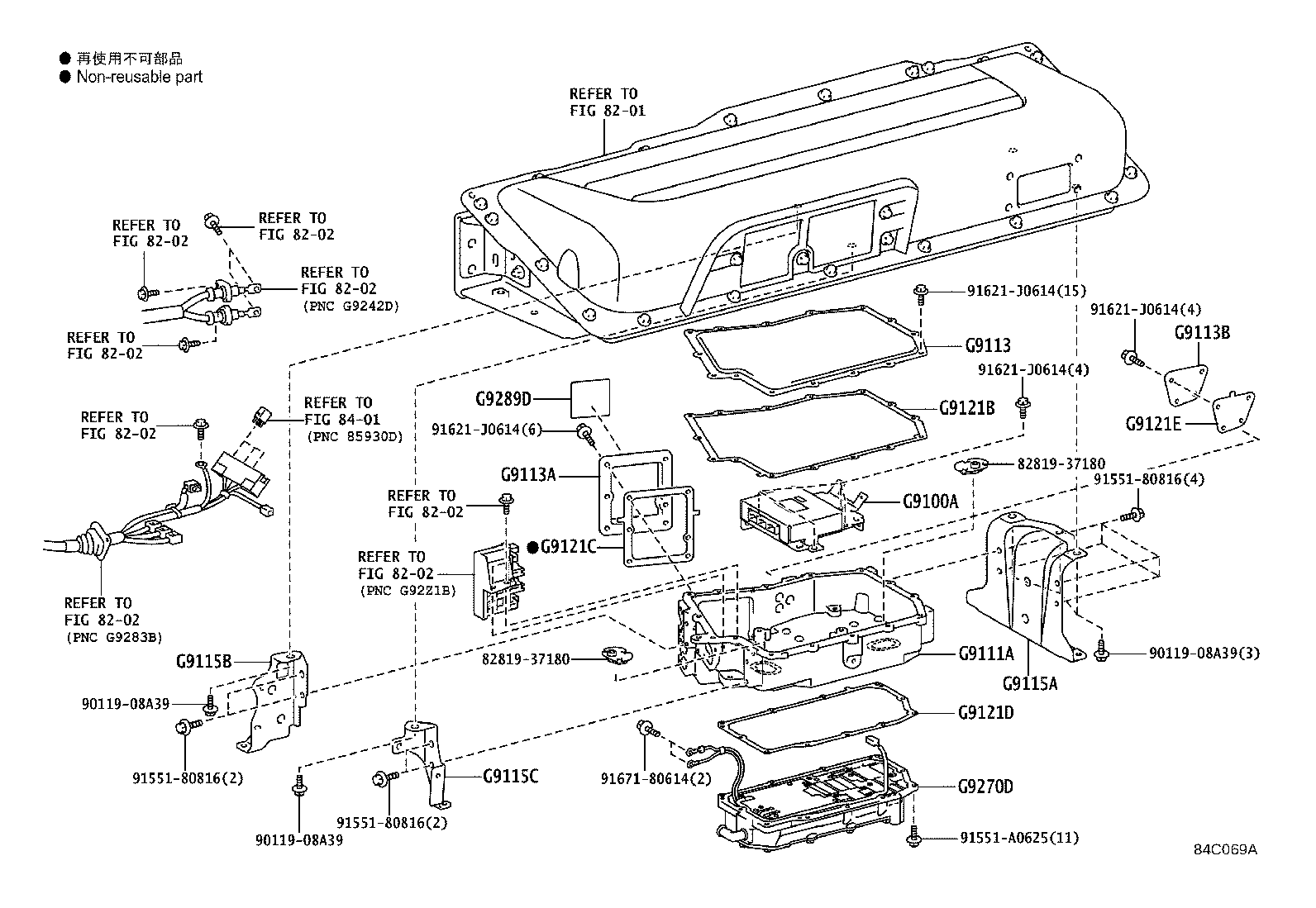

Click highlighted areas on diagram

diagram 8201 8202 8202 8202 8202 8202 8202 8202 8202 8281937180 8281937180 8401 9011908A39 9011908A39 9011908A39 9155180816 9155180816 9155180816 91551A0625 91621J0614 91621J0614 91621J0614 91621J0614 9167180614 G9100A G9111A G9113 G9113A G9113B G9115A G9115B G9115C G9121B G9121C G9121D G9121E G9270D G9289D
Part # Description Qty Price
G9100A - CONTROLLER ASSY, EV UNIT
G9100-37024

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37027

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37025

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37029

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37028

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37022

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37023

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37026

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37020

XKC605,645,655,XKU60#,64#,65#

 1
G9100-37021

XKC605,645,655,XKU60#,64#,65#

 1
G9111A - CASE, EV UNIT CONTROLLER
G9111-37021

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9113 - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER
G9113-37011

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9113A - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.2
G9113-37021

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9113B - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.3
G9113-37030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9115A - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER
G9115-37010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9115B - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.2
G9115-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9115C - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.3
G9115-37030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9121B - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER
G9121-37010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9121C - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.2
G9121-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9121D - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.3
G9121-37040

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9121E - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.4
G9121-37030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9270D - CONVERTER ASSY, EV
G9270-37010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
G9289D - LABEL, BATTERY CAUTION
G9289-37040

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
Common parts
82819-37180
90119-08A39
91551-80816
91551-A0625
91621-J0614
91671-80614
