XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1107- )XKU600,640,650

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ

diagram 89542 89543 9012908007 9155180620 9415180800
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-37070

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
Common parts
90129-08007
91551-80620
94151-80800

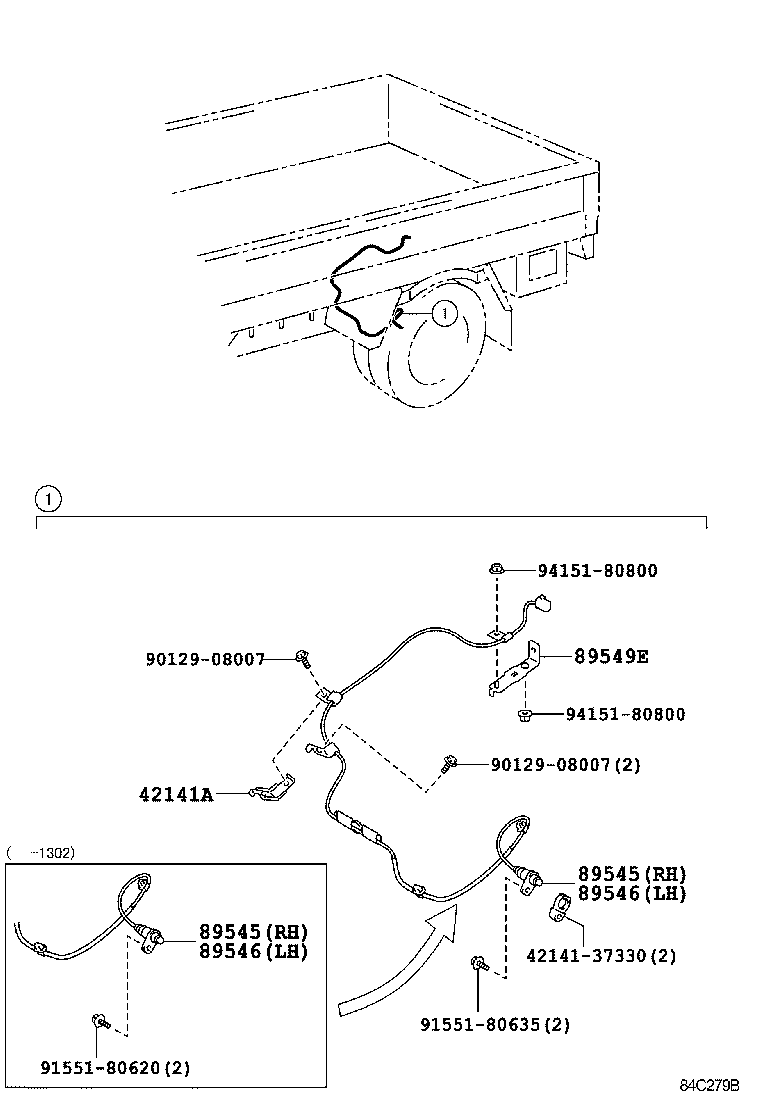

ILLUST NO. 3 OF 3(1107-1805)IV5 ; (1107- )CBU,IV3

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

diagram 4214137330 42141A 89545 89545 89546 89546 89549E 9012908007 9012908007 9155180620 9155180635 9415180800 9415180800
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
89545 - SENSOR, SPEED, REAR RH
89545-37101

XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4

 1
89545-37100

XKC655,XKU640,65#

 1
89545 - SENSOR, SPEED, REAR RH
89545-37101

XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4

 1
89545-37100

XKC655,XKU640,65#

 1
89546 - SENSOR, SPEED, REAR LH
89546-37100

XKC655,XKU640,65#

 1
89546-37101

XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4

 1
89546 - SENSOR, SPEED, REAR LH
89546-37100

XKC655,XKU640,65#

 1
89546-37101

XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4

 1
89549E - BRACKET, SPEED SENSOR
82715-3V690

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
Common parts
42141-37330
90129-08007
91551-80620
91551-80635
94151-80800

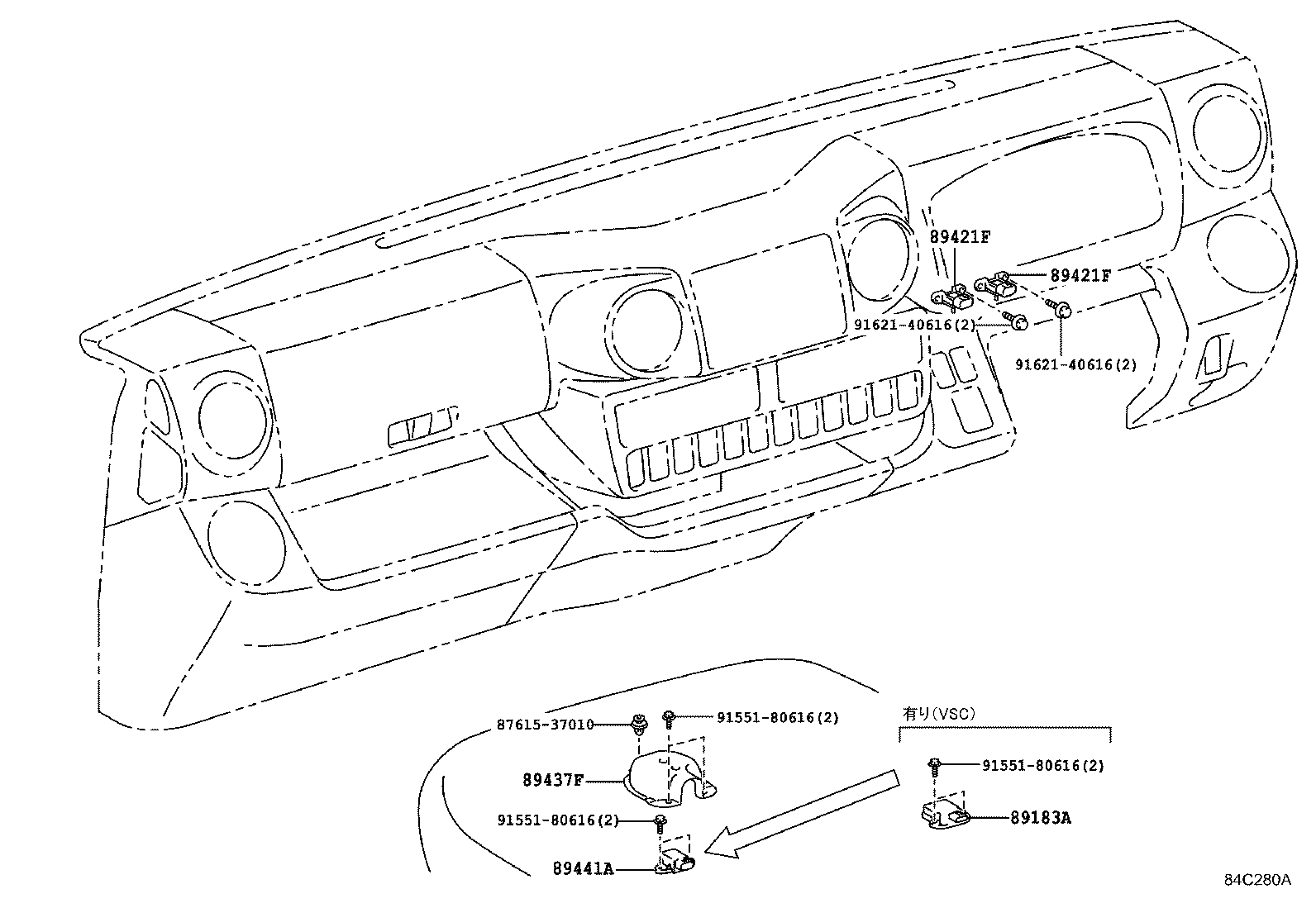

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 8761537010 89183A 89421F 89421F 89437F 89441A 9155180616 9155180616 9155180616 9162140616 9162140616
Part # Description Qty Price
89183A - SENSOR, YAWRATE
89183-37010

XKC605,645,655,XKU60#,64#,65#

VSC−有り

 1
89183-37010

XKC605,645,655,XKU60#,64#,65#

 1
89183-37010

XKC605,645,655,XKU60#,64#,65#

VSC−無し

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030

XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030

XKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4

 2
89437F - COVER, SENSOR
89437-37021

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
89441A - SENSOR, DECELERATION
89441-E0010

XKC605,645,655,XKU60#,64#,65#

VSC−有り

 1
89441-E0010

XKC605,645,655,XKU60#,64#,65#

VSC−無し

 1
89441-E0010

XKC605,645,655,XKU60#,64#,65#

 1
Common parts
87615-37010
91551-80616
91621-40616
