XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

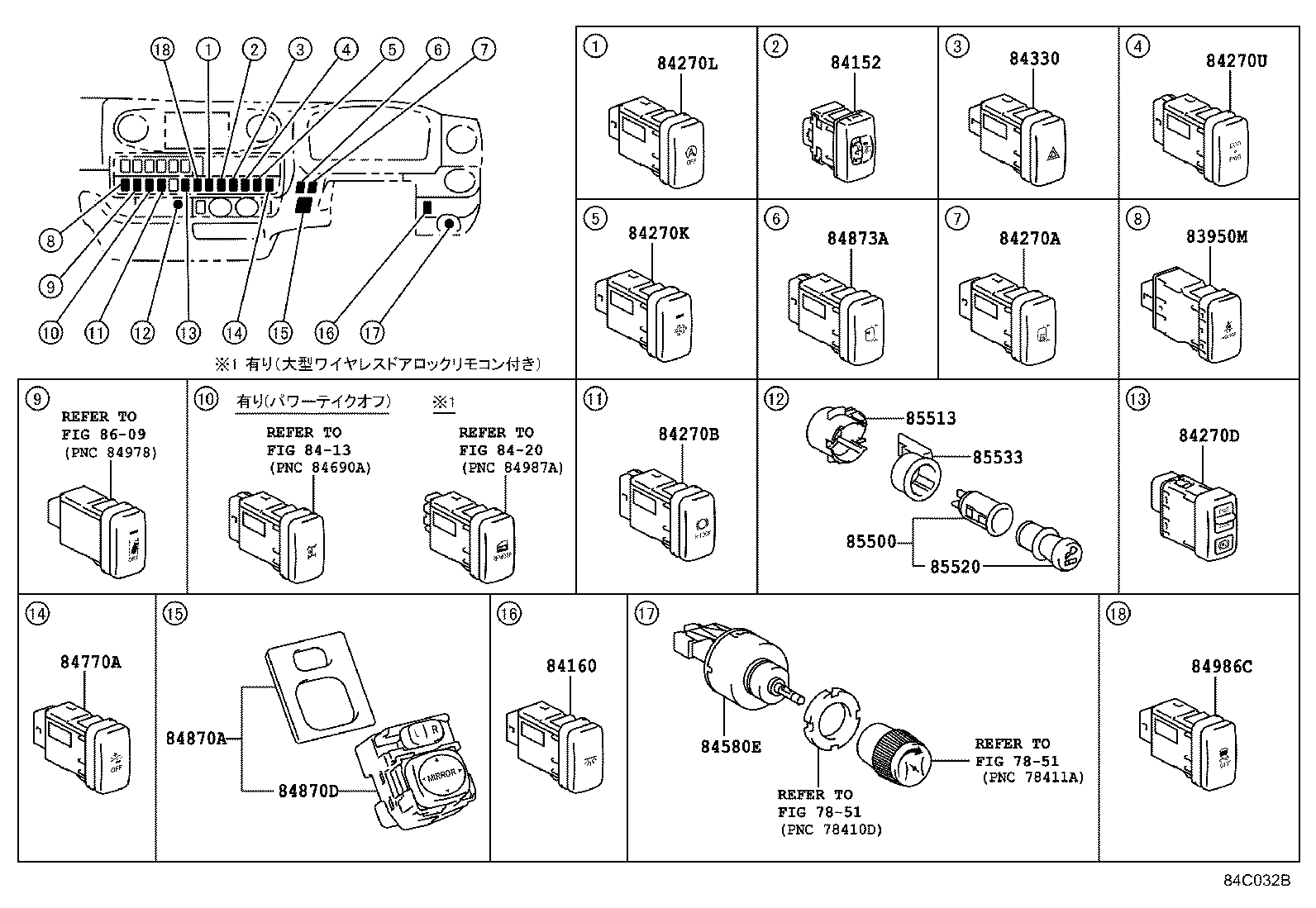

ILLUST NO. 6 OF 9(1107- )DCRTK
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84152-37081 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84152-37060 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84270-37240 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84270U - SWITCH ASSY, ECO POWER | ||||
| 84270-37290 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84870-34010 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84872-52030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM) |
1 | ||
| 84873-37030 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKC605,645,XKU60#,64#..IV3,IV5 ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XKC605,645,655,XKU60#,64#,65# VSC−有り |
1 | ||
| 84270-37300 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||
| 8609 | ||||

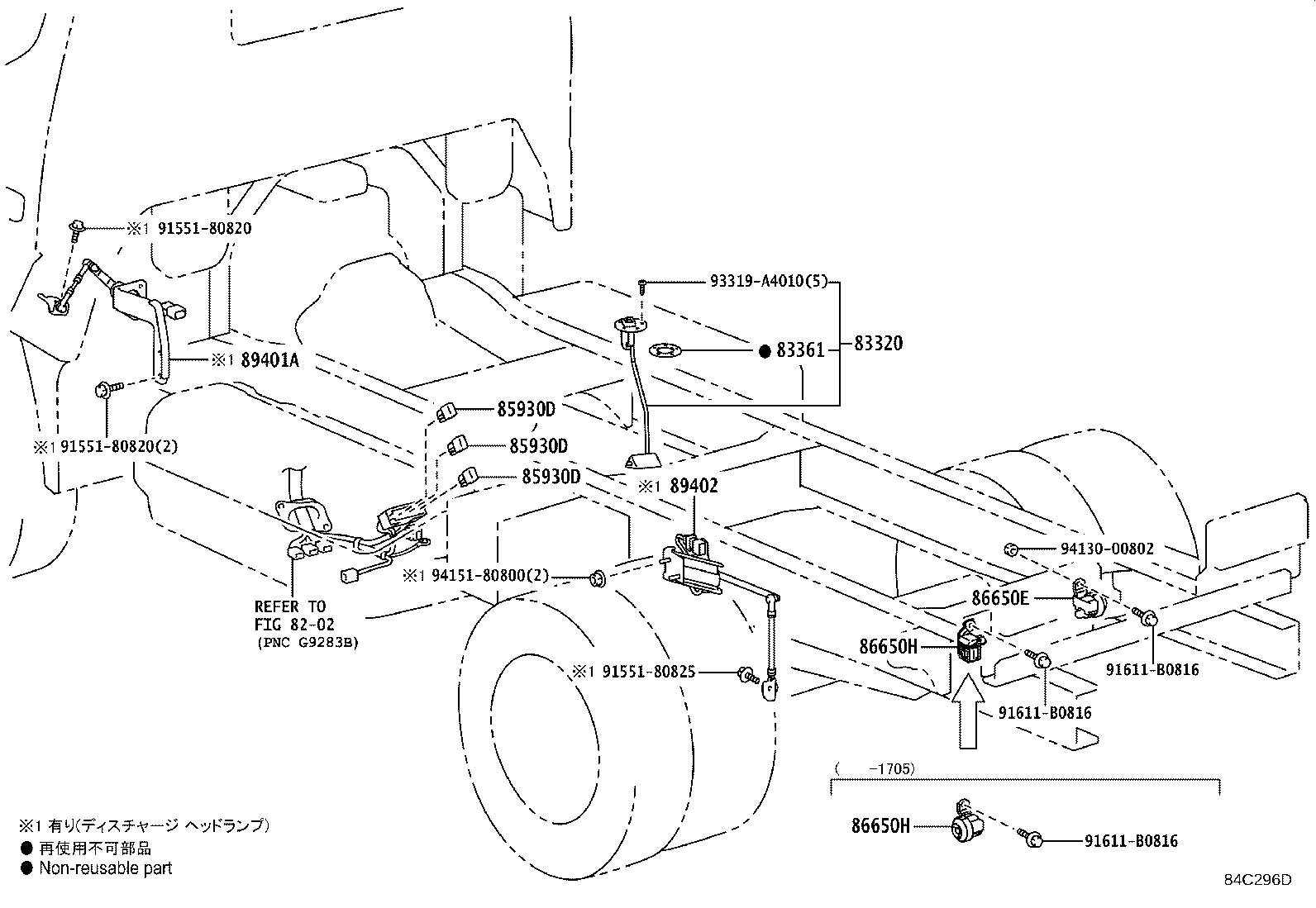

ILLUST NO. 9 OF 9(1107- )DCRTK
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85930D - RELAY | ||||
| 90987-02017 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 85930D - RELAY | ||||
| 90987-02017 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 85930D - RELAY | ||||
| 90987-02017 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

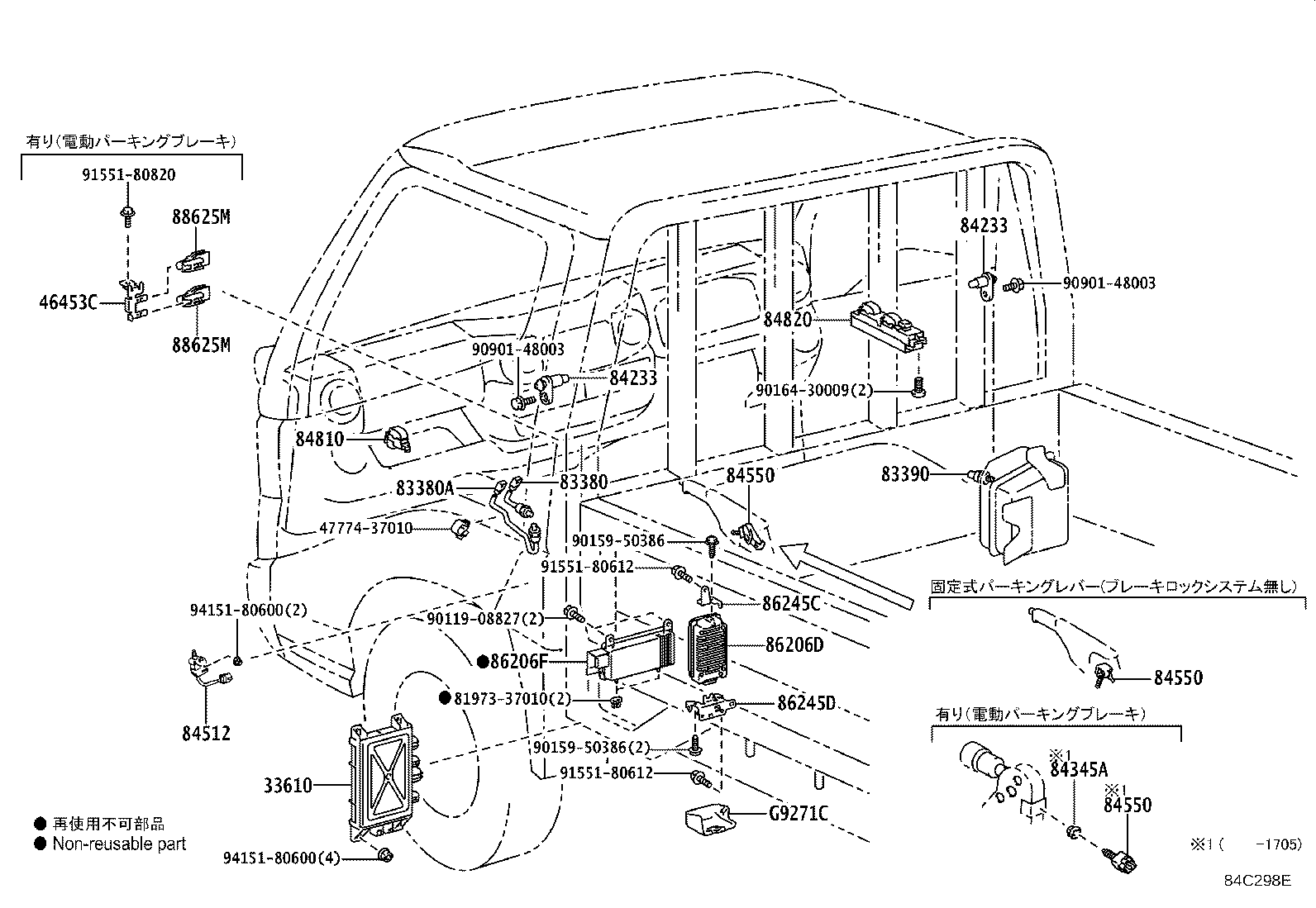

ILLUST NO. 8 OF 9(1107- )DCRTK
ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33610 - CONTROL ASSY, TRANSMISSION, FRONT | ||||
| 33610-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33610-37021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 46453C - BRACKET, HOLDER | ||||
| 46453-37361 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37350 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37360 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37351 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 84345A - ADJUSTER, PARKING BRAKE SWITCH MOUNTING | ||||
| 84345-51010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37041 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84512-37040 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550-37090 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550-37090 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550-37090 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37033 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 86206-37150 |
XKC605,645,655,XKU60#,64#,65# ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 86206-37151 |
XKC605,645,655,XKU60#,64#,65# ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 86206-37131 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 86206F - CONVERTER SUB-ASSY, VOLTAGE, NO.2 | ||||
| 86206-37113 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 86206-37114 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 86245D - BRACKET, VOLTAGE CONVERTER, NO.2 | ||||
| 86245-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| G9271C - COVER, CONVERTER | ||||
| G9271-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 47774-37010 | ||||
| 81973-37010 | ||||
| 90119-08827 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80612 | ||||
| 91551-80820 | ||||
| 94151-80600 | ||||

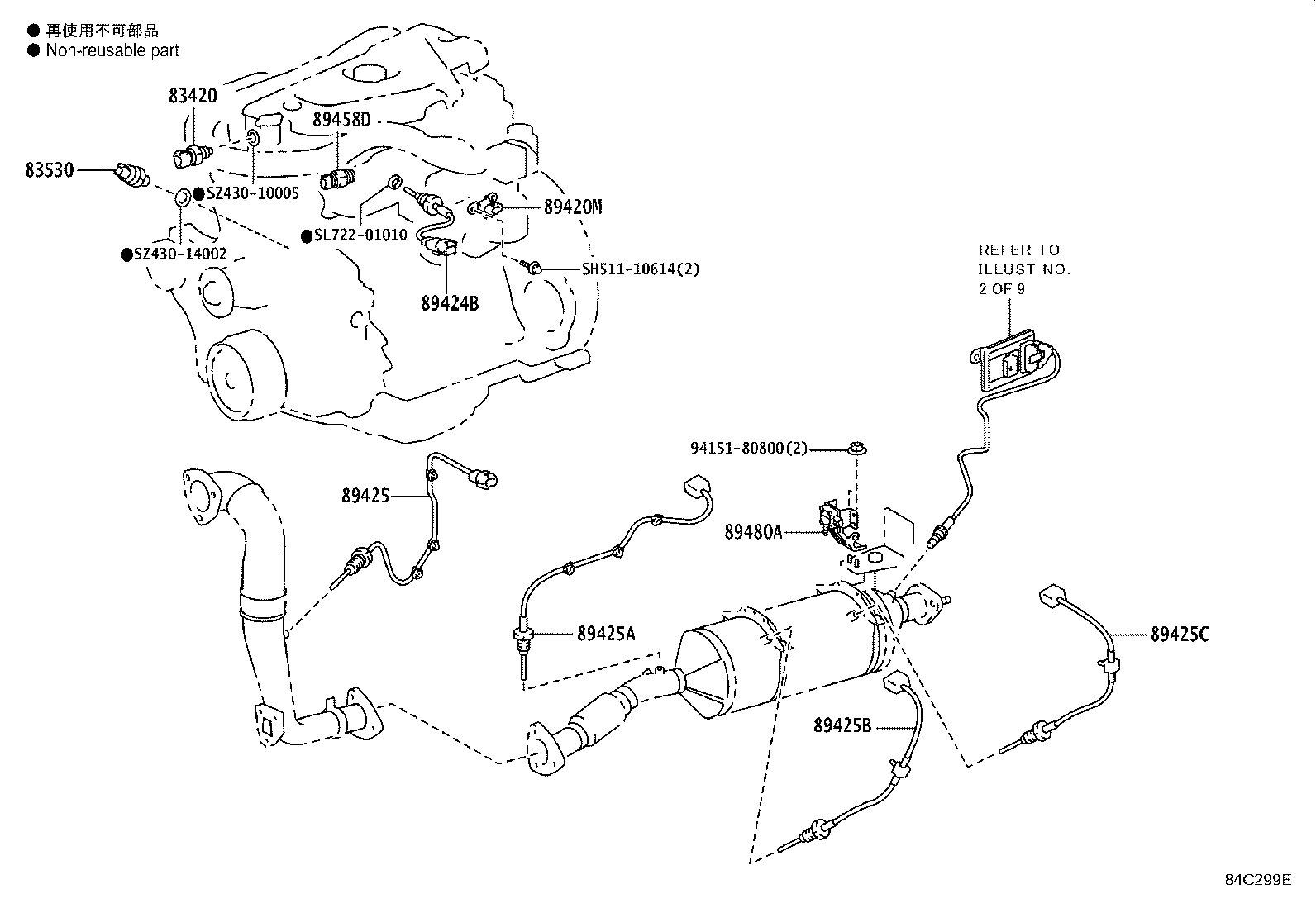

ILLUST NO. 1 OF 9(1107- )DCRTK
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37300 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-37200 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37240 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

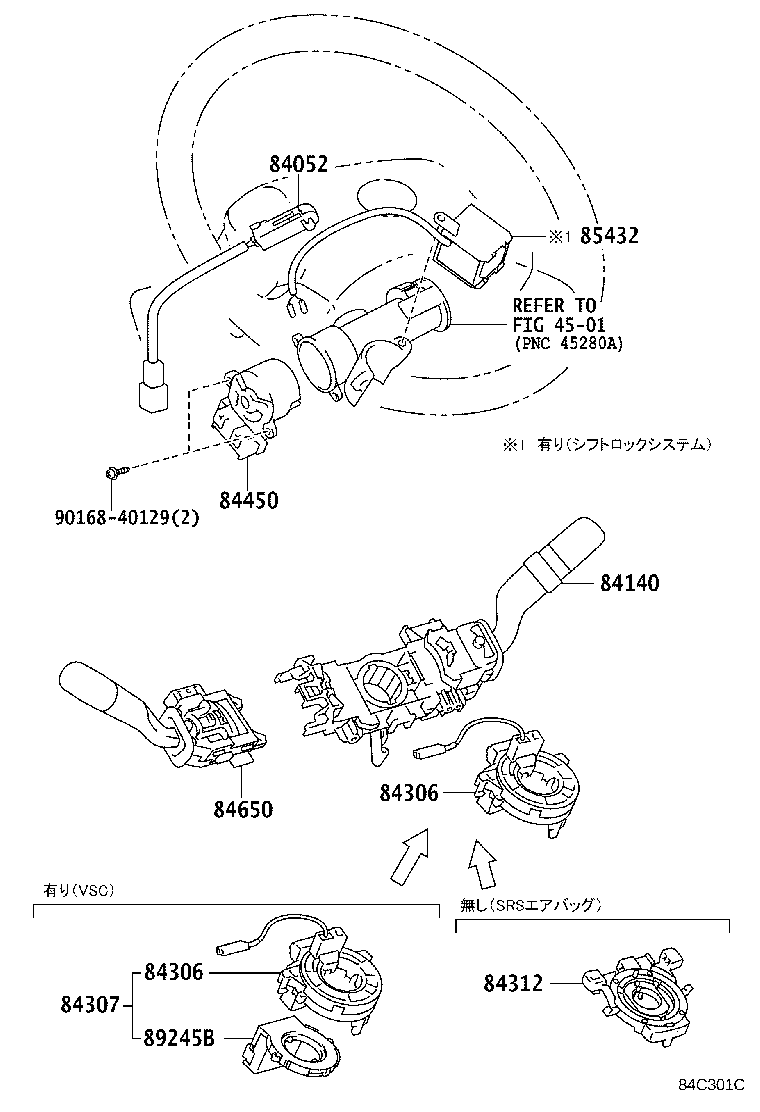

ILLUST NO. 7 OF 9(1107- )DCRTK
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37131 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ) |
1 | ||
| 84140-37121 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84140-37131 |
XKC605,645,655,XKU60#,64#,65# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84306-37030 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84306-37030 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37011 |
XKC605,645,655,XKU60#,64#,65# VSC−有り |
1 | ||
| 84307-37011 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 84652-37300 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ) |
1 | ||
| 85432-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り |
1 | ||
| 85432-37040 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 85432-37040 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89245-12020 |
XKC605,645,655,XKU60#,64#,65# VSC−有り |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

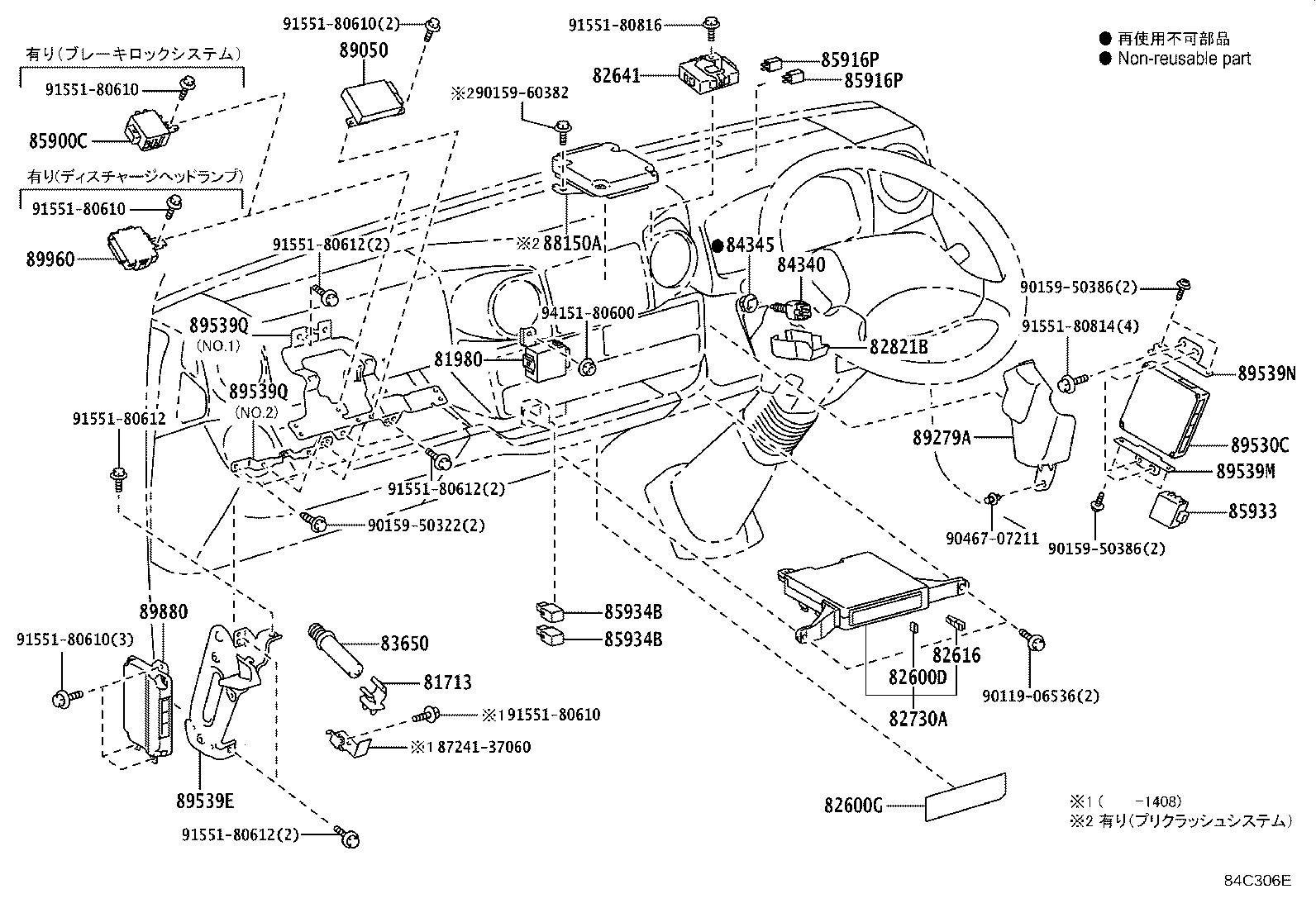

ILLUST NO. 5 OF 9(1107- )DCRTK
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37271 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81980-37270 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37540 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き) |
1 | ||
| 82641-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き) |
1 | ||
| 82641-37120 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き) |
1 | ||
| 82641-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82641-37110 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37040 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82730-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82730-37020 |
XKC605,645,655,XKU60#,64#,65# VSC−有り |
1 | ||
| 82730-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82730-37010 |
XKC605,645,655,XKU60#,64#,65# VSC−無し |
1 | ||
| 82730-37021 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-37250 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り |
1 | ||
| 85933-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ) |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37021 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37023 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37025 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37024 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37022 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37026 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 55641-37021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37242 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37246 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37290 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37248 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37291 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37247 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37243 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37245 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37244 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37321 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37320 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89530-37292 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37130 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89539-37031 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-37041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37060 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.2 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.2 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.2 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37060 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.2 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37061 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.1 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸﾘﾓｺﾝ付き),NO.2 |
1 | ||
| 89539-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.2 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37021 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37011 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37202 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89880-37201 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89880-37270 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37203 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37204 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37261 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37370 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37261 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37260 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37271 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37371 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37262 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37262 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37372 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37272 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37205 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37620 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37273 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37460 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37741 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37740 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37621 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37461 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37622 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65# ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37462 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37742 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| Common parts | ||||
| 87241-37060 | ||||
| 90119-06536 | ||||
| 90159-50322 | ||||
| 90159-50386 | ||||
| 90159-60382 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94151-80600 | ||||

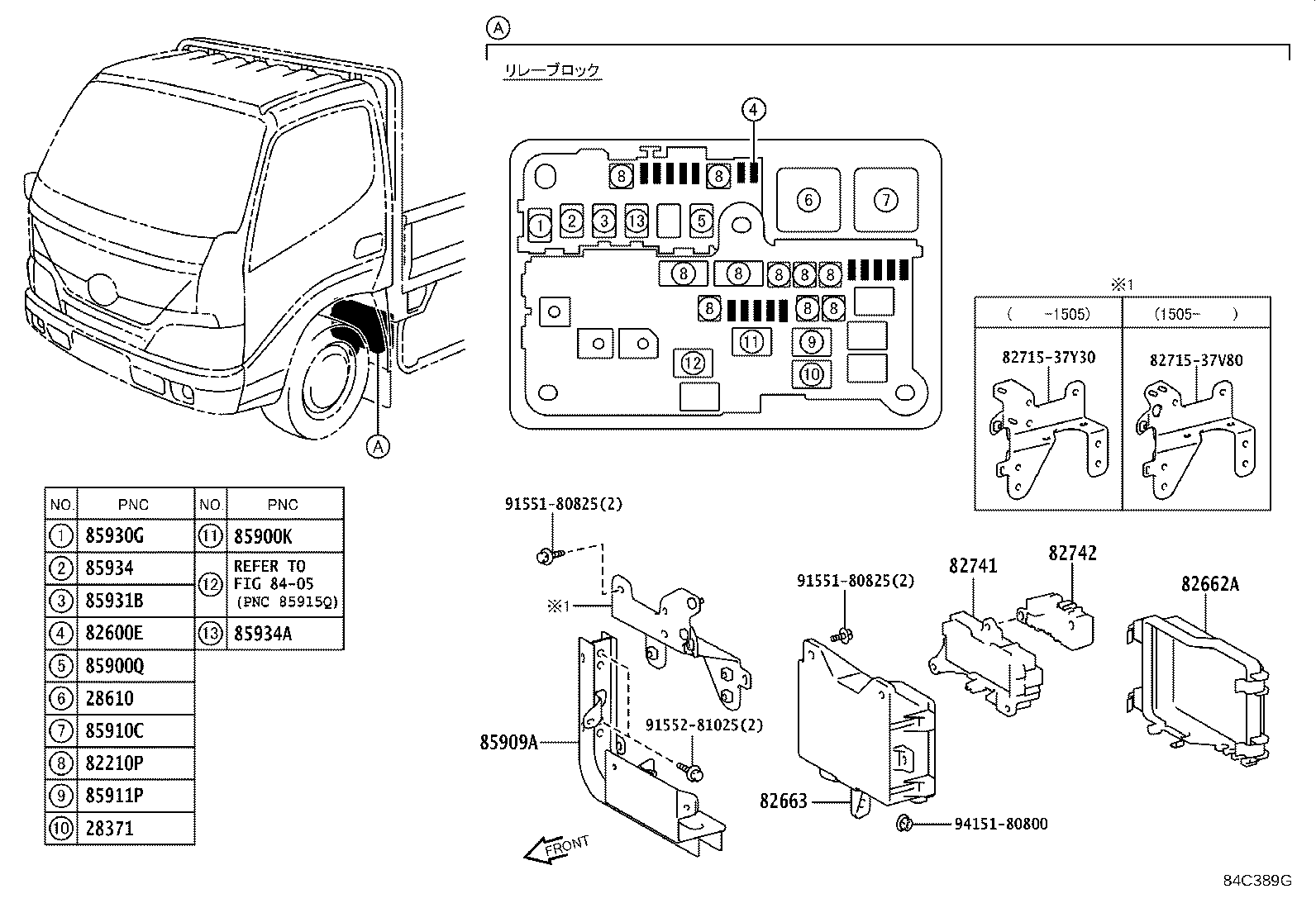

ILLUST NO. 4 OF 9(1107- )DCRTK
ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 寒冷地仕様 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 120A,ｵｽ端子,白 |
1 | ||
| 90982-08282 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 50A,ﾒｽ端子,赤,ﾏｰｸ 32V |
1 | ||
| 90982-08203 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 80A,ｵｽ端子,黒 |
1 | ||
| 82627-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 20A,ﾒｽ端子 |
1 | ||
| 90982-08280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 30A,ﾒｽ端子,桃,ﾏｰｸ 32V |
1 | ||
| 90982-08294 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08301 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08296 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 50A,ﾒｽ端子,赤,ﾏｰｸ 58V |
1 | ||
| 90982-08295 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37460 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82662-37462 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82662-37461 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37131 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 82663-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 85900Q - RELAY, TAIL | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37240 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 82715-37V80 | ||||
| 82715-37Y30 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8405 | ||||

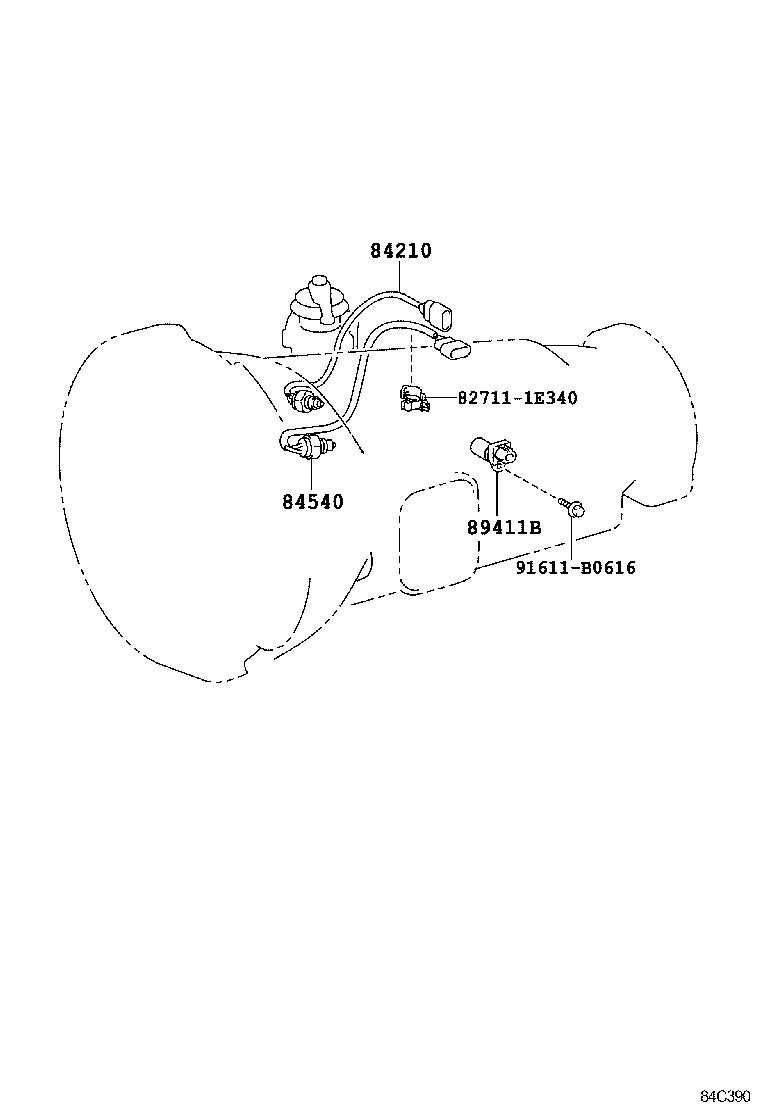

ILLUST NO. 3 OF 9(1107- )DCRTK
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89411B - SENSOR, SPEED | ||||
| 89411-E0060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91611-B0616 | ||||
ILLUST NO. 2 OF 9(1107- )XKC605,655,XKU60#,65#..DCRTK
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37350 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-37021 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 89463-37022 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
