XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
Production
Jul 2011
-
May 2017
Engine
N04C
Transmission
5F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

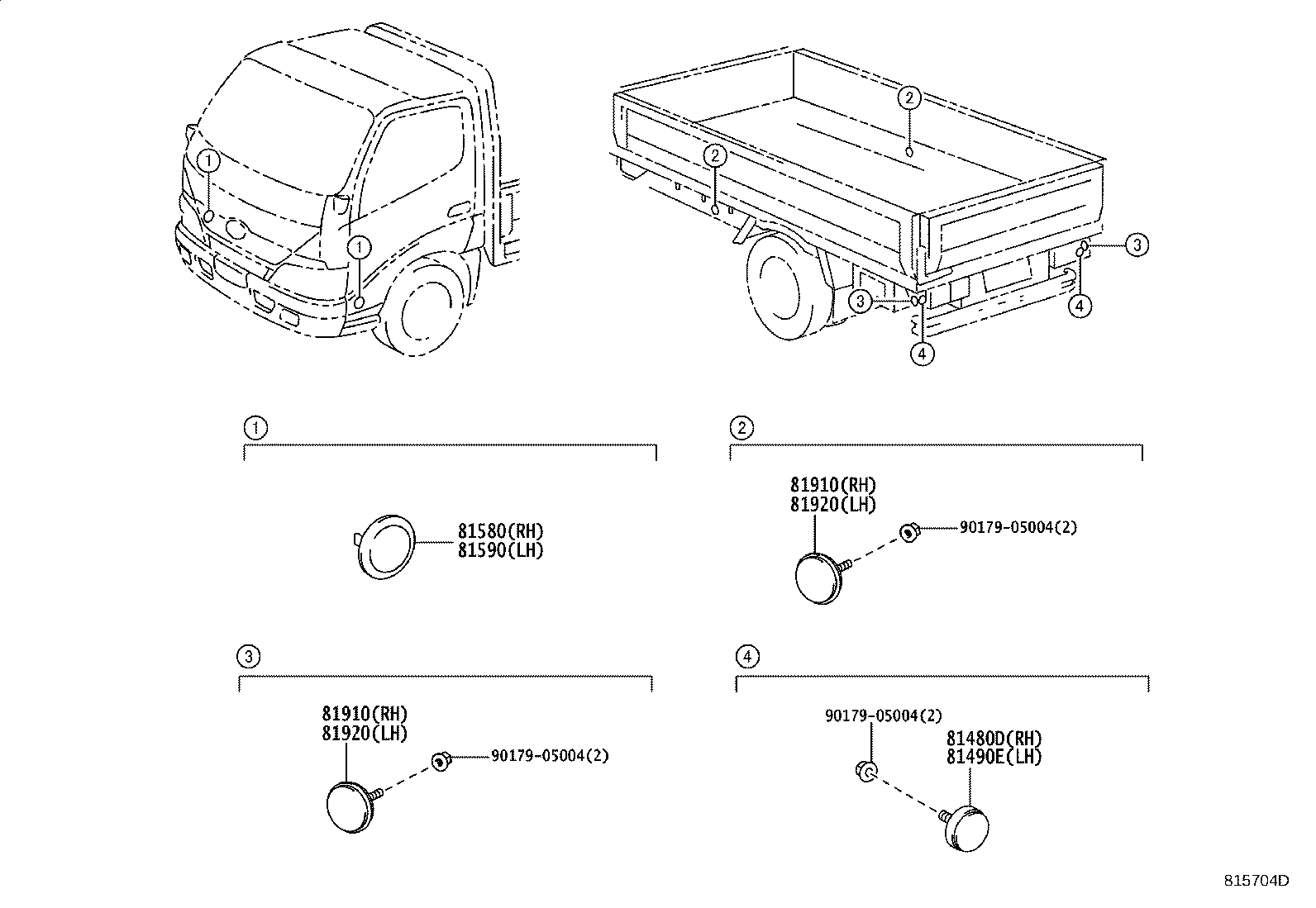

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81580 - REFLECTOR ASSY, REFLEX SIDE, RH | ||||
| 81580-37031 |
XKU65#..IV3;XKC655..T4..IV3 |
1 | ||
| 81580-37031 |
XKU65#..IV3;XKC655..T4..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
1 | ||
| 81590 - REFLECTOR ASSY, REFLEX SIDE, LH | ||||
| 81590-37031 |
XKU65#..IV3;XKC655..T4..IV3 |
1 | ||
| 81590-37031 |
XKU65#..IV3;XKC655..T4..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
1 | ||
| 81910 - REFLECTOR ASSY, REFLEX, RH | ||||
| 81910-37070 |
XKC655,XKU65#..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
2 | ||
| 81910-37070 |
XKC655,XKU65#..IV3 |
2 | ||
| 81910 - REFLECTOR ASSY, REFLEX, RH | ||||
| 81910-37070 |
XKC655,XKU65#..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
2 | ||
| 81910-37070 |
XKC655,XKU65#..IV3 |
2 | ||
| 81920 - REFLECTOR ASSY, REFLEX, LH | ||||
| 81910-37070 |
XKC655,XKU65#..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
2 | ||
| 81910-37070 |
XKC655,XKU65#..IV3 |
2 | ||
| 81920 - REFLECTOR ASSY, REFLEX, LH | ||||
| 81910-37070 |
XKC655,XKU65#..IV3 ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−無し |
2 | ||
| 81910-37070 |
XKC655,XKU65#..IV3 |
2 | ||
| Common parts | ||||
| 90179-05004 | ||||
