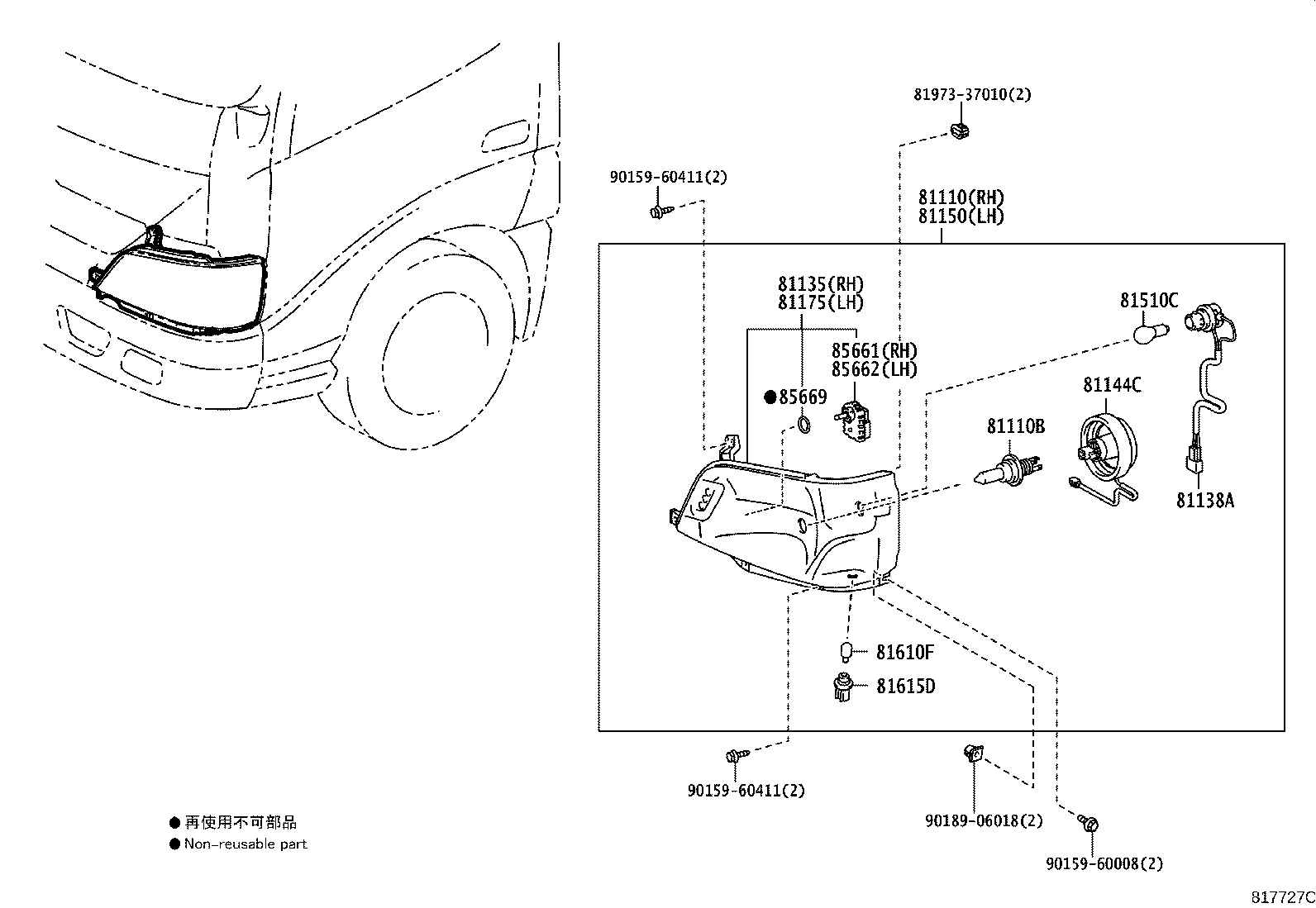

XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107-1605)
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37355 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81110-37354 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-17019 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 75/70W,*HAL *WH |
2 | ||
| 81119 - SCREW, HEADLAMP | ||||
| 90075-02415 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
6 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37353 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81130-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81138A - SOCKET & WIRE, HEADLAMP | ||||
| 81138-37351 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 81125-37630 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81138-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37356 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81150-37355 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37354 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-25233 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81166 - PLATE, HEADLAMP, LH | ||||
| 81166-25233 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37354 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81193-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 90075-02415 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15023 |
XKC605,645,655,XKU60#,64#,65# 24V 21W |
2 | ||
| 90981-16014 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 21W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-12015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 90075-60077 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90075-60020 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85661-B2010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85661-B2010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90159-60008 | ||||
| 90159-60411 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||
| 90467-10005C0 | ||||

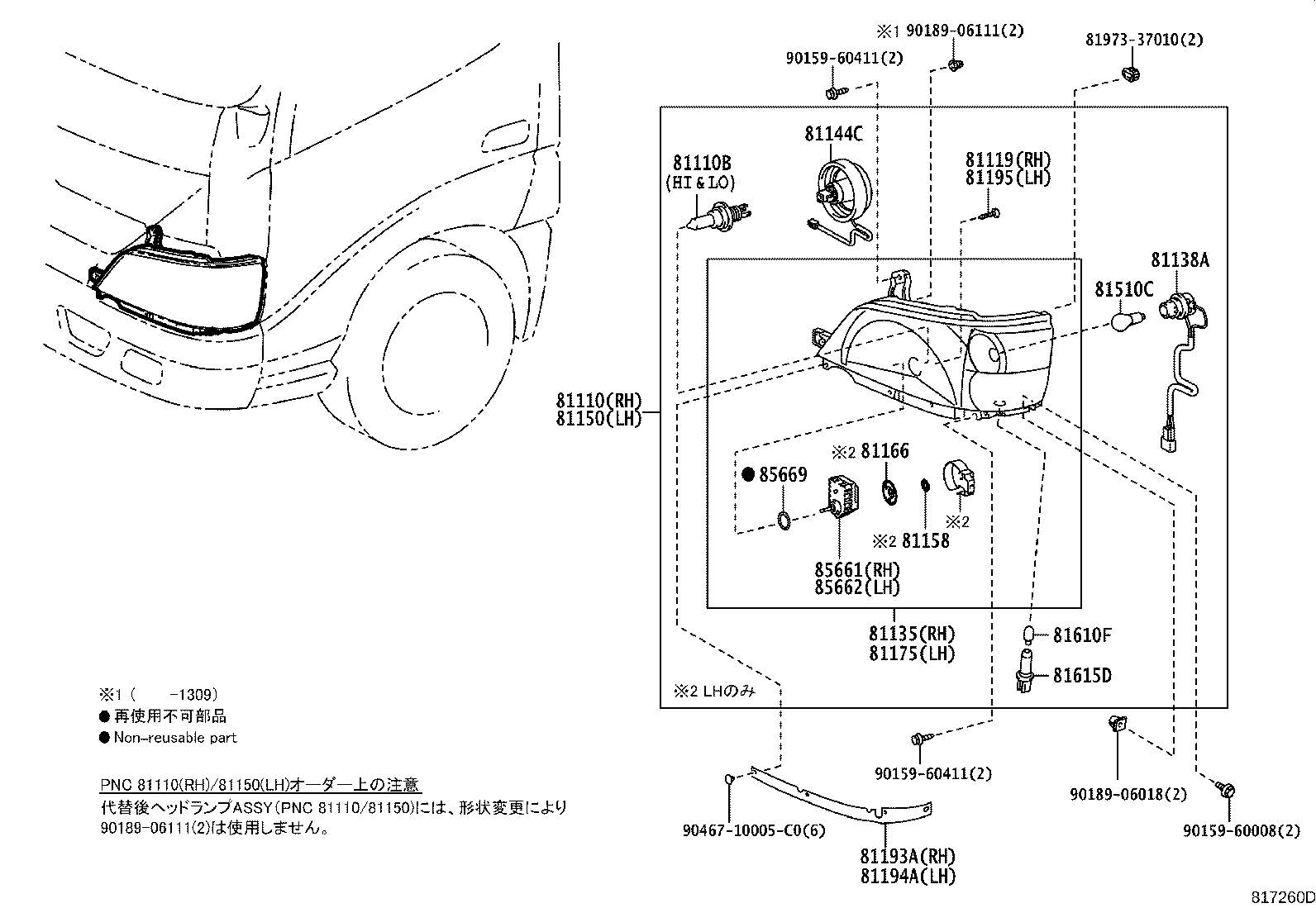

(1605- )DCRTK
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110-37355 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81110-37354 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-17019 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 75/70W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81130-37353 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81130-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81138A - SOCKET & WIRE, HEADLAMP | ||||
| 81138-37351 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 81125-37630 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81138-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37356 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81150-37355 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37354 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81150-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-37353 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37350 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37352 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37351 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37630 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 81170-37354 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15023 |
XKC605,645,655,XKU60#,64#,65# 24V 21W |
2 | ||
| 90981-16014 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 21W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-12015 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 24V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 90075-60077 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 90075-60020 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85661-B2010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 85661-B2010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90159-60008 | ||||
| 90159-60411 | ||||
| 90189-06018 | ||||
