Manufacturers Home
Toyota
JP
DYNA/TOYOACE HV
XKU650-TKUQC3 (2011)
7554 - TOOL BOX & LICENSE PLATE BRACKET

XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F AMT

Displacement 2500cc

Power 168 HP (125 kW)

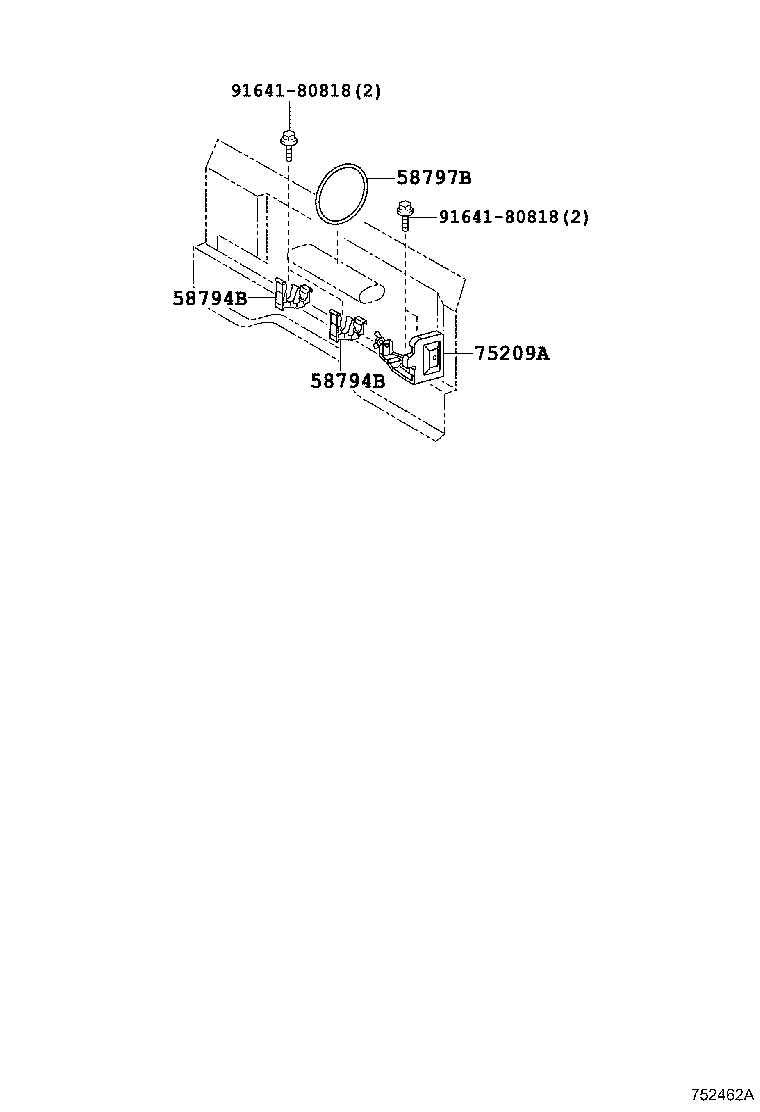

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

ｼﾞｬｯｷﾎﾙﾀﾞ

diagram

Part #	Description	Period	Qty	Price
58794B - SUPPORT, JACK HANDLE
58794-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	2
58794B - SUPPORT, JACK HANDLE
58794-37010	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	2
58797B - BAND, JACK CLAMP
58797-37030	XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4	07/2011 - 05/2017	1
75209A - BASE SUB ASSY, JACK HOLDER
75209-37011	XKU600..IV5;XKU600,640..30T;XKU650..T4..30T;XKU650..T3..30T..IV3	07/2011 - 05/2017	1
Common parts
91641-80818

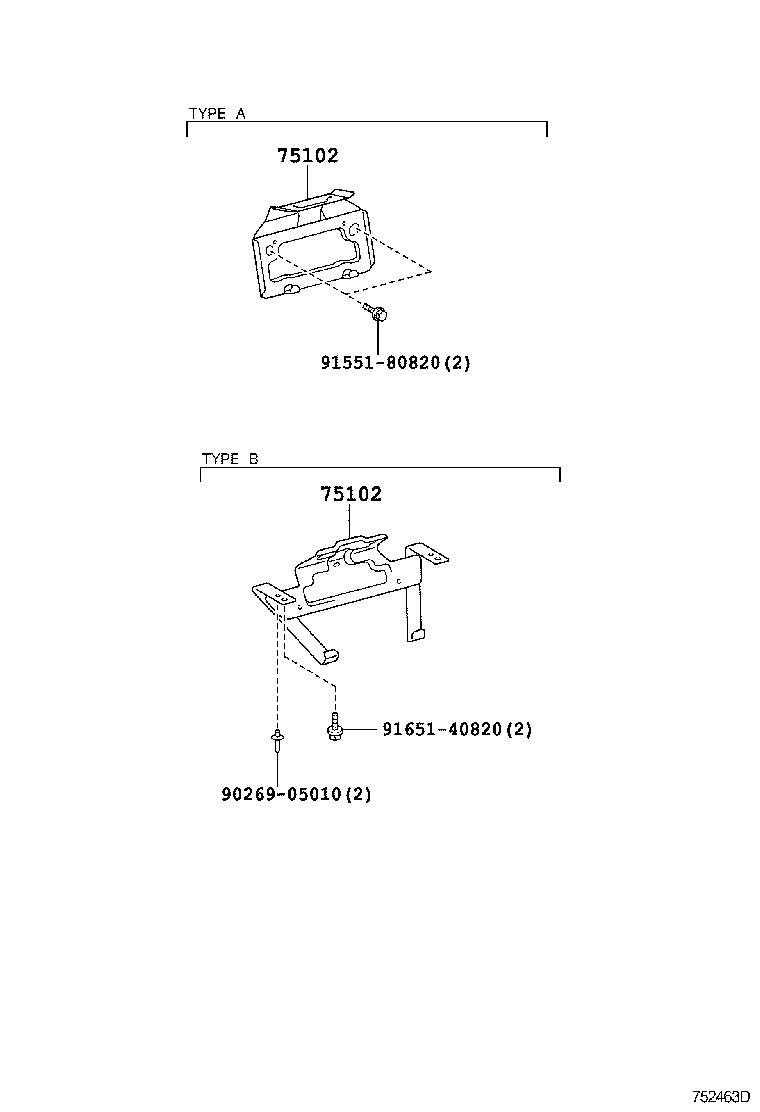

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

ﾗｲｾﾝｽﾌﾟﾚｰﾄ,ﾘﾌﾚｯｸｽﾘﾌﾚｸﾀﾌﾞﾗｹｯﾄ

diagram

Part #	Description	Period	Qty	Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37050	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-37050	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
Common parts
90269-05010
91551-80820
91651-40820

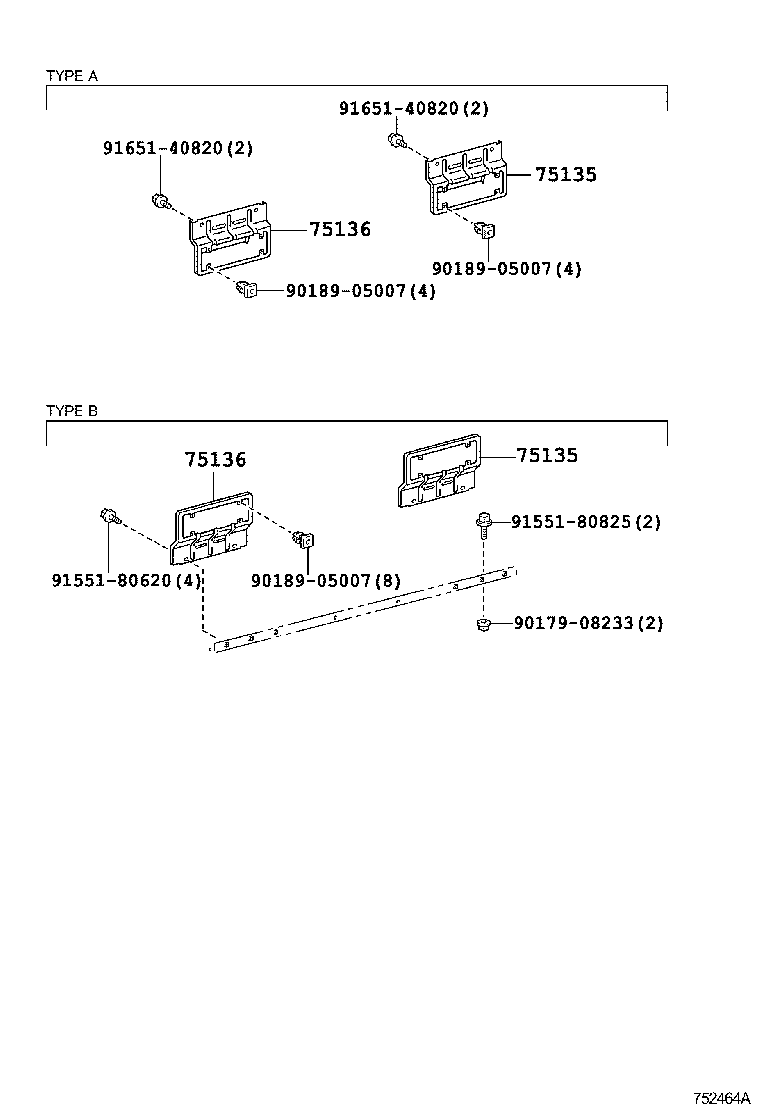

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

ﾃｰﾙﾗﾝﾌﾟﾌﾞﾗｹｯﾄ

diagram

Part #	Description	Period	Qty	Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	07/2011 - 05/2013	1
75105-37071	XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	06/2013 - 05/2017	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37070	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	07/2011 - 05/2013	1
75105-37071	XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	06/2013 - 05/2017	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	07/2011 - 05/2013	1
75105-37071	XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	06/2013 - 05/2017	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37070	XKC605,645,655,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	07/2011 - 05/2013	1
75105-37071	XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3,IV5 TYPE B:ｲﾗｽﾄ参照	06/2013 - 05/2017	1
Common parts
90179-08233
90189-05007
91551-80620
91551-80825
91651-40820
