XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

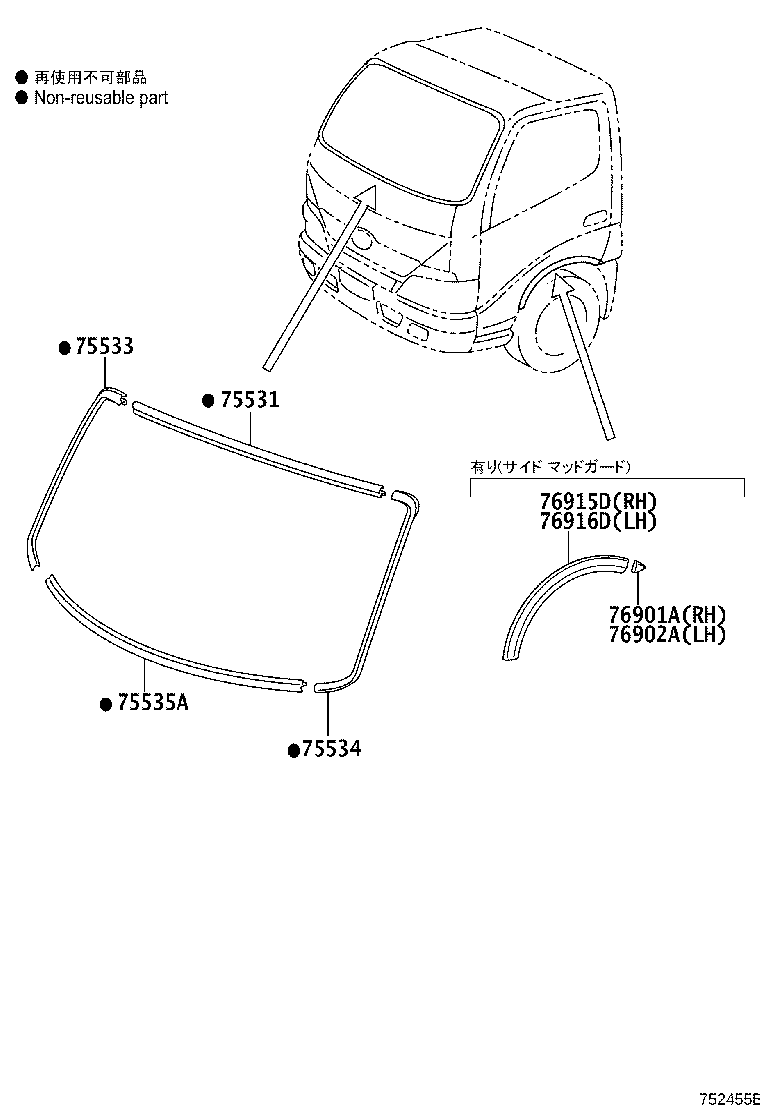

Click highlighted areas on diagram

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ-ｾｯﾁｬｸ ﾀｲﾌﾟ

diagram 75531 75533 75534 75535A 76901A 76902A 76915D 76916D
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-89112

XKC605,645,655,XKU60#,64#,65#

塗装不要

 1
75531-89112

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75531-89112

XKC605,645,655,XKU60#,64#,65#

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-89112

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75533-89112

XKC605,645,655,XKU60#,64#,65#

 1
75533-89112

XKC605,645,655,XKU60#,64#,65#

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-89110

XKC605,645,655,XKU60#,64#,65#

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75534-89110

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75534-89110

XKC605,645,655,XKU60#,64#,65#

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75535-89106

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75535-89106

XKC605,645,655,XKU60#,64#,65#

ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)

 1
75535-89106

XKC605,645,655,XKU60#,64#,65#

 1
