XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKC655,XKU65#..DCRTK

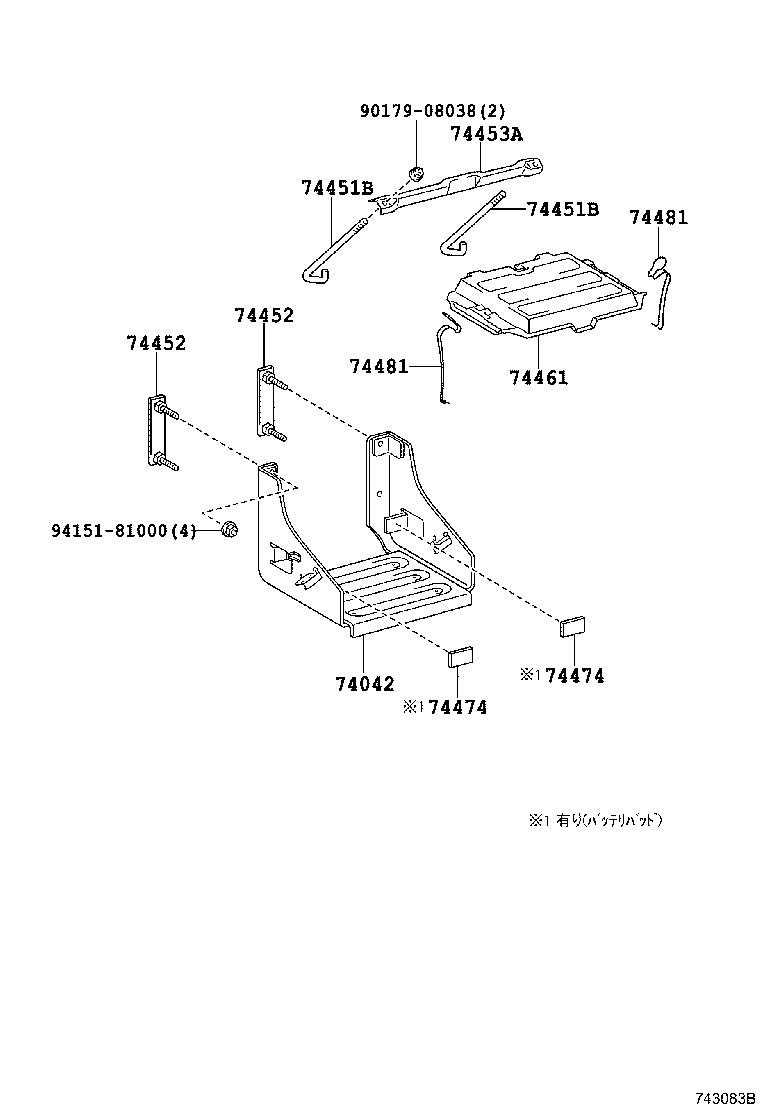

Click highlighted areas on diagram

diagram 74042 74451B 74451B 74452 74452 74453A 74461 74474 74474 74481 74481 9017908038 9415181000
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-37300

XKC655,XKU65#..IV3

ﾊﾞｯﾃﾘ−95D31L X 2

 1
74042-37280

XKC655,XKU65#

 1
74042-37281

XKC655,XKU65#

 1
74451B - BOLT, BATTERY CLAMP
74451-37011

XKC605,645,655,XKU60#,64#,65#

 2
74451B - BOLT, BATTERY CLAMP
74451-37011

XKC605,645,655,XKU60#,64#,65#

 2
74452 - PLATE, BATTERY SET
74452-37031

XKU655;XKU650..T3..IV3;XKC655,XKU650..T4

 2
74452 - PLATE, BATTERY SET
74452-37031

XKU655;XKU650..T3..IV3;XKC655,XKU650..T4

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
74461 - COVER, BATTERY
74461-37030

XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3,IV5

ﾊﾞｯﾃﾘ−95D31L X 2

 1
74461-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
74474 - PAD, BATTERY
74475-36040

XKU655;XKU650..T3..IV3;XKC655,XKU650..T4

 2
74474 - PAD, BATTERY
74475-36040

XKU655;XKU650..T3..IV3;XKC655,XKU650..T4

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
Common parts
90179-08038
94151-81000
