XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.1 |
1 | ||
| 73135-35020B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.2 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.1 |
1 | ||
| 73135-35020B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.2 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.1 |
1 | ||
| 73135-35020B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.2 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.1 |
1 | ||
| 73135-35020B2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1#,NO.2 |
1 | ||
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 73150-37120B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020P2 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-34030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-37400B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37290B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37401B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37291B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37411B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37300B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37410B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37411B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37300B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37410B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37411B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37300B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37410B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37411B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37300B1 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37420B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37421B0 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37310B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37410B0 |
XKC605,645,655,XKU60#,64#,65# GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37311B1 |
XKC605,645,655,XKU60#,64#,65# SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-37230B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-37180B7 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 73240-37161B6 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73240-37300B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240-37290B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-37180B7 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 73240-37161B6 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| 73240-37300B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240-37290B0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73252A - COVER, SHOULDER BELT ANCHOR ADJUST | ||||
| 73252-37011B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90105-11041 | ||||
| 90109-11027 | ||||
| 90109-11048 | ||||
| 90179-11010 | ||||
| 90468-05017 | ||||
| 91512-B1020 | ||||
| 91551-80614 | ||||

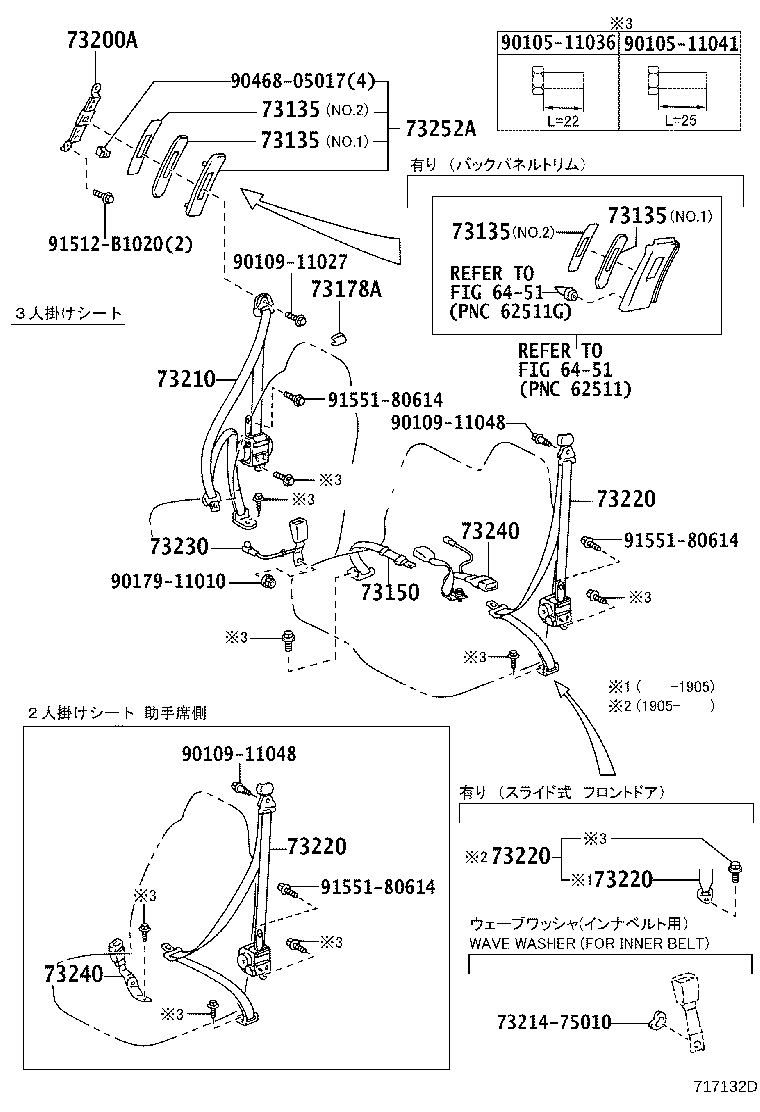

| Linked diagrams | ||||
| 6451 | ||||
