XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
ILLUST NO. 3 OF 3(1107- )
ｴｱﾛﾙｰﾌﾗｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-37030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63185-37040 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-37030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63186-37040 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63403 - DECK SUB-ASSY, ROOF RACK | ||||
| 63403-37030 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63403-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63460 - RACK ASSY, ROOF | ||||
| 63460-37041 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ***,ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63460-37021 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ***,ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63467-37020 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63467-37020 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63468-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-37011 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌﾗｯｸ−有り |
1 | ||
| 63495-37021 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ﾙｰﾌﾗｯｸ−有り |
1 | ||

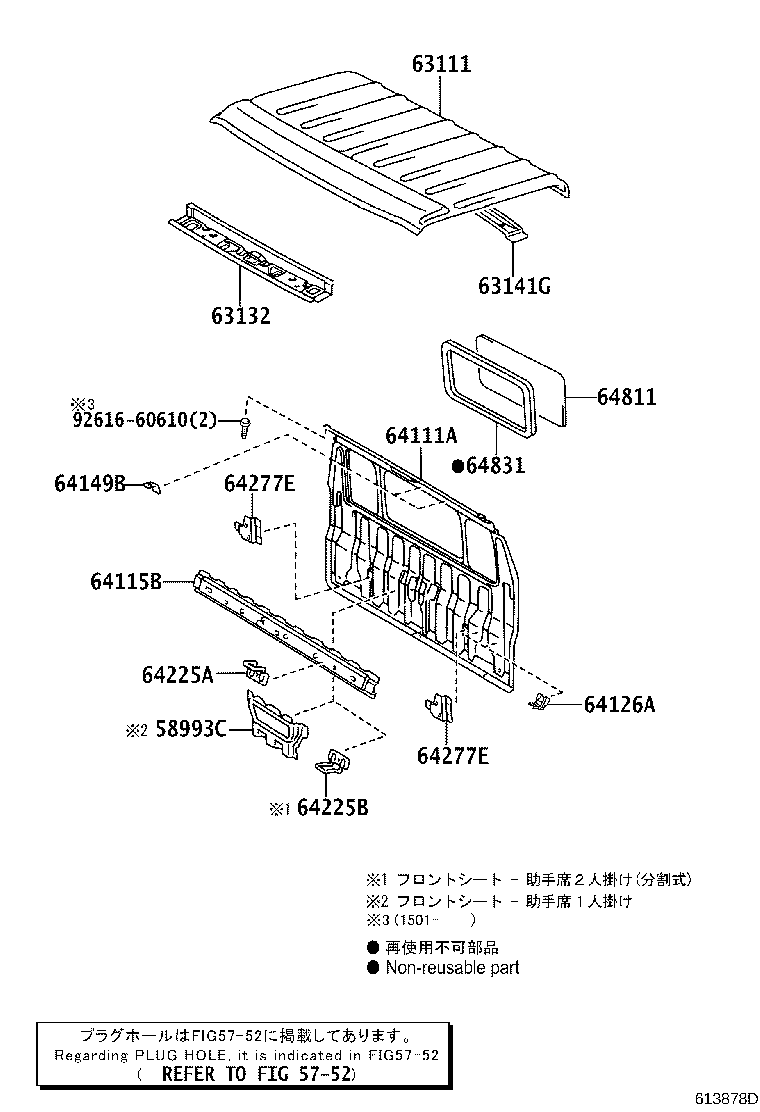

ILLUST NO. 1 OF 3(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58993C - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37131 |
XKU600..IV5;XKC645,655,XKU64#,65# |
1 | ||
| 63111-37120 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63111-37311 |
XKC645,655,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ) |
1 | ||
| 63111-37132 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) |
1 | ||
| 63111-37312 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ) |
1 | ||
| 63111-37312 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ(ﾎﾜｲﾄ)) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-37071 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63132-37082 |
XKU600..IV5;XKC645,655,XKU64#,65# |
1 | ||
| 63132-37072 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63132-37083 |
XKU600..IV5;XKC645,655,XKU64#,65# |
1 | ||
| 63132-37073 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63132-37084 |
XKU600..IV5;XKC645,655,XKU64#,65# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37060 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63141-37070 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37374 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 64111-37376 |
XKC605,645,655,XKU60#,64#,65# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37375 |
XKC605,645,655,XKU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37124 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 64115-25040 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 64126A - BRACKET, UPPER BACK PANEL, LH | ||||
| 64125-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 64149B - RETAINER, BACK PANEL HEADREST | ||||
| 64149-37010 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 64225B - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37030 |
XKC605,645,655,XKU60#,64#,65# ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37041 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 92616-60610 | ||||
| Linked diagrams | ||||
| 5752 | ||||

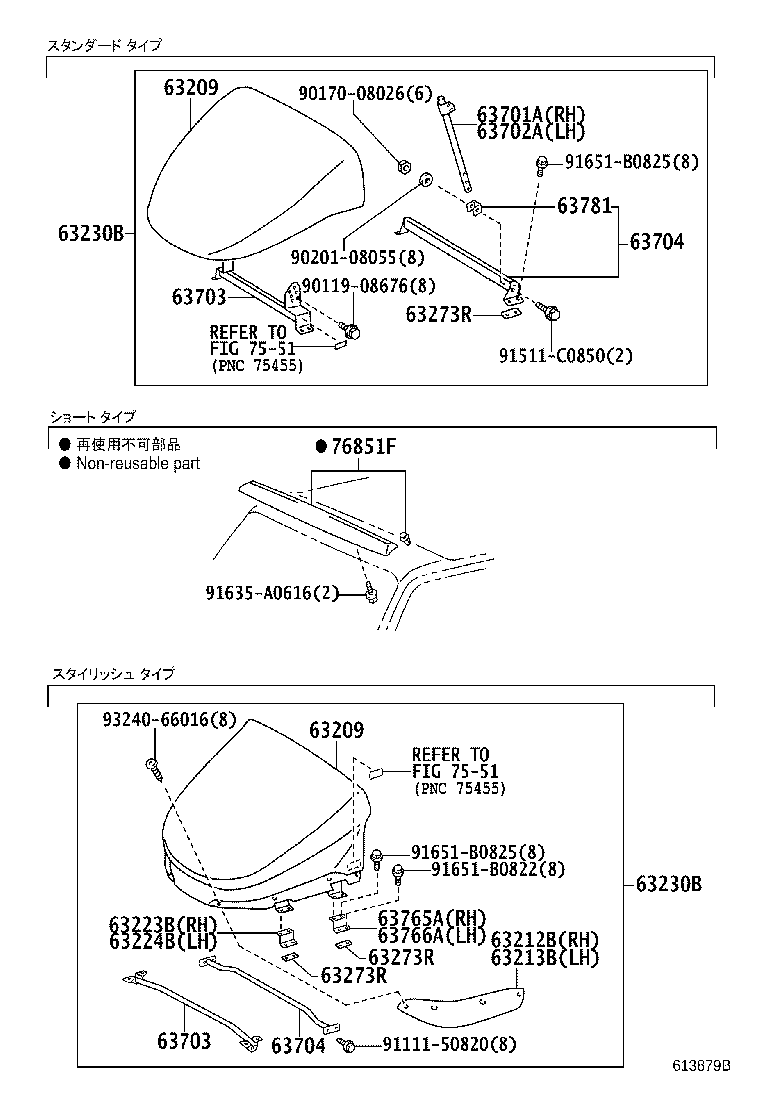

ILLUST NO. 2 OF 3(1107- )
ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-37040 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63209-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63209-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63209-37010 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-37040 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63209-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63209-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63209-37010 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63212B - PANEL, ROOF WIND DEFLECTOR | ||||
| 63212-37011 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63212-37010 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63212-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63213B - PANEL, SLIDING ROOF, INNER | ||||
| 63213-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63213-37011 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63213-37010 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63223B - BRACKET, ROOF WIND DEFLECTOR, RH | ||||
| 63223-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63223-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63224B - BRACKET, ROOF WIND DEFLECTOR, LH | ||||
| 63224-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63224-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-37050 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63230-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63230-37080 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63230-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-37050 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63230-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63230-37080 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63230-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63273-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
4 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63701-37040 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63701-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63702A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63702-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63702-37040 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63703-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63776-37070 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63776-37070 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63703-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63703 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63703-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63776-37070 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63776-37070 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63703-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63704 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63704-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63776-37080 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63776-37080 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63704-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63704 - BAR SUB-ASSY, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63704-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63776-37080 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63776-37080 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63704-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
1 | ||
| 63765A - BRACKET, ROOF AIR DEFLECTOR, RH | ||||
| 63765-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63765-37030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63766A - BRACKET, ROOF AIR DEFLECTOR, LH | ||||
| 63765-37030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63766-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀｲﾘｯｼｭﾀｲﾌﾟ) |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-37030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
2 | ||
| 63781-37030 |
XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｽﾀﾝﾀﾞｰﾄﾞﾀｲﾌﾟ) |
2 | ||
| 76851F - SPOILER, FRONT | ||||
| 76081-37030A0 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ(ﾎﾜｲﾄ)),WHITE,058 |
1 | ||
| 76081-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90170-08026 | ||||
| 90201-08055 | ||||
| 91111-50820 | ||||
| 91511-C0850 | ||||
| 91635-A0616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93240-66016 | ||||
| Linked diagrams | ||||
| 7551 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
