XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

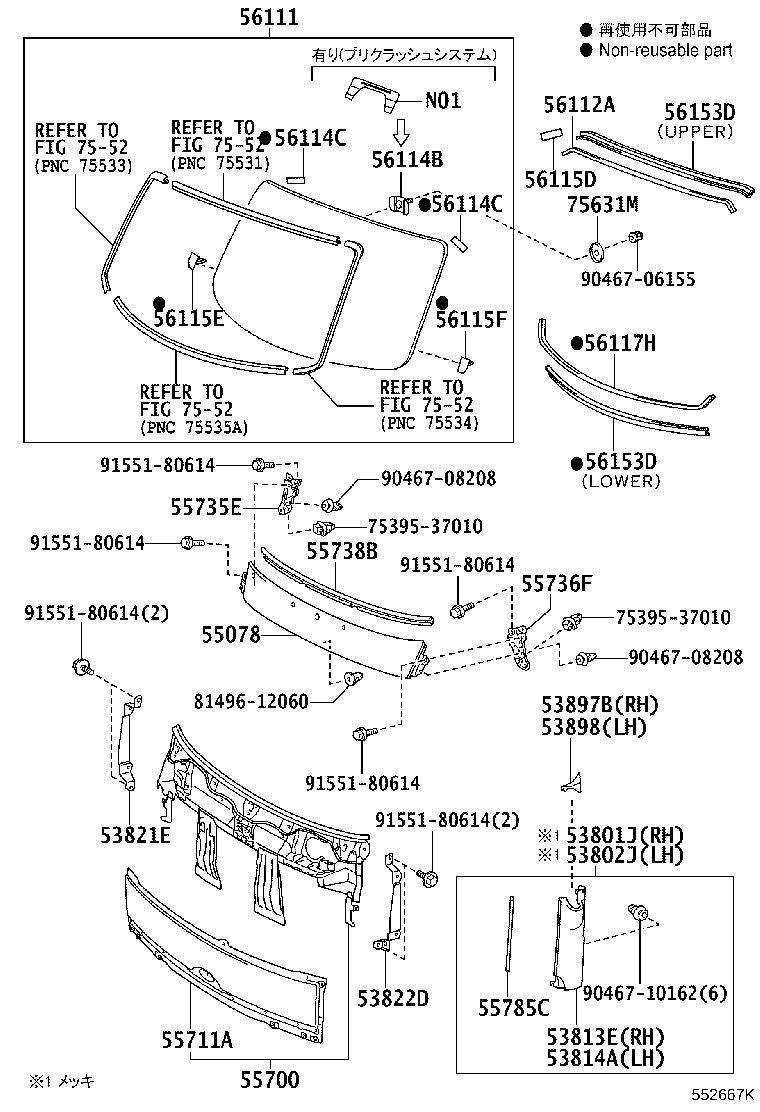

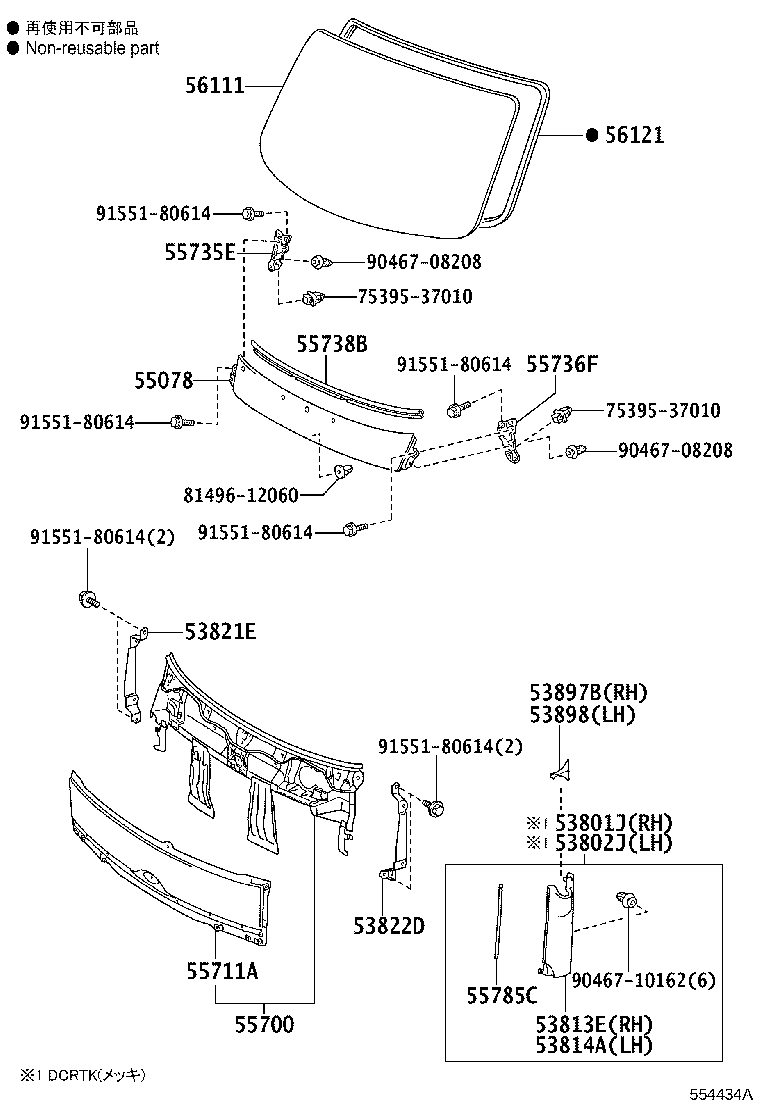

ILLUST NO. 1 OF 2(1107- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53801J - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53801-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKC605,645,655,XKU60#,64#,65# ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802J - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53802-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37120 |
XKC605,645,655,XKU60#,64#,65# ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813E - PANEL, FRONT SIDE, RH | ||||
| 53813-37100B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 SILVER ME.,199 |
1 | ||
| 53813-37100J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLUE,8P0 |
1 | ||
| 53813-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53813-37100D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 RED,3L5 |
1 | ||
| 53813-37100K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ONLYJAPANESE,9E2 |
1 | ||
| 53813-37100A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 WHITE,058 |
1 | ||
| 53813-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53813-37100H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 TURQUOISE,766 |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53813-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53813-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53813-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53813-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53813-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53813-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53813-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120A0 |
XKC605,645,655,XKU60#,64#,65# WHITE,058 |
1 | ||
| 53813-37120B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 SILVER ME.,199 |
1 | ||
| 53813-37120H0 |
XKC605,645,655,XKU60#,64#,65# TURQUOISE,766 |
1 | ||
| 53813-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120J0 |
XKC605,645,655,XKU60#,64#,65# BLUE,8P0 |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T RED,3L5 |
1 | ||
| 53813-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T ONLYJAPANESE,9E2 |
1 | ||
| 53813-37130 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814A - PANEL, FRONT SIDE, LH | ||||
| 53814-37100B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 SILVER ME.,199 |
1 | ||
| 53814-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37100D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 RED,3L5 |
1 | ||
| 53814-37100A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 WHITE,058 |
1 | ||
| 53814-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53814-37100J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLUE,8P0 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53814-37100K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ONLYJAPANESE,9E2 |
1 | ||
| 53814-37100H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 TURQUOISE,766 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53814-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53814-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53814-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53814-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53814-37120B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 SILVER ME.,199 |
1 | ||
| 53814-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53814-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53814-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53814-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53814-37120A0 |
XKC605,645,655,XKU60#,64#,65# WHITE,058 |
1 | ||
| 53814-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120H0 |
XKC605,645,655,XKU60#,64#,65# TURQUOISE,766 |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T ONLYJAPANESE,9E2 |
1 | ||
| 53814-37130 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120J0 |
XKC605,645,655,XKU60#,64#,65# BLUE,8P0 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T RED,3L5 |
1 | ||
| 53821E - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53822D - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53897B - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH | ||||
| 53897-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53897-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898 - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH | ||||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37370 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55700-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55735E - REINFORCEMENT, COWL BODY MOUNTING, RH | ||||
| 55735-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55736F - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37050 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-37030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56111-37120 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-89101 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56111-37130 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ |
1 | ||
| 56101-89102 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56111-25050 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ﾌﾞﾙｰ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞ梶[ﾝ |
1 | ||
| 56101-89101 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56112A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),*D,L=1250 |
1 | ||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),*D,L=P250 |
1 | ||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65# *D,L=1250 |
1 | ||
| 56114B - RETAINER, WINDSHIELD GLASS | ||||
| 56114-89101 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56114-89101 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 56114-89101 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56114C - RETAINER, WINDSHIELD GLASS | ||||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 56114C - RETAINER, WINDSHIELD GLASS | ||||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56114-89102 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 56115D - STOPPER, WINDSHIELD GLASS | ||||
| 56115-89105 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56115-89105 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
2 | ||
| 56115-89105 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 56115E - STOPPER, WINDSHIELD GLASS | ||||
| 56115-89103 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56115-89103 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56115-89103 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 56115F - STOPPER, WINDSHIELD GLASS | ||||
| 56115-89104 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56115-89104 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56115-89104 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 56117H - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65# *D,L=1630,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *D,L=1630,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着^ｲﾌﾟ) |
1 | ||
| 56117-89108 |
XKC605,645,655,XKU60#,64#,65# *D,L=1630 |
1 | ||
| 56153D - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),下側 |
1 | ||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65# 下側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),上側 |
1 | ||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),下側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65# 上側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),上側 |
1 | ||
| 56153D - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),下側 |
1 | ||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65# 下側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),上側 |
1 | ||
| 56153-89105 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),下側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65# 上側 |
1 | ||
| 56153-89104 |
XKC605,645,655,XKU60#,64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),上側 |
1 | ||
| 75631M - GARNISH, ROOF TOP, FRONT | ||||
| 75631-89101 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 75631-89101 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 75631-89101 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 75631-89101 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 75631-89101 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 75631-89101 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明) |
1 | ||
| 75631-89101 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 75631-89101 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 75631-89101 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| Common parts | ||||
| 75395-37010 | ||||
| 81496-12060 | ||||
| 90467-06155 | ||||
| 90467-08208 | ||||
| 90467-10162 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 2 OF 2(1107- )
ｱﾘ(ﾌﾛﾝﾄｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273S - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63273-28030 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
13 | ||
| 63787B - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 63787-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 63787-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 63787-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306A - SUPPORT SUB-ASSY, FRONT VISOR | ||||
| 74306-37040 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37040 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74306-37050 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37040 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37050 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37040 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37050 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74306-37050 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74321B - VISOR, FRONT | ||||
| 74321-37010 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37010 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37010 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOsA |
1 | ||
| 74321-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37020 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@HINO |
1 | ||
| 74321-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37030 |
XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37010 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@TOYOTA |
1 | ||
| 74321-37040 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74321-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74321-37040 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37040 |
XKU600..IV5;XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37040 |
XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37011 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOsA |
1 | ||
| 74321-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37031 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37011 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37041 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37041 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37021 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37011 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37041 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74321-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@HINO |
1 | ||
| 74321-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA |
1 | ||
| 74321-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ HINO |
1 | ||
| 74321-37041 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO |
1 | ||
| 74321-37011 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ@TOYOTA |
1 | ||
| 74321-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),ﾏｰｸ TOYOTA |
1 | ||
| 74325B - SUPPORT, FRONT VISOR, RH | ||||
| 74325-37020 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74325-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37030 |
XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74325-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37021 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74325-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37031 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74325-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326B - SUPPORT, FRONT VISOR, LH | ||||
| 74326-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37020 |
XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37020 |
XKU600..IV5;XKC645,655,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37030 |
XKU600..IV5;XKC645,655,XKU64#,65# ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37030 |
XKC645,655,XKU64#,65# ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37021 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37021 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37031 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74326-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
1 | ||
| 74326-37031 |
XKU640,655;XKC645,655,XKU645,650..T4;XKU600,650..(DM6,T3)..(IV3,IV5) ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
1 | ||
| 74327A - PAD, FRONT VISOR | ||||
| 74327-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327A - PAD, FRONT VISOR | ||||
| 74327-37020 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74327-37020 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
2 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽg参照 |
2 | ||
| 74328-95400 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽg参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽg参照 |
2 | ||
| 74328-95400 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽg参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328A - PAD, FRONT VISOR, NO.2 | ||||
| 74328-37010 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽg参照 |
2 | ||
| 74328-95400 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽg参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.Q:ｲﾗｽﾄ参照 |
15 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328-37010 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.P:ｲﾗｽﾄ参照 |
2 | ||
| 74328-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ),NO.2:ｲﾗｽﾄ参照 |
15 | ||
| 74328B - PAD, FRONT VISOR, NO.2 | ||||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ &ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
6 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ & ｻｲﾄﾞﾊﾞｲｻﾞ) |
6 | ||
| 74328-95400 |
XKU600..IV5;XKC655..T4..IV3;XKC645,XKU64#,65#..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ&ｻﾝｼｪｰﾄﾞ−有り(ﾌﾛﾝﾄ) |
6 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60162 | ||||
| 90385-11005 | ||||
| 90541-10020 | ||||
| 91651-B0845 | ||||
ILLUST NO. 1 OF 2(1107- )
ｳｲﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ=ｳｪｻﾞｽﾄﾘｯﾌﾟﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53801J - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53801-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKC605,645,655,XKU60#,64#,65# ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53801-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802J - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53802-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37120 |
XKC605,645,655,XKU60#,64#,65# ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37120 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ***,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53802-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ***,ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813E - PANEL, FRONT SIDE, RH | ||||
| 53813-37100B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 SILVER ME.,199 |
1 | ||
| 53813-37100J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLUE,8P0 |
1 | ||
| 53813-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53813-37100D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 RED,3L5 |
1 | ||
| 53813-37100K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ONLYJAPANESE,9E2 |
1 | ||
| 53813-37100A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 WHITE,058 |
1 | ||
| 53813-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53813-37100H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 TURQUOISE,766 |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53813-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53813-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53813-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53813-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53813-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53813-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53813-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120A0 |
XKC605,645,655,XKU60#,64#,65# WHITE,058 |
1 | ||
| 53813-37120B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 SILVER ME.,199 |
1 | ||
| 53813-37120H0 |
XKC605,645,655,XKU60#,64#,65# TURQUOISE,766 |
1 | ||
| 53813-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53813-37120J0 |
XKC605,645,655,XKU60#,64#,65# BLUE,8P0 |
1 | ||
| 53813-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T RED,3L5 |
1 | ||
| 53813-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53813-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T ONLYJAPANESE,9E2 |
1 | ||
| 53813-37130 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814A - PANEL, FRONT SIDE, LH | ||||
| 53814-37100B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 SILVER ME.,199 |
1 | ||
| 53814-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37100D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 RED,3L5 |
1 | ||
| 53814-37100A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 WHITE,058 |
1 | ||
| 53814-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53814-37100J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 BLUE,8P0 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53814-37100K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ONLYJAPANESE,9E2 |
1 | ||
| 53814-37100H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 TURQUOISE,766 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),RED,3L5 |
1 | ||
| 53814-37120A0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),WHITE,058 |
1 | ||
| 53814-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53814-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53814-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53814-37120B1 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 SILVER ME.,199 |
1 | ||
| 53814-37120B1 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),SILVER ME.,199 |
1 | ||
| 53814-37120J0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),BLUE,8P0 |
1 | ||
| 53814-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53814-37120H0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),TURQUOISE,766 |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T..IV3 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ),ONLYJAPANESE,9E2 |
1 | ||
| 53814-37120A0 |
XKC605,645,655,XKU60#,64#,65# WHITE,058 |
1 | ||
| 53814-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120H0 |
XKC605,645,655,XKU60#,64#,65# TURQUOISE,766 |
1 | ||
| 53814-37120K0 |
XKU605..T4..IV3;XKU650..T3..30T ONLYJAPANESE,9E2 |
1 | ||
| 53814-37130 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53814-37120J0 |
XKC605,645,655,XKU60#,64#,65# BLUE,8P0 |
1 | ||
| 53814-37120D0 |
XKU605..T4..IV3;XKU650..T3..30T RED,3L5 |
1 | ||
| 53821E - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53822D - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53897B - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH | ||||
| 53897-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53897-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53897-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898 - PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH | ||||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ)&ﾒｯｷｺｰﾅｰﾊﾟﾈﾙ(DOP)−有り |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 53898-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37370 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55700-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55735E - REINFORCEMENT, COWL BODY MOUNTING, RH | ||||
| 55735-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55736F - REINFORCEMENT, COWL BODY MOUNTING, LH | ||||
| 55736-37020 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37050 |
XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-37030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56111-37120 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-89101 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ |
1 | ||
| 56111-37130 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ |
1 | ||
| 56101-89102 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),Oﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56111-25050 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 *LAM,T=5.76,ﾌﾞﾙｰ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞ梶[ﾝ |
1 | ||
| 56101-89101 |
XKC605,645,655,XKU60#,64#,65# *LAM,T=5.76,ｸﾞﾘｰﾝ,ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-25040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| 56121-25040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 56121-25040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｳｨﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ−有り(ﾄｯﾌﾟｼｪｰﾄﾞ),ｸﾞﾘｰﾝ(接着ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 75395-37010 | ||||
| 81496-12060 | ||||
| 90467-08208 | ||||
| 90467-10162 | ||||
| 91551-80614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
