XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

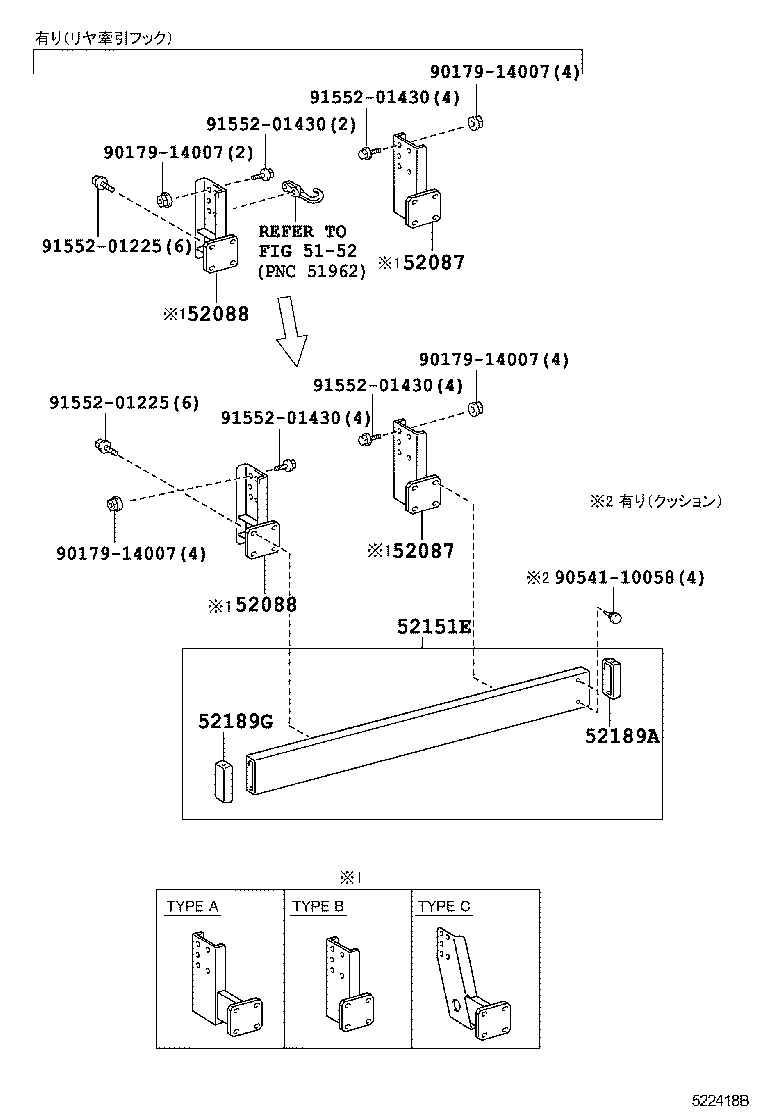

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 5152 52087 52087 52088 52088 52151E 52189A 52189G 9017914007 9017914007 9017914007 9017914007 9054110058 9155201225 9155201225 9155201430 9155201430 9155201430 9155201430
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-37210

XKU600..30T..CBU;XKC655,XKU640,65#

TYPE B:ｲﾗｽﾄ参照

 1
52151-37210

XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-37210

XKU600..30T..CBU;XKC655,XKU640,65#

TYPE B:ｲﾗｽﾄ参照

 1
52151-37210

XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37090

XKU600..30T..CBU;XKC655,XKU640,65#

TYPE B:ｲﾗｽﾄ参照

 1
52152-37090

XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37090

XKU600..30T..CBU;XKC655,XKU640,65#

TYPE B:ｲﾗｽﾄ参照

 1
52152-37090

XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52151E - BAR, REAR BUMPER
52105-37260

XKC655,XKU640,65#

塗装不要

 1
52105-37260

XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し

 1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37060

XKU600..30T..IV3;XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し

 1
52189-37060

XKU600..30T;XKC655,XKU640,65#

 1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37060

XKU600..30T;XKC655,XKU640,65#

 1
52189-37060

XKU600..30T..IV3;XKC655,XKU640,65#..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し

 1
