XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

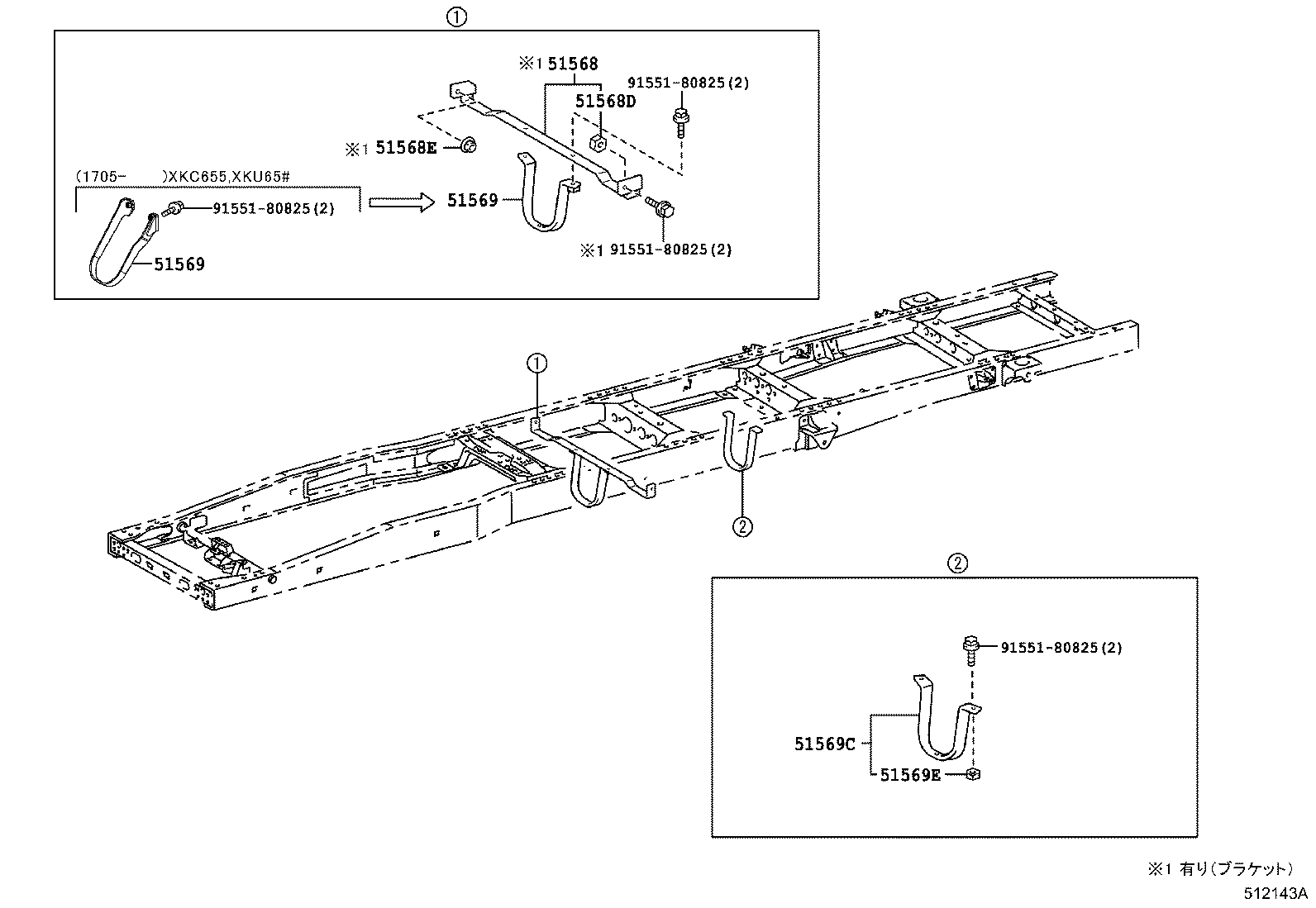

ILLUST NO. 4 OF 5(1107- )DCRTK
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51568D - NUT, HEXAGON | ||||
| 90031-70106 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51568E - NUT, HEXAGON | ||||
| 94151-80800 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKU60#..(DM6,T5)..20T..(IV3,IV5) |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4;XKU60#..(DM6,T5)..20T..(IV3,IV5) |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37370 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51569E - NUT, HEXAGON | ||||
| 90031-70106 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
2 | ||
| Common parts | ||||
| 91551-80825 | ||||

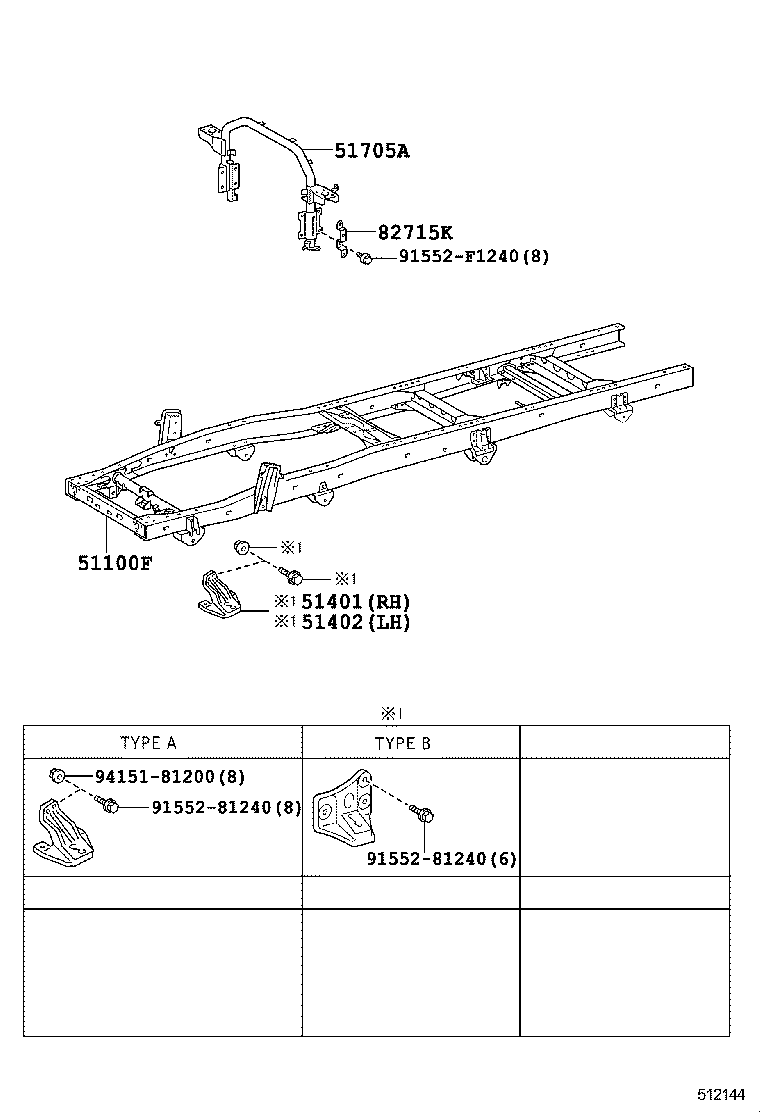

ILLUST NO. 1 OF 5(1107- )DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VQ71 |
XKU650 |
1 | ||
| 51001-3VQ70 |
XKU650..T4;XKU650..T3..IV3 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37840 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 82715K - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VN20 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-81200 | ||||

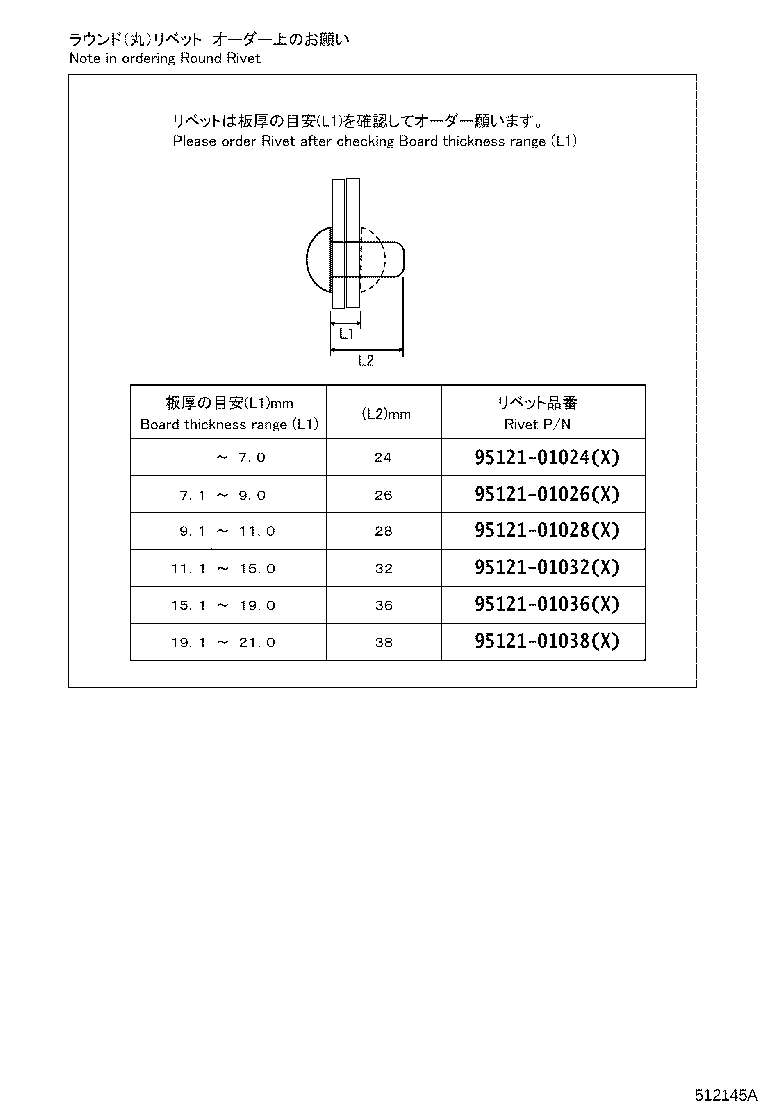

ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||

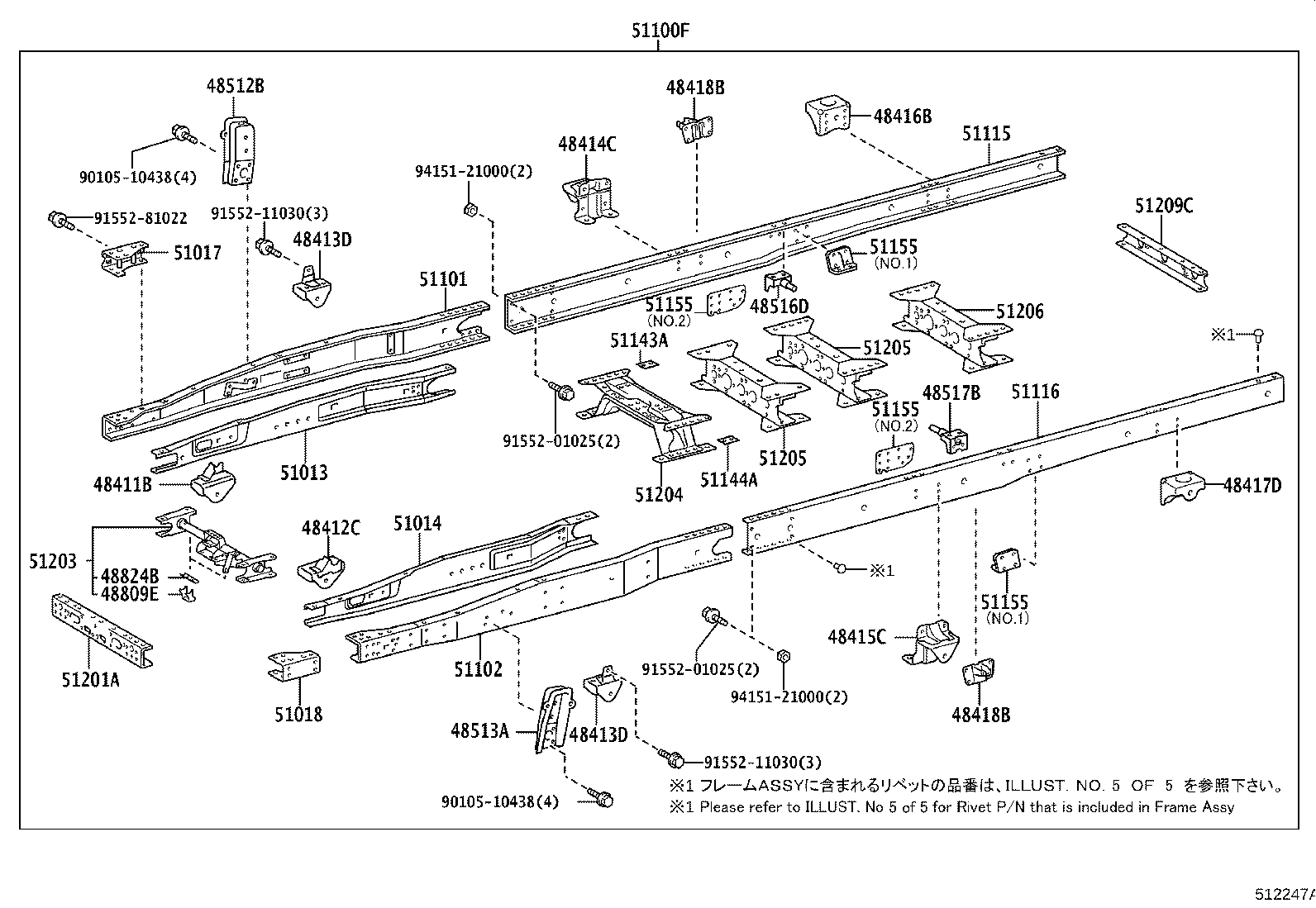

ILLUST NO. 2 OF 5(1107- )XKU650
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XKC655,XKU640,65# |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 48809E - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37040 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
2 | ||
| 48824B - BRACKET, STABILIZER | ||||
| 48824-37230 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37440 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37420 |
XKU600,640,650..CBU,IV3 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37180 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VQ71 |
XKU650 |
1 | ||
| 51001-3VQ70 |
XKU650..T4;XKU650..T3..IV3 |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37180 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37180 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37510 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37420 |
XKU655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37340 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37340 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 51211-37090 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37230 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37301 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XKC655,XKU65# ﾘﾔ |
1 | ||
| 51204-37110 |
XKC655,XKU65# ﾌﾛﾝﾄ |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XKC655,XKU65# ﾘﾔ |
1 | ||
| 51204-37110 |
XKC655,XKU65# ﾌﾛﾝﾄ |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XKU600..IV5;XKC655,XKU640,65# |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XKU640,655;XKU650..T3..IV3;XKC645,655,XKU645,650..T4 |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 91552-01025 | ||||
| 91552-11030 | ||||
| 91552-81022 | ||||
| 94151-21000 | ||||
