XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

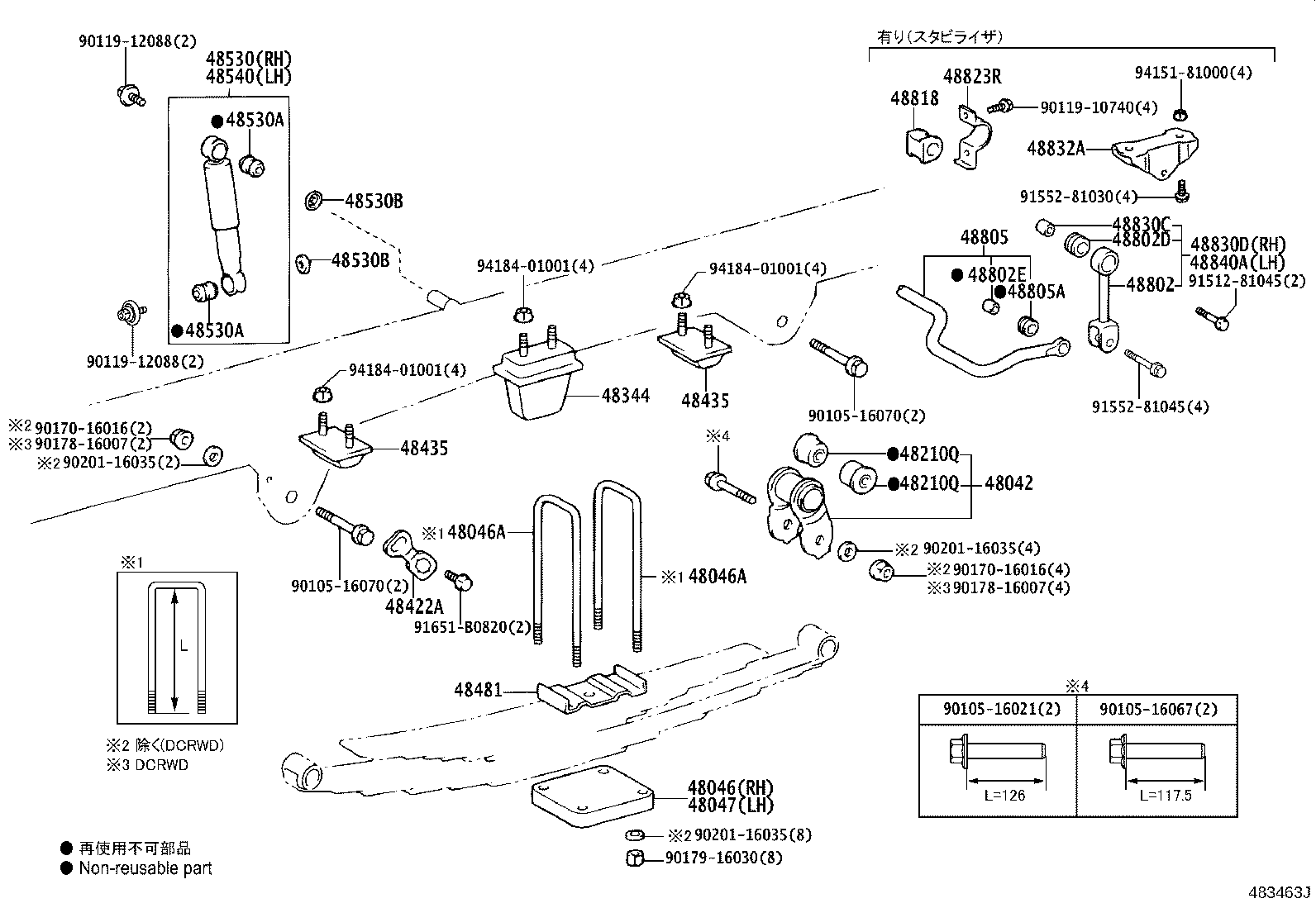

ILLUST NO. 1 OF 2(1107- )XKU645..DCRWD ; (1107- )XKC655,XKU640,65#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 長さ=310 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 長さ=310 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
XKC655,XKU640,65# |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XKC655,XKU640,65# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80796 |
XKC655,XKU640,65# ﾏｰｸ 48531−37011 |
1 | ||
| 48531-80673 |
XKC655,XKU640,65# ﾏｰｸ 48531−37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80796 |
XKC655,XKU640,65# ﾏｰｸ 48531−37011 |
1 | ||
| 48531-80673 |
XKC655,XKU640,65# ﾏｰｸ 48531−37010 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 91651-B0820 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

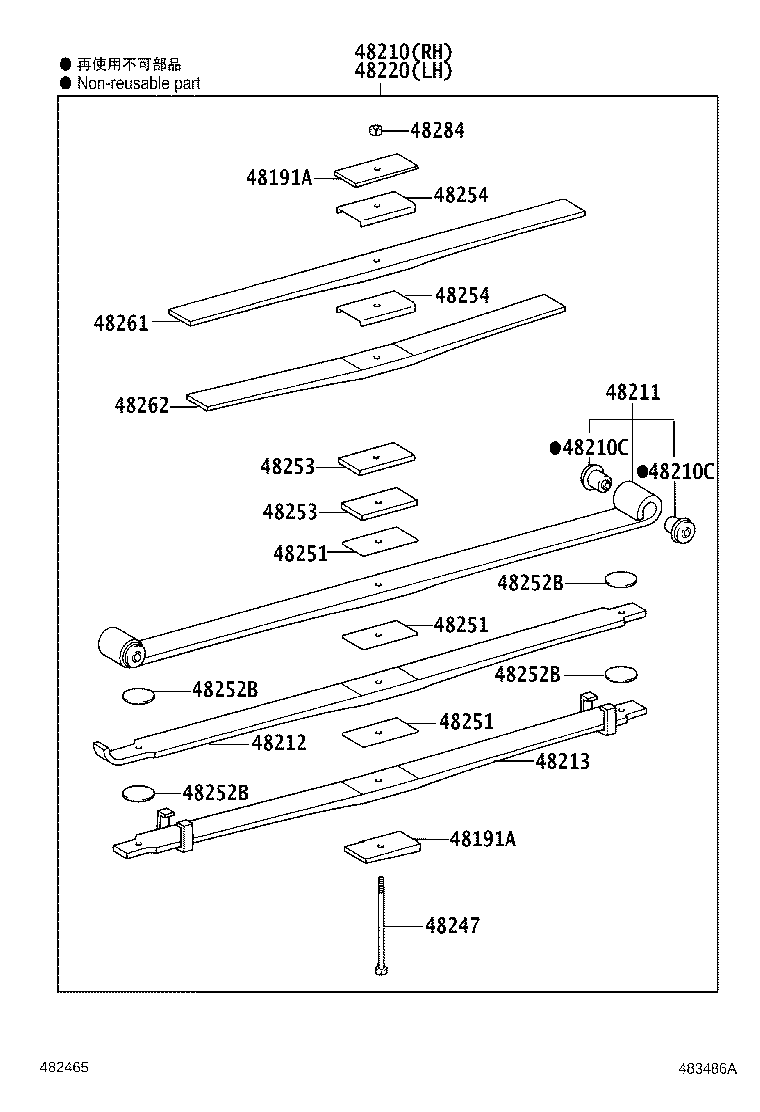

ILLUST NO. 2 OF 2(1107- )XKU640,650..30T
MAIN 3+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37570 |
XKU640,650..T3..30T..IV3 ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ｺﾝﾌﾟ激bｼｮﾝ |
1 | ||
| 48210-37830 |
XKU640,650..T3..30T..IV3 ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XKU640,655;XKU650..T3..IV3;XKC655,XKU650..T4 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37570 |
XKU640,650..T3..30T..IV3 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37570 |
XKU640,650..T3..30T..IV3 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37570 |
XKU640,650..T3..30T..IV3 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37830 |
XKU640,650..T3..30T..IV3 ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37570 |
XKU640,650..T3..30T..IV3 ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ｺﾝﾌﾟ激bｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XKU640;XKU650..T4..30T;XKU650..T3..30T..IV3 |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37570 |
XKU640,650..T3..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261-37830 |
XKU640,650..T3..30T..IV3 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37570 |
XKU640,650..T3..30T..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−ﾘｰﾌ 2.95ﾄﾝ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37830 |
XKU640,650..T3..30T..IV3 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XKU640,650..T3..30T..IV3 |
2 | ||
