XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU600,640,650

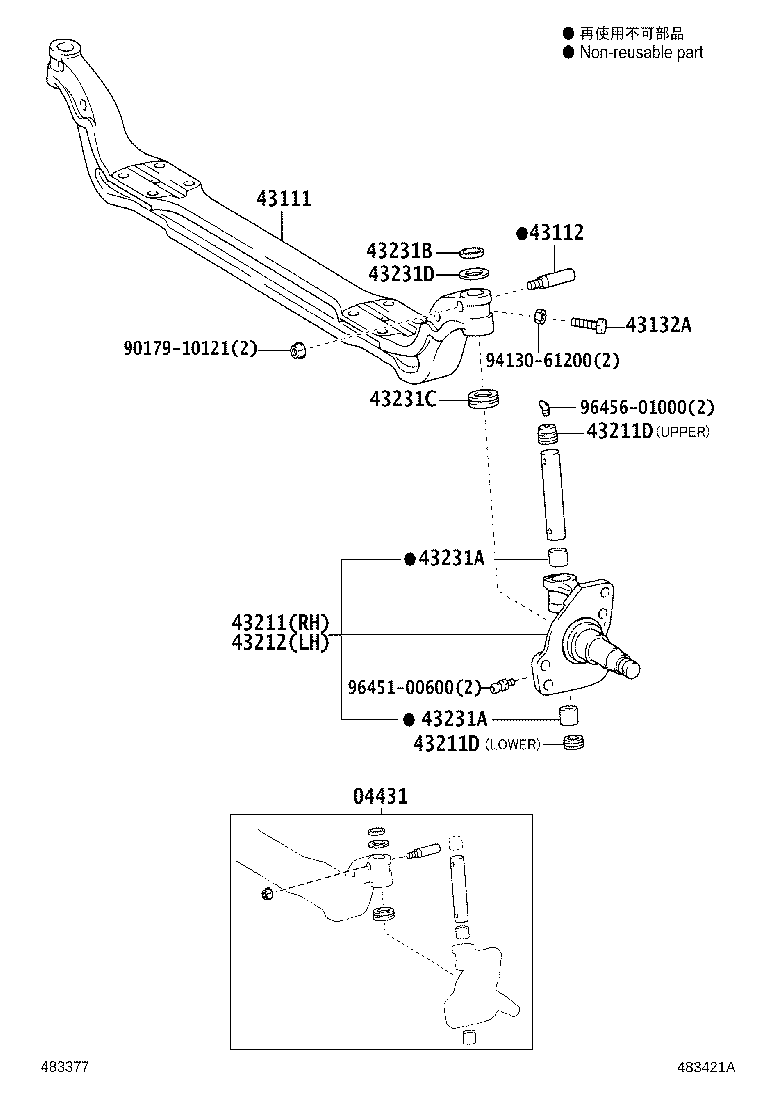

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43212 43231A 43231A 43231B 43231C 43231D 9017910121 9413061200 9645100600 9645601000
Part # Description Qty Price
04431 - PIN KIT, STEERING KNUCKLE KING
0443C-37010

XKU600,640,650

 2
0443C-37020

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 2
43111 - I BEAM, FRONT AXLE
43111-37031

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
43112 - PIN, KING PIN LOCK
43112-36020

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 2
43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
90106-12008

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 2
43211 - KNUCKLE, STEERING, RH
43201-37110

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90345-33003

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

下側

 2
90345-33004

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

上側

 2
43211D - PLUG (FOR STEERING KNUCKLE)
90345-33003

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

下側

 2
90345-33004

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

上側

 2
43212 - KNUCKLE, STEERING, LH
43202-37110

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73086

XKU600,640,650

 4
90999-73086

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 4
43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS
90999-73086

XKU600,640,650

 4
90999-73086

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 4
43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
90312-28003

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 2
43231C - BEARING (FOR STEERING KNUCKLE KING PIN)
90367-28001

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 2
43231D - SHIM (FOR KING PIN)
90564-28001

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=1.9

 2
90564-28003

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=2.1

 2
90564-28008

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=1.8

 2
90564-28002

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=2.0

 2
90564-28005

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=2.3

 2
90564-28006

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=2.4

 2
90564-28004

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=2.2

 2
90564-28007

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

厚さ=1.7

 2
Common parts
90179-10121
94130-61200
96451-00600
96456-01000
