XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
ILLUST NO. 1 OF 2(1107-1305)IV5 ; (1107- )DCRTK..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33826U - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33828-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33828-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826U - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33828-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33828-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46211-37021 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46211-37021 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 46210-37150C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37150C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37860 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46420-37C00 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37D30 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46430-37E50 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46585A - LABEL, PARKING BRAKE NOTICE | ||||
| 46585-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 46585-37030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46585-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585A - LABEL, PARKING BRAKE NOTICE | ||||
| 46585-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 |
1 | ||
| 46585-37030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46585-37020 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90201-10042 | ||||
| 90461-08225 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91551-A0818 | ||||
| 91552-81030 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-61016 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

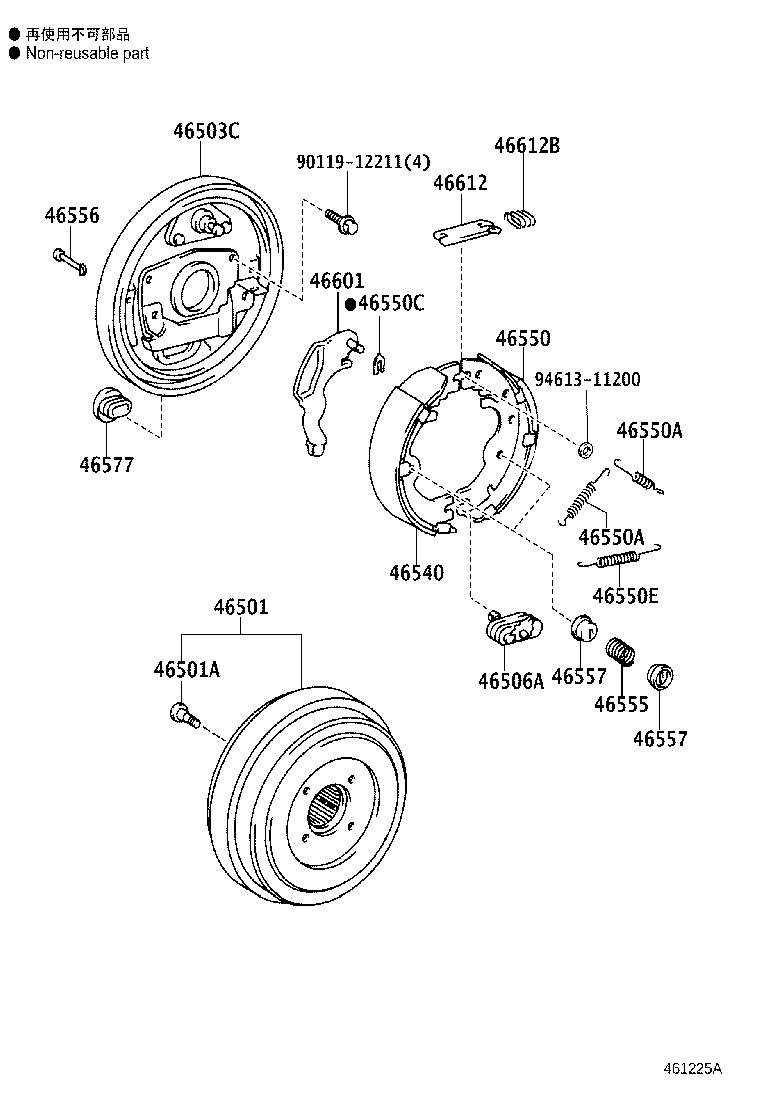

ILLUST NO. 2 OF 2(1107- )DCRTK..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46501-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37681 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46503-37691 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46540-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46530-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 90905-06020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 90905-06020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.2 |
1 | ||
| 90506-23049 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 90506-14012 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 90501-16025 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 47447-22010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36051 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46601-37680 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46612-36050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 90504-10010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| Common parts | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
ILLUST NO. 1 OF 2(1305- )DCRTK
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826-37580 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33826U - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33828-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33828-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33826U - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33828-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 33828-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37230 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33827-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 NO.3 |
1 | ||
| 33827-37141 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 33829-37350 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| 33829-37300 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.2 |
1 | ||
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37051 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37860 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46420-37C00 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37D30 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46430-37E50 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37280 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37030C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90119-06315 | ||||
| 90201-10042 | ||||
| 90467-08108 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91611-G0820 | ||||
| 91651-61016 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1305- )DCRTK
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),右側 |
1 | ||
| 90507-20021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),左側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),右側 |
1 | ||
| 90507-20021 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),左側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46501-37050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37681 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46503-37691 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46540-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46530-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 90905-06020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 90905-06020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.2 |
1 | ||
| 90506-23049 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 90506-14012 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.2 |
1 | ||
| 90506-23049 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 90506-14012 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 90501-16025 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 47447-22010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36051 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46601-37680 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 46612-36050 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 90504-10010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47456-20030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47456-20030 |
XKC605,645,655,XKU60#,64#,65#..CBU,IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-12211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
