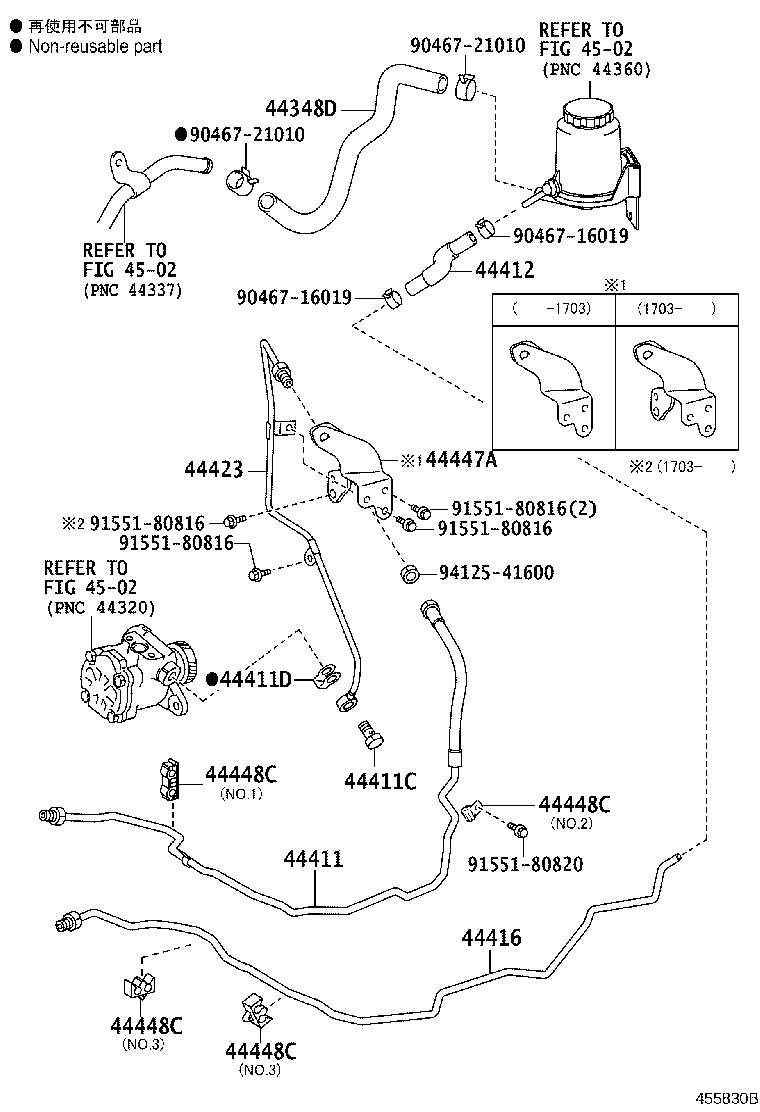

XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107- )XKU600,640,650..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37490 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44348-37491 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37471 |
XKU600,640,650..CBU,IV3 |
1 | ||
| 44411-37470 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37320 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37670 |
XKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37141 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37310 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.3 |
2 | ||
| 44448-37030 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.3 |
2 | ||
| 44448-37030 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.3 |
2 | ||
| 44448-37030 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.1 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 44448-37080 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.3 |
2 | ||
| 44448-37030 |
XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3 NO.1 |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 94125-41600 | ||||
| Linked diagrams | ||||
| 4502 | ||||
