XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

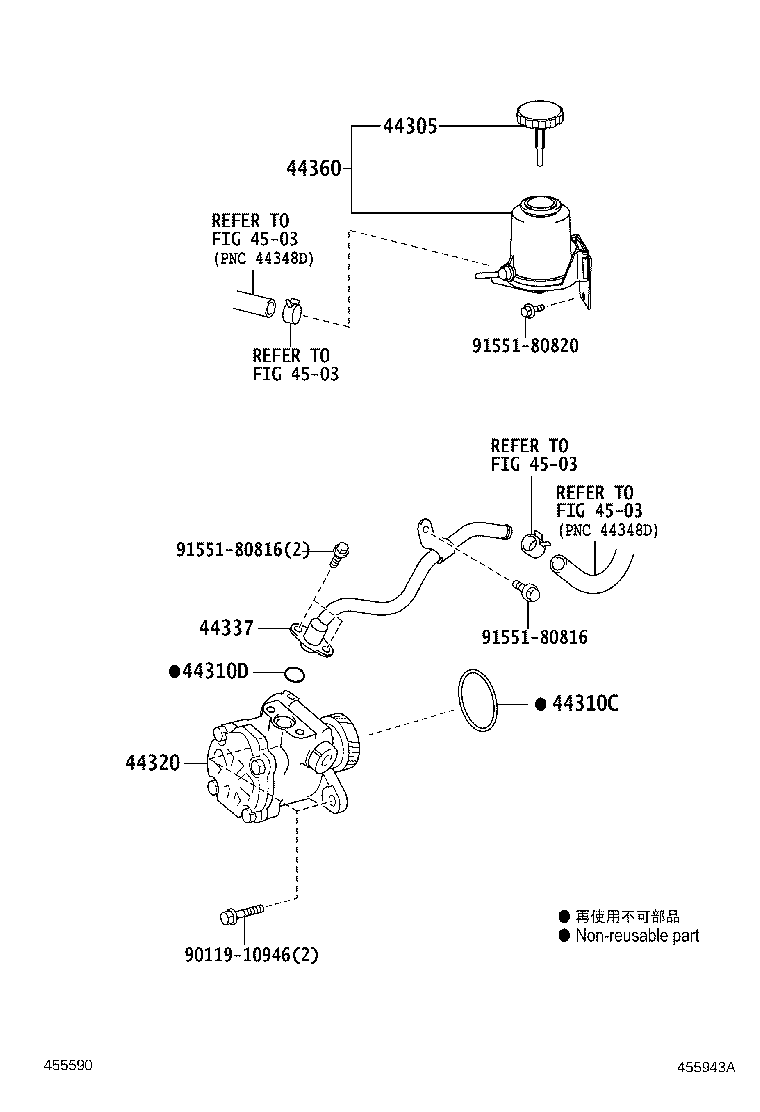

Click highlighted areas on diagram

diagram 44305 44310C 44310D 44320 44337 44360 4503 4503 4503 4503 9011910946 9155180816 9155180816 9155180820
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37030

XKC605,645,655,XKU60#,64#,65#

 1
44305-37031

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
44320 - PUMP ASSY, VANE
44310-37180

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37401

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
44337-37402

XKC605,645,655,XKU60#,64#,65#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37210

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
Common parts
90119-10946
91551-80816
91551-80820
Linked diagrams
4503
