XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU600,640,650

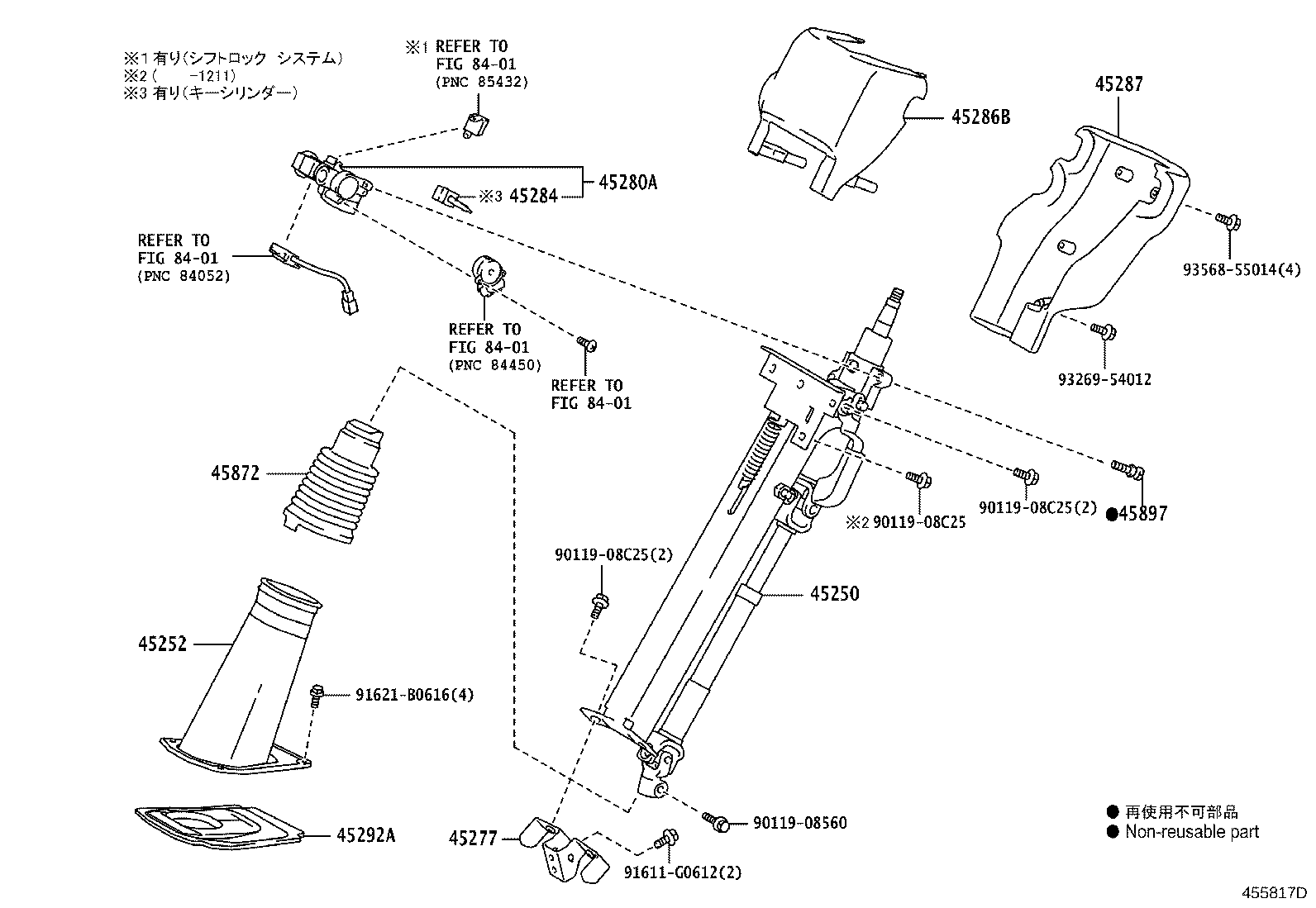

Click highlighted areas on diagram

diagram 45250 45252 45277 45280A 45284 45286B 45287 45292A 45872 45897 8401 8401 8401 8401 9011908560 9011908C25 9011908C25 9011908C25 91611G0612 91621B0616 9326954012 9356855014
Part # Description Qty Price
45250 - COLUMN ASSY, STEERING
45250-37C10C0

XKU600,640,650

BLACK,TRIM1#

 1
45250-37C11C0

XKU600,640,650

BLACK,TRIM1#

 1
45250-37C12C0

XKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3

BLACK,TRIM1#

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37050C0

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

BLACK,TRIM1#

 1
45277 - PLATE, STEERING COLUMN UPPER ATTACHMENT
45277-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-37150

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4

ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)

 1
45280-37150

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4

ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り

 1
45280-37170

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
45280-37160

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
45280-37160

XKC605,645,655,XKU60#,64#,65#..CBU,IV3

ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
45280-37140

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4

 1
45284 - SHAFT, STEERING LOCK CAM
45284-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
45286B - COVER, STEERING COLUMN, UPR
45286-37130C0

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-37120C0

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

BLACK,TRIM1#

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
45872 - COVER, STEERING COLUMN TUBE
45872-37020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
45897 - BOLT, STEERING LOCK SET
45897-E0020

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 2
Common parts
90119-08560
90119-08C25
91611-G0612
91621-B0616
93269-54012
93568-55014
Linked diagrams
8401
