XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107-1305)IV5 ; (1107- )DCRTK..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37441C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 BLACK,TRIM1# |
1 | ||
| 33550-37460C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 33550-37440 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33680 - COVER SUB-ASSY, SHIFT LEVER | ||||
| 33522-37060C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 33522-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| Common parts | ||||
| 90119-08C60 | ||||
| 93269-55014 | ||||

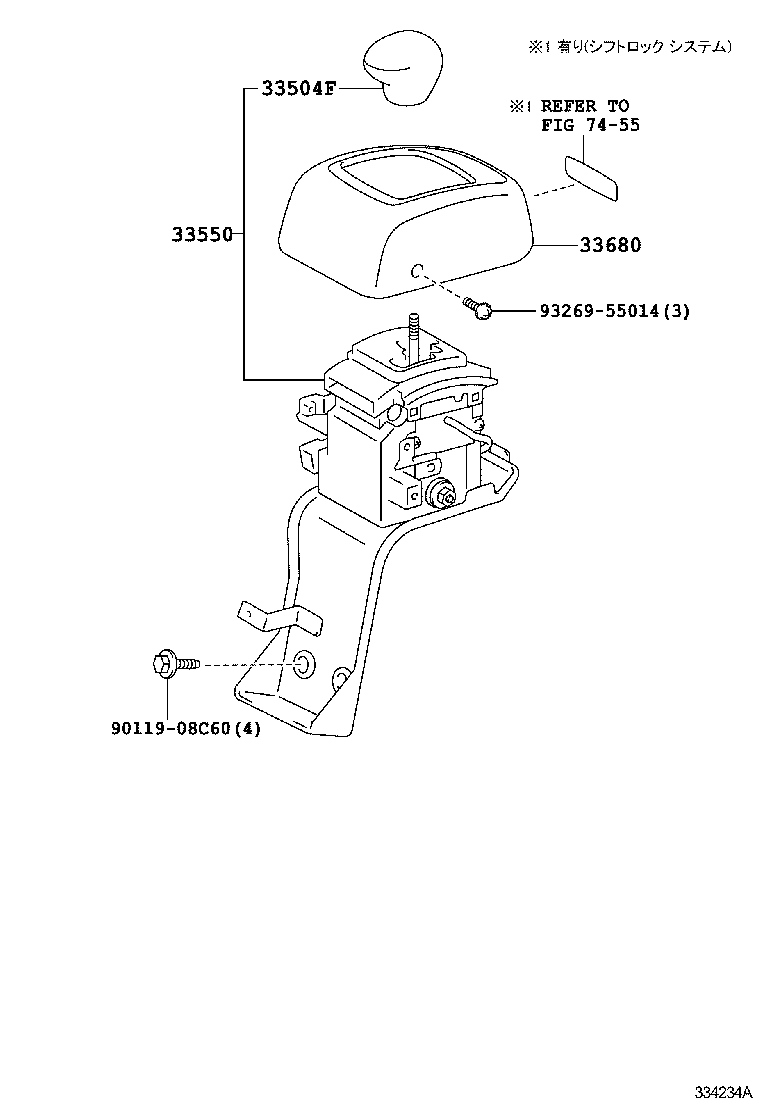

| Linked diagrams | ||||
| 7455 | ||||
(1305- )DCRTK
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-12056 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37110 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37441C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 BLACK,TRIM1# |
1 | ||
| 33550-37460C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 33550-37440 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 33680 - COVER SUB-ASSY, SHIFT LEVER | ||||
| 33522-37060C0 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 ｼﾌﾄﾛｯｸ ｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 33522-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4 |
1 | ||
| Common parts | ||||
| 90119-08C60 | ||||
| 90480-19008 | ||||
| 93269-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||
