XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

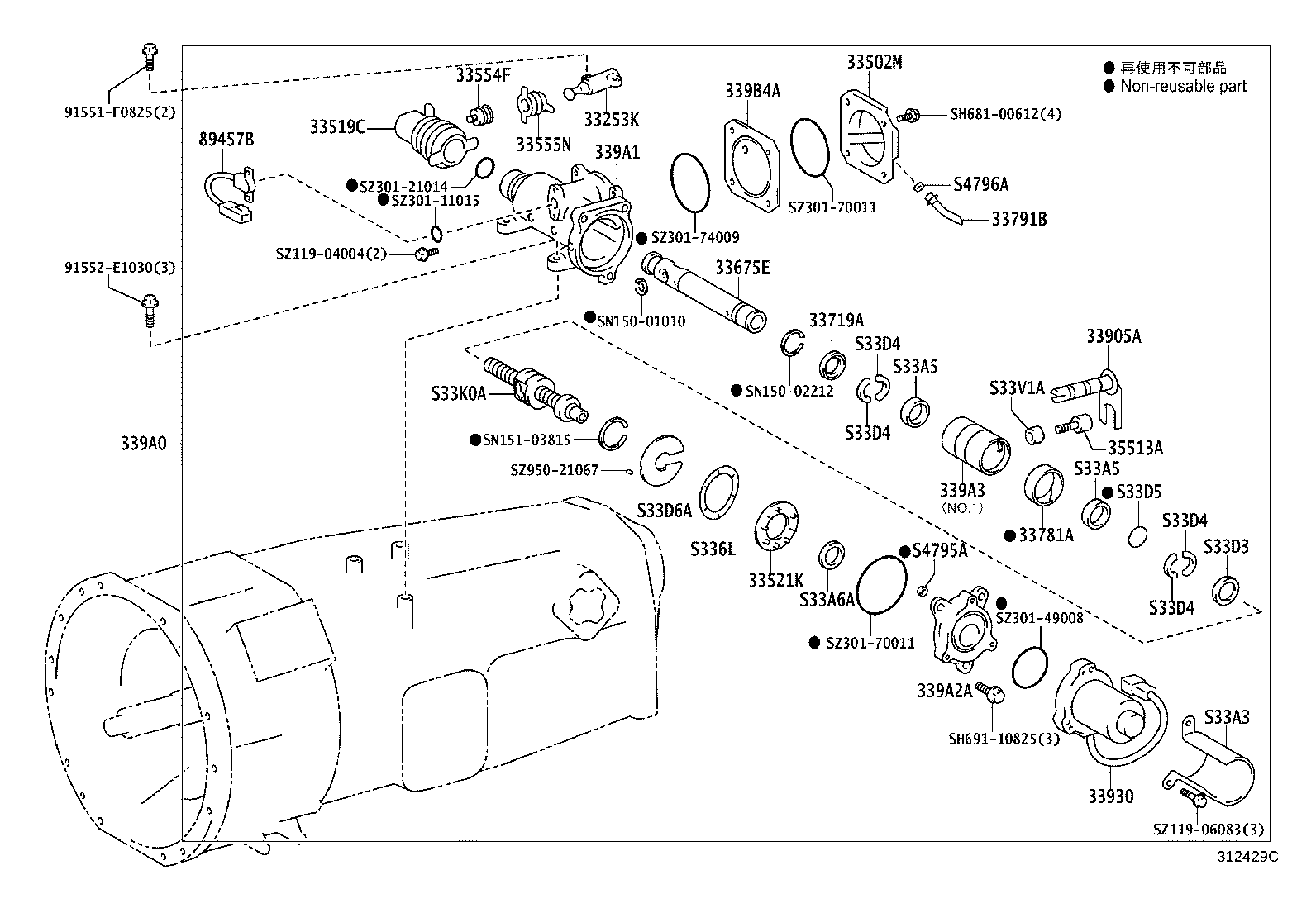

ILLUST NO. 2 OF 2(1107- )DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33253K - LEVER, SHIFT, OUTER | ||||
| 33253-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33502M - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33519C - BOOT, CONTROL SHAFT DUST | ||||
| 33519-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33521K - PLATE, SHIFT LEVER | ||||
| 33521-E0070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33554F - CAP, SHIFT LEVER | ||||
| 33554-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33555N - BOOT, SHIFT LEVER, NO.3 | ||||
| 33555-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33675E - ROD, TRANSMISSION CONTROL | ||||
| 33675-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33719A - PLATE, SHIFT CONTROL ROD | ||||
| 33719-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33781A - GUIDE, SHIFTING ROD | ||||
| 33781-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33791B - TUBE, GEAR SHIFTING | ||||
| 33791-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33905A - LEVER SUB-ASSY, SHIFT ACTUATOR SENSOR | ||||
| 33905-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33930 - MOTOR ASSY, TRANS ACTUATOR SHIFT | ||||
| 33930-37013 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33930-37012 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33930-37014 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 339A0 - ACTUATOR ASSY, TRANSMISSION SHIFT | ||||
| 339A0-37014 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339A0-37013 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 339A0-37015 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 339A1 - CYLINDER, TRANS ACTUATOR SHIFT | ||||
| 339A1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339A2A - HOUSING, SHIFT ACTUATOR BEARING | ||||
| 339A2-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339A3 - HOLDER, TRANSMISSION ACTUATOR | ||||
| 339A3-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 339A3-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 339B4A - COVER, SHIFT ACTUATOR CYLINDER | ||||
| 339B4-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 35513A - BOLT, SHIFT CONTROL ACTUATOR | ||||
| 35513-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89457B - STROKE SENSOR, SHIFT | ||||
| 89457-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S336L - WASHER, SHIFT LEVER PRESSURE SPRING | ||||
| S336L-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33A3 - COVER, GEAR SHIFT MOTOR | ||||
| S33A3-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33A5 - BUSH, TRANSMISSION CONTROL, NO.1 | ||||
| S33A5-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| S33A5 - BUSH, TRANSMISSION CONTROL, NO.1 | ||||
| S33A5-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| S33A6A - BUSH, SHIFT ACTUATOR CONTROL NO.2 | ||||
| S33A6-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33D3 - PLATE, DAMPER SET | ||||
| S33D3-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33D4 - RING, TRANSMISSION CONTROL RET, NO.1 | ||||
| S33D4-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| S33D4 - RING, TRANSMISSION CONTROL RET, NO.1 | ||||
| S33D4-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| S33D4 - RING, TRANSMISSION CONTROL RET, NO.1 | ||||
| S33D4-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| S33D4 - RING, TRANSMISSION CONTROL RET, NO.1 | ||||
| S33D4-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| S33D5 - RING, TRANSMISSION CONTORL RET, NO.2 | ||||
| S33D5-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33D6A - COVER, SHIFT ACTUATOR BEARING HOUSING | ||||
| S33D6-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33K0A - SCREW ASSY, SHIFT BALL | ||||
| S33K0-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33V1A - SPACER, SHIFT ACTUATOR SENSOR | ||||
| S33V1-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S4795A - FILTER, SHIFT ACTUATOR | ||||
| S4795-91020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S4796A - FILTER ASSY, SHIFT ACTUATOR | ||||
| S4796-01070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 91551-F0825 | ||||
| 91552-E1030 | ||||
| SH681-00612 | ||||
| SH691-10825 | ||||
| SN150-01010 | ||||
| SN150-02212 | ||||
| SN151-03815 | ||||
| SZ119-04004 | ||||
| SZ119-06083 | ||||
| SZ301-11015 | ||||
| SZ301-21014 | ||||
| SZ301-49008 | ||||
| SZ301-70011 | ||||
| SZ301-74009 | ||||
| SZ950-21067 | ||||

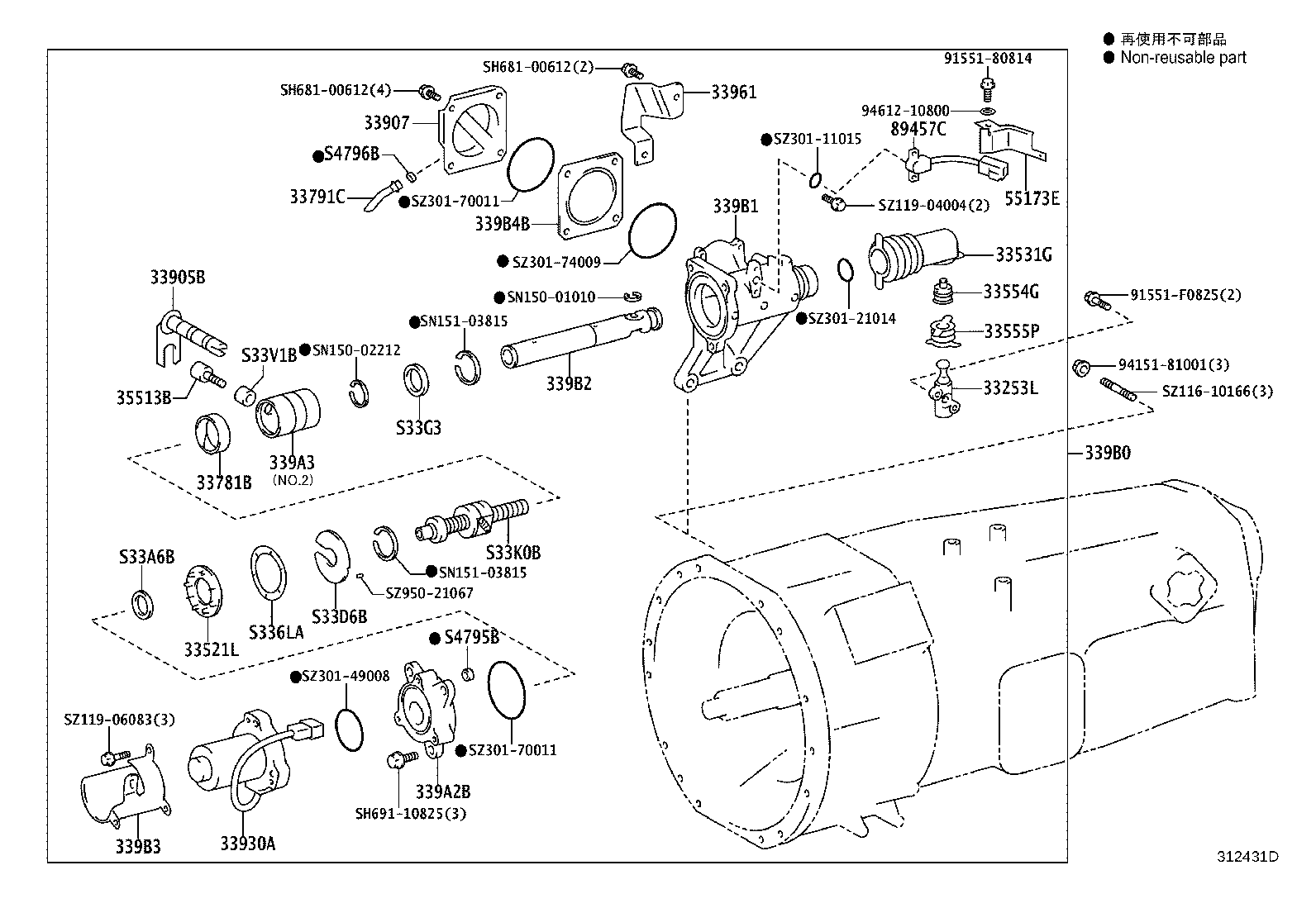

ILLUST NO. 1 OF 2(1107- )DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33253L - LEVER, SELECT, OUTER | ||||
| 33253-37130 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33521L - PLATE, SELECT LEVER | ||||
| 33521-E0070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33531G - BOOT, DUST | ||||
| 33531-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33554G - CAP, SELECT LEVER | ||||
| 33554-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33555P - BOOT, SELECT LEVER, NO.3 | ||||
| 33555-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33781B - GUIDE, SELECTING ROD | ||||
| 33781-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33791C - TUBE, GEAR SELECTING | ||||
| 33791-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33905B - LEVER SUB-ASSY, SELECT ACTUATOR SENSOR | ||||
| 33905-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33907 - COVER SUB-ASSY, TRANSMISSION ACTUATOR | ||||
| 33907-37011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33930A - MOTOR ASSY, TRANS ACTUATOR SELECT | ||||
| 33930-37012 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33930-37013 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 33930-37014 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 33961 - COVER, SEQUENTIAL TRANSMISSION ACTUATOR | ||||
| 33961-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339A2B - HOUSING, SELECT ACTUATOR BEARING | ||||
| 339A2-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339A3 - HOLDER, TRANSMISSION ACTUATOR | ||||
| 339A3-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| 339A3-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 339B0 - ACTUATOR ASSY, TRANSMISSION SELECT | ||||
| 339B0-37015 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 339B0-37016 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339B0-37017 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 339B1 - CYLINDER, TRANS ACTUATOR SELECT | ||||
| 339B1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339B2 - ROD, TRANSMISSION ACTUATOR SELECT | ||||
| 339B2-37011 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339B3 - COVER, TRANS ACTUATOR MOTOR | ||||
| 339B3-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 339B4B - COVER, SELECT ACTUATOR CYLINDER | ||||
| 339B4-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 35513B - BOLT, SELECT CONTROL ACTUATOR | ||||
| 35513-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 55173E - BRACKET, ELECTRICAL PART | ||||
| 55173-37100 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 55173-37101 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89457C - STROKE SENSOR, SELECT | ||||
| 89457-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S336LA - WASHER, SELECT LEVER PRESSURE SPRING | ||||
| S336L-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33A6B - BUSH, SELECT ACTUATOR CONTROL NO.2 | ||||
| S33A6-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33D6B - COVER, SELECT ACTUATOR BEARING HOUSING | ||||
| S33D6-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33G3 - WASHER, TRANSMISSION CONTROL | ||||
| S33G3-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33K0B - SCREW ASSY, SELECT BALL | ||||
| S33K0-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S33V1B - SPACER, SELECT ACTUATOR SENSOR | ||||
| S33V1-E0010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S4795B - FILTER, SELECT ACTUATOR | ||||
| S4795-91020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| S4796B - FILTER ASSY, SELECT ACTUATOR | ||||
| S4796-01070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 91551-80814 | ||||
| 91551-F0825 | ||||
| 94151-81001 | ||||
| 94612-10800 | ||||
| SH681-00612 | ||||
| SH691-10825 | ||||
| SN150-01010 | ||||
| SN150-02212 | ||||
| SN151-03815 | ||||
| SZ116-10166 | ||||
| SZ119-04004 | ||||
| SZ119-06083 | ||||
| SZ301-11015 | ||||
| SZ301-21014 | ||||
| SZ301-49008 | ||||
| SZ301-70011 | ||||
| SZ301-74009 | ||||
| SZ950-21067 | ||||
