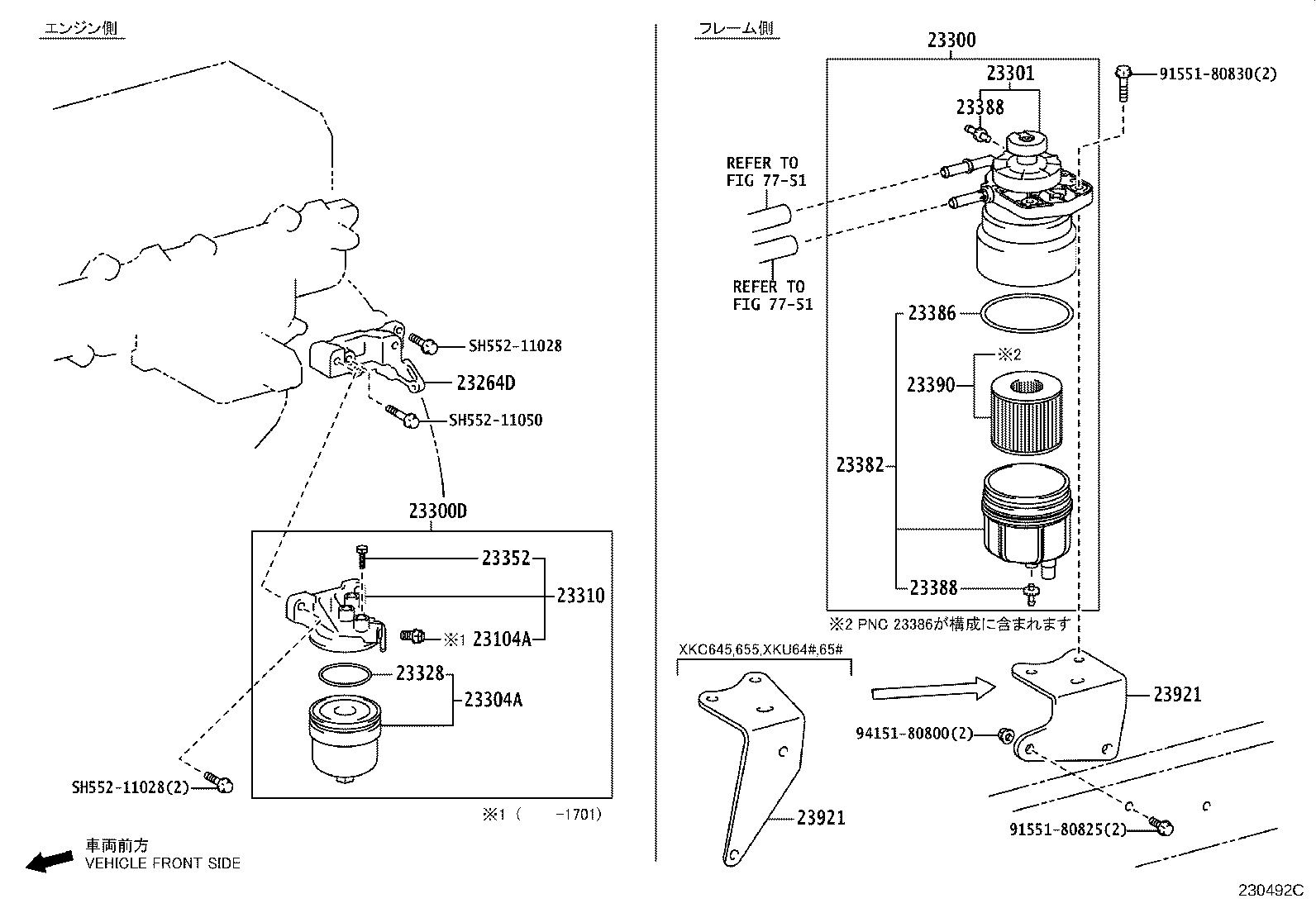

XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107- )N04C..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23104A - VALVE SUB-ASSY | ||||
| 23104-EV010 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23264D - BRACKET, FUEL FILTER | ||||
| 23264-78081 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-78232 |
N04C..XKC605,645,655,XKU60#,64#,65# ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23300-78234 |
N04C..XKC605,645,655,XKU60#,64#,65# ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23300-78224 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23300-78233 |
N04C..XKC605,645,655,XKU60#,64#,65# ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23300-78223 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23300-78225 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23300-78235 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23300-78222 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-E0382 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23300-E0381 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23300-E0570 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23300-78420 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23301-78224 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23301-78222 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23301-78234 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23301-78223 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23301-78232 |
N04C..XKC605,645,655,XKU60#,64#,65# ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23301-78233 |
N04C..XKC605,645,655,XKU60#,64#,65# ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-EV280 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23304-EV280 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23304-78420 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23310 - BODY, FUEL FILTER, UPPER | ||||
| 23310-78420 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23310-EV091 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23310-EV090 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-E0020 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23385-78420 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23352 - PLUG, BLEEDER | ||||
| 23388-78420 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| S2331-61040 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-78222 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23382-78223 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23386 - GASKET, FUEL FILTER CASE | ||||
| 23386-78220 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-78222 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-78222 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23304-78222 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23390-78221 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 23304-78225 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78610 |
N04C..XKU640,655;N04C..XKU650..T3..IV3;N04C..XKC645,655,XKU645,650..T4 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78610 |
N04C..XKU640,655;N04C..XKU650..T3..IV3;N04C..XKC645,655,XKU645,650..T4 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| Linked diagrams | ||||
| 7751 | ||||
