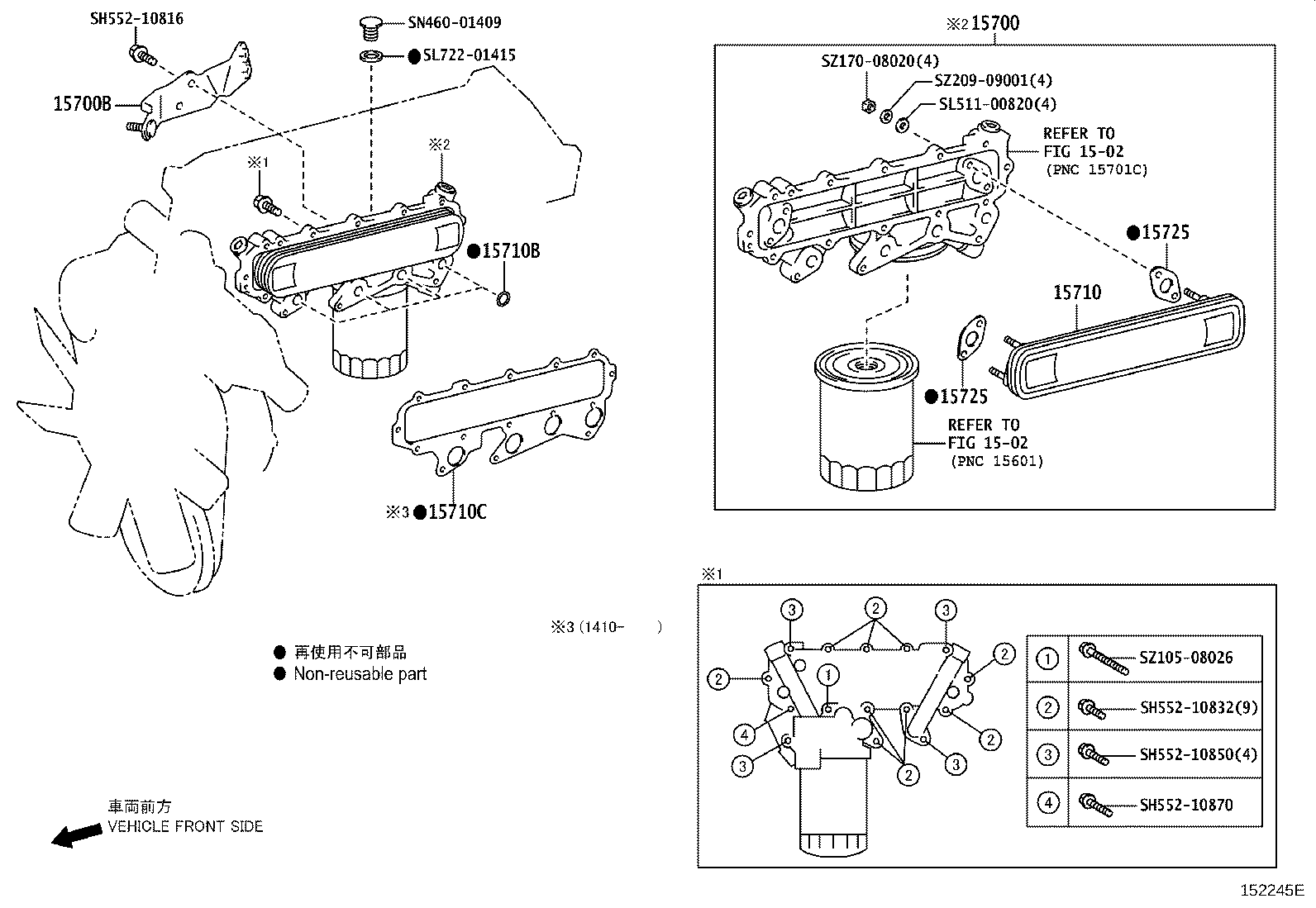

XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-E0023 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78030 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| S1571-22260 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| SZ301-19018 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 有り(PNC 15710C) |
4 | ||
| SZ301-19015 |
N04C..XKC605,645,655,XKU60#,64#,65# 無し(PNC 15710C) |
4 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15725-E0020 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| S1571-71270 |
N04C..XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 15785-EV010 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| S1571-71270 |
N04C..XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 15785-EV010 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| Common parts | ||||
| SH552-10816 | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SL511-00820 | ||||
| SL722-01415 | ||||
| SN460-01409 | ||||
| SZ105-08026 | ||||
| SZ170-08020 | ||||
| SZ209-09001 | ||||
| Linked diagrams | ||||
| 1502 | ||||

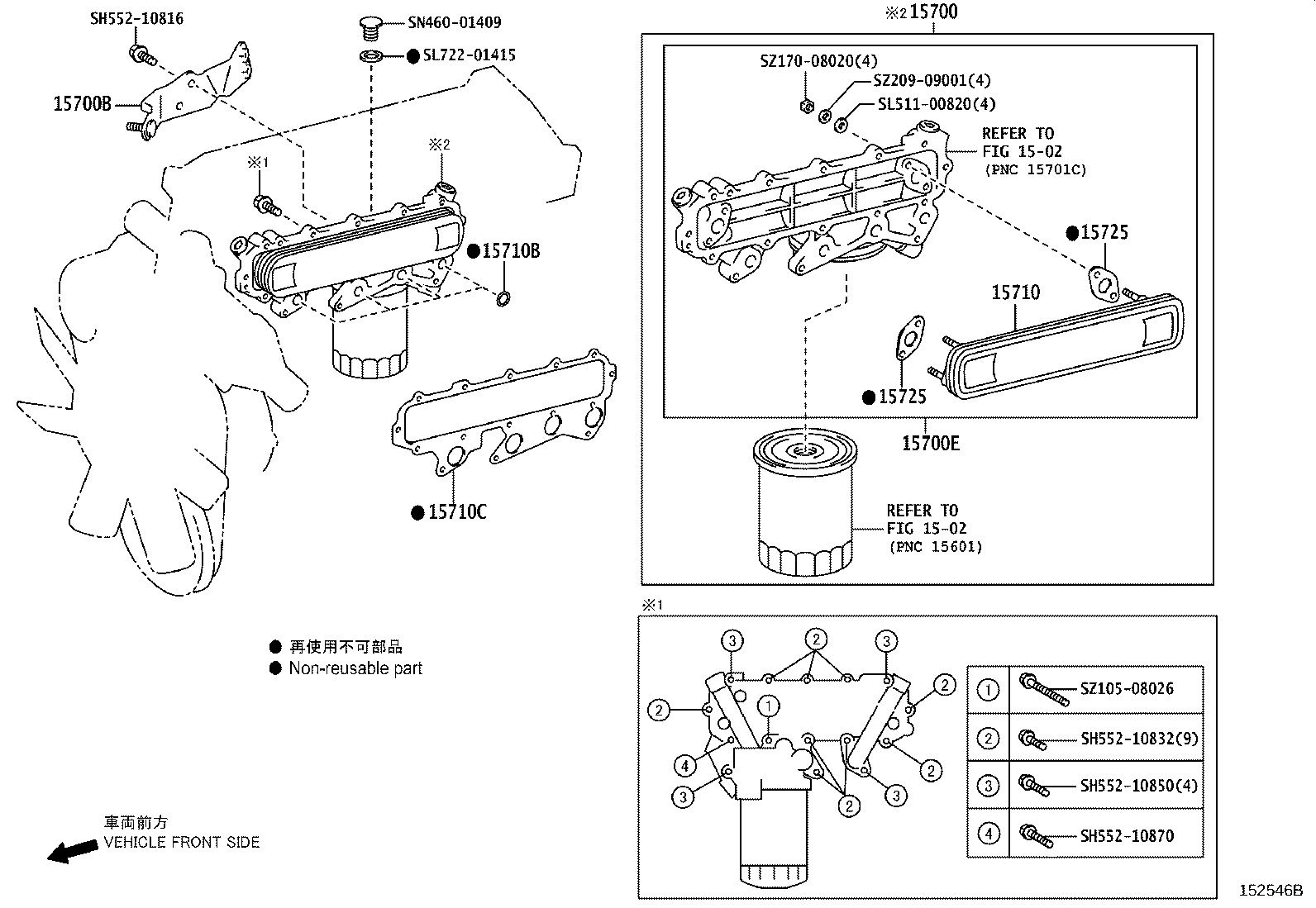

(1605- )N04C..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-E0023 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78030 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER | ||||
| S1570-EV030 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| S1571-22260 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| SZ301-19018 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 有り(PNC 15710C) |
4 | ||
| SZ301-19015 |
N04C..XKC605,645,655,XKU60#,64#,65# 無し(PNC 15710C) |
4 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15725-E0020 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| S1571-71270 |
N04C..XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 15785-EV010 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| S1571-71270 |
N04C..XKC605,645,655,XKU60#,64#,65# |
2 | ||
| 15785-EV010 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| Common parts | ||||
| SH552-10816 | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SL511-00820 | ||||
| SL722-01415 | ||||
| SN460-01409 | ||||
| SZ105-08026 | ||||
| SZ170-08020 | ||||
| SZ209-09001 | ||||
| Linked diagrams | ||||
| 1502 | ||||
