XKU650-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv
(1107- )N04C..DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| S1571-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| SZ301-18015 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
5 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11560 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| S1566-11250 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| S1566-11370 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11560 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| S1566-11250 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| S1566-11370 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| S1566-11560 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
1 | ||
| S1566-11250 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.3 |
1 | ||
| S1566-11370 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15613-E0080 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
3 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1571-61070 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| S1572-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1571-61070 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| S1572-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| S1571-61070 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.1 |
1 | ||
| S1572-61110 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 NO.2 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| S9007-56166 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| S1572-01651 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| S1572-01581 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| S1570-12521 |
N04C..XKC605,645,655,XKU60#,64#,65# |
1 | ||
| S1570-12401 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||

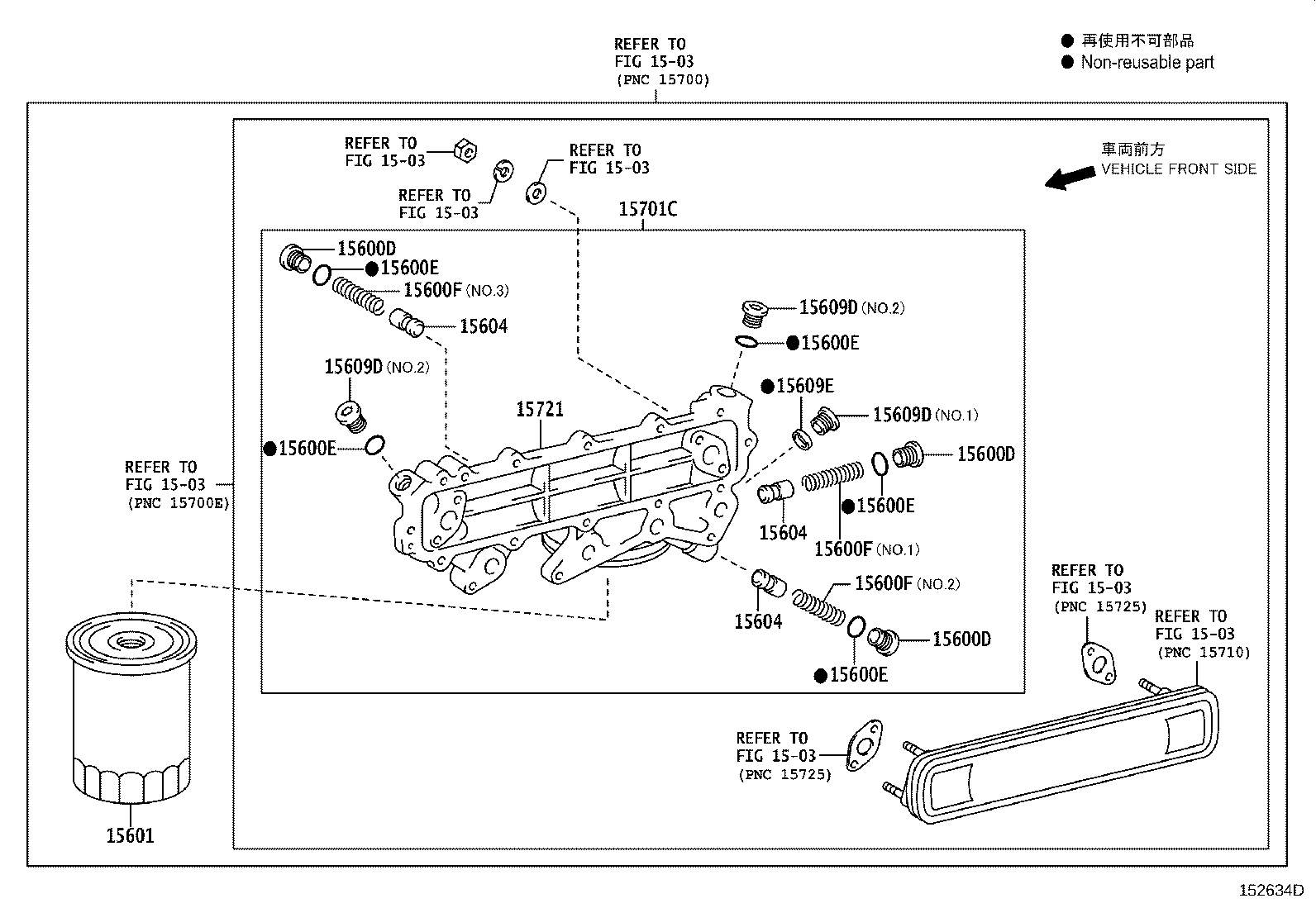

| Linked diagrams | ||||
| 1503 | ||||
