XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

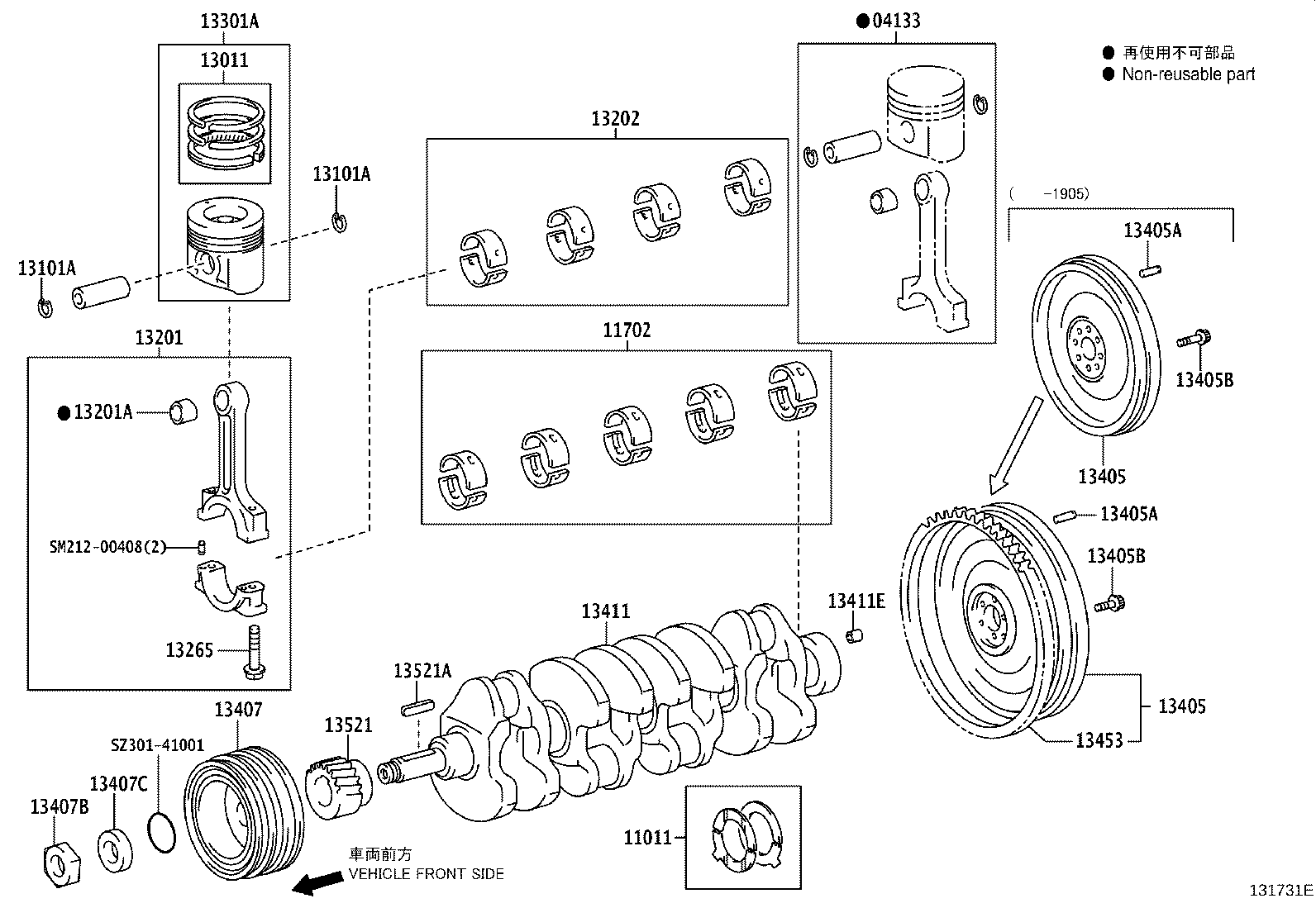

Click highlighted areas on diagram

diagram 04133 11011 11702 13011 13101A 13101A 13201 13201A 13202 13265 13301A 13405 13405 13405A 13405A 13405B 13405B 13407 13407B 13407C 13411 13411E 13453 13521 13521A SM21200408 SZ30141001
Part # Description Qty Price
04133 - PIN KIT, PISTON
04133-E0100

N04C..XKC605,645,655,XKU60#,64#,65#

 4
04133-E0101

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 4
11011 - WASHER SET, CRANKSHAFT THRUST
11011-E0030

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-E0010

N04C..XKC605,645,655,XKU60#,64#,65#

U/S 0.25

 1
11706-E0010

N04C..XKC605,645,655,XKU60#,64#,65#

U/S 0.75

 1
11701-E0070

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

STD

 1
11706-E0020

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

U/S 0.75

 1
11707-E0020

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

U/S 1.00

 1
11705-E0010

N04C..XKC605,645,655,XKU60#,64#,65#

U/S 0.50

 1
11705-E0040

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

U/S 0.50

 1
11704-E0040

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

U/S 0.25

 1
11707-E0010

N04C..XKC605,645,655,XKU60#,64#,65#

U/S 1.00

 1
11701-E0040

N04C..XKC605,645,655,XKU60#,64#,65#

STD

 1
13011 - RING SET, PISTON
S1304-E0020

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
SZ520-37001

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
SZ520-37001

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 8
13201 - ROD SUB-ASSY, CONNECTING
13260-E0050

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
S1327-21400

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 4
13202 - BEARING SET, CONNECTING ROD
13041-E0610

N04C..XKC605,645,655,XKU60#,64#,65#

STD

 1
13041-E0690

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

STD

 1
13265 - BOLT, CONNECTING ROD
13265-E0010

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 8
13301A - PISTON SET, W/PISTON RING
S130B-E0150

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 4
13405 - FLYWHEEL SUB-ASSY
13451-E0G70

N04C..XKC605,645,655,XKU60#,64#,65#

 1
13451-E0G71

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13405 - FLYWHEEL SUB-ASSY
13451-E0G70

N04C..XKC605,645,655,XKU60#,64#,65#

 1
13451-E0G71

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
SM212-01024

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

長さ=24,外径=10

 2
90250-10008

N04C..XKC605,645,655,XKU60#,64#,65#

長さ=24,外径=10

 2
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
SM212-01024

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

長さ=24,外径=10

 2
90250-10008

N04C..XKC605,645,655,XKU60#,64#,65#

長さ=24,外径=10

 2
13405B - BOLT, FLYWHEEL SETTING
S1345-51820

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 8
13405B - BOLT, FLYWHEEL SETTING
S1345-51820

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 8
13407 - DAMPER SUB-ASSY, CRANKSHAFT
13408-E0050

N04C..XKC655..T4..IV3;N04C..XKC605,645,XKU60#,64#,65#..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
13408-E0050

N04C..XKU650..T3..30T..IV3;N04C..XKU60#,64#..(T3,T4)..IV3

冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ)

 1
13407-E0160

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER)
SZ170-27001

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13407C - SPACER(FOR CRANKSHAFT DAMPER)
SZ910-16034

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13411 - CRANKSHAFT
13411-E0071

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13411E - COLLAR(FOR CRANKSHAFT)
SZ910-29013

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
S1352-11660

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
SM171-01028

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
Common parts
SM212-00408
SZ301-41001
