XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )N04C..DCRTK

Click highlighted areas on diagram

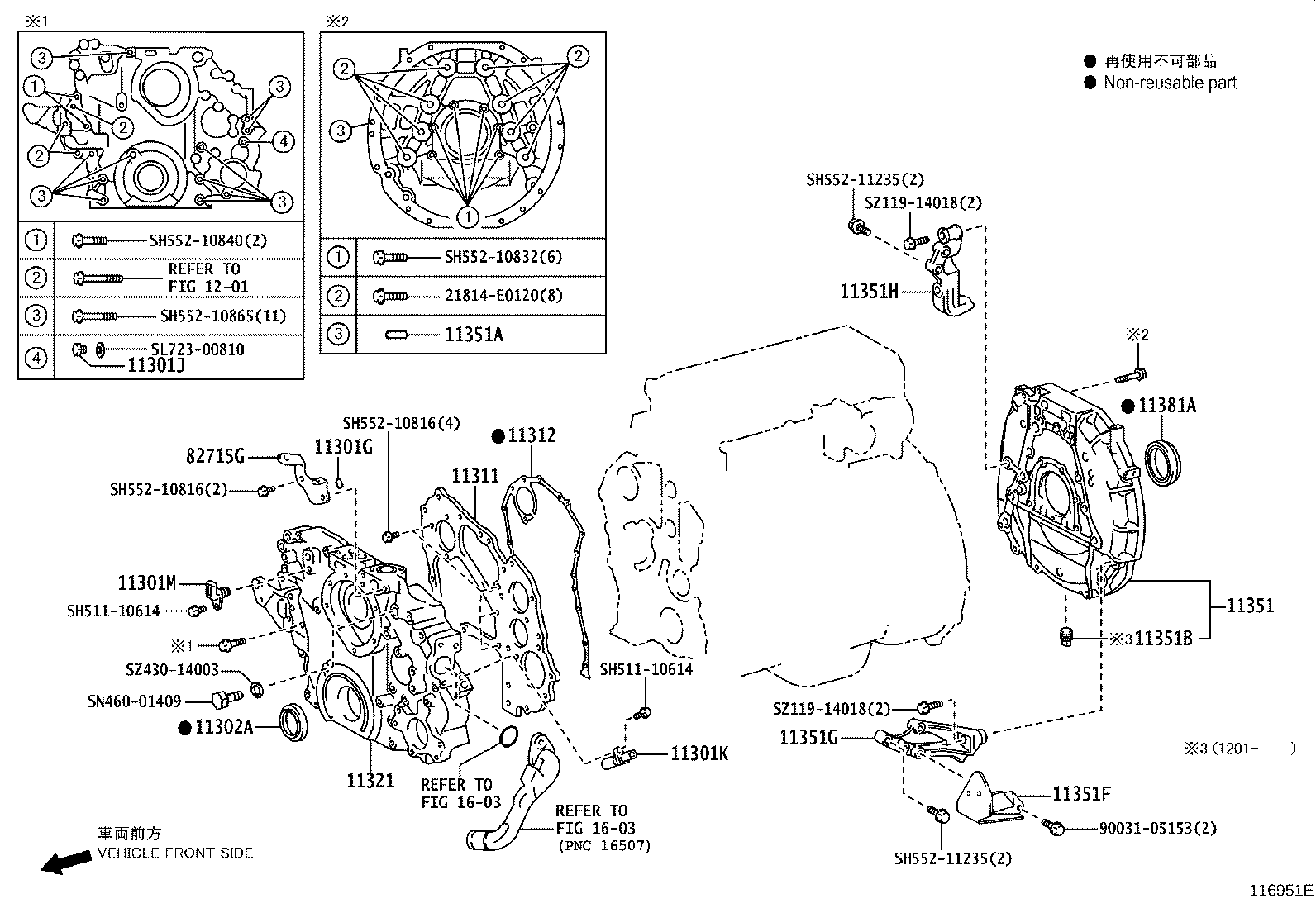

diagram 11301G 11301J 11301K 11301M 11302A 11311 11312 11321 11351 11351A 11351B 11351F 11351G 11351H 11381A 1201 1603 1603 21814E0120 82715G 9003105153 SH51110614 SH51110614 SH55210816 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SL72300810 SN46001409 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
SN741-00253

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
SZ341-08001

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
SN460-00807

N04C..XKC605,645,655,XKU60#,64#,65#

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SZ313-58002

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
SZ313-58001

N04C..XKC605,645,655,XKU60#,64#,65#

 1
11311 - PLATE, FRONT END
S1140-51090

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11321 - CASE, TIMING GEAR
11310-E0141

N04C..XKC605,645,655,XKU60#,64#,65#

 1
11310-E0150

N04C..XKC605,645,655,XKU60#,64#,65#

 1
11310-E0151

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11351 - HOUSING, FLYWHEEL
11308-E0750

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11351-E0J00

N04C..XKC605,645,655,XKU60#,64#,65#

 1
11351A - PIN, STRAIGHT(FOR FLYWHEEL HOUSING)
SM212-00824

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING)
SN491-01708

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)
33119-37070

N04C..XKU600,640,650

 1
33119-37100

N04C..XKU650..T4;N04C..XKU600..T5..30T..CBU;N04C..XKU600,640..DM6,T3,T4;N04C..XKU600,650..(T3,T5)..IV3

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
11353-E0160

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
11381A - SEAL, ENGINE REAR OIL
SZ311-00002

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
82715G - BRACKET, WIRING HARNESS CLAMP
82715-E0X90

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
82715-3VL60

XKC605,645,655,XKU60#,64#,65#

 1
Common parts
21814-E0120
90031-05153
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SL723-00810
SN460-01409
SZ119-14018
SZ430-14003
