XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

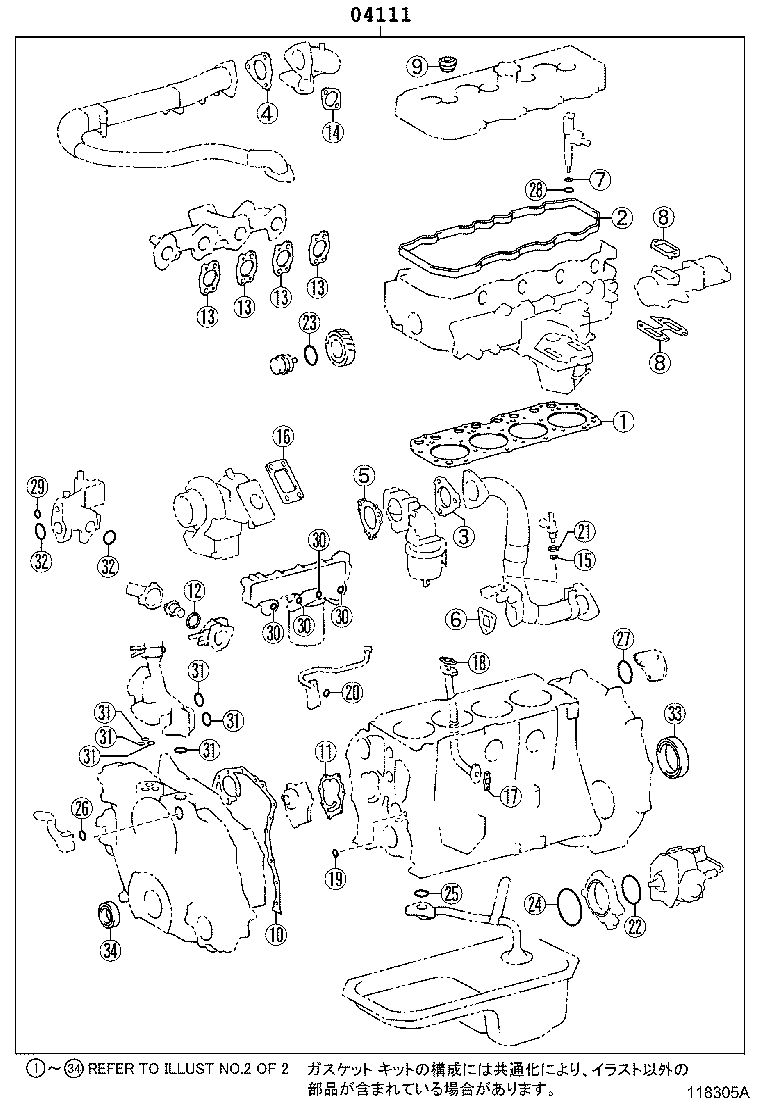

ILLUST NO. 1 OF 2(1107-1705)

Click highlighted areas on diagram

diagram 04111
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-E0D32

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D30

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D31

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D33

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
04111-E0D34

N04C..XKC605,645,655,XKU60#,64#,65#

 1

ILLUST NO. 2 OF 2(1107-1705)

Click highlighted areas on diagram

diagram 04111 1104 1104 1104 1105 1105 1106 1106 1106 1106 1201 1201 1302 1501 1501 1503 1603 1603 1603 1701 1701 1701 1701 1702 1702 2201 2201 2201 2201 2202 2202 2501 2501 2501 4711
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-E0D32

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D30

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D31

N04C..XKC605,645,655,XKU60#,64#,65#

 1
04111-E0D33

N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4

 1
04111-E0D34

N04C..XKC605,645,655,XKU60#,64#,65#

 1
