XKU650-TKUQC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

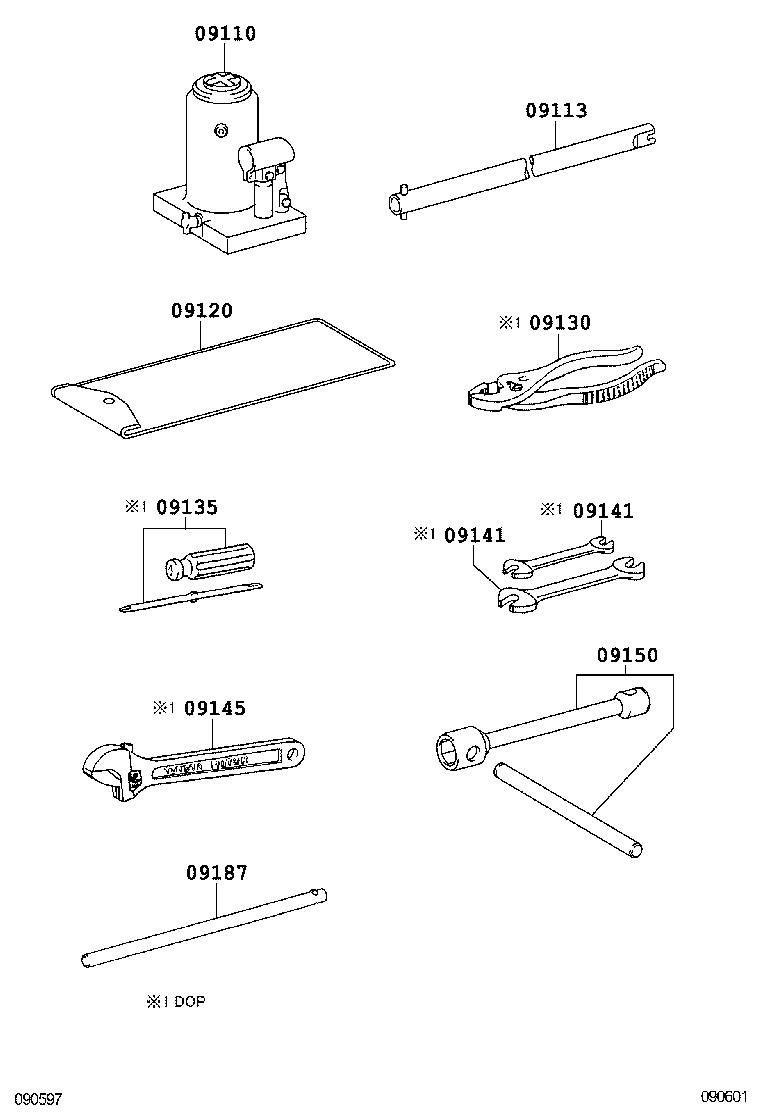

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09145 09150 09187
Part # Description Qty Price
09110 - JACK ASSY
09111-37282

XKU600..IV5;XKU600,640,650..30T

 1
09111-37283

XKU600..IV5;XKU600,640..30T;XKU650..T4..30T;XKU650..T3..30T..IV3

 1
09113 - HANDLE, JACK
09113-0W030

XKC655..T4..IV3;XKC605,645,XKU60#,64#,65#..IV3

 1
09120 - BAG, TOOL
09120-37031

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
09130 - PLIERS
99913-11500

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

ﾂｰﾙ(DOP)−ﾌﾟﾗｲﾔ

 1
09135 - DRIVER, SCREW
99915-10700

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ

 1
09141 - SPANNER
99914-10810

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

8 X 10,ﾂｰﾙ(DOP)−ｽﾊﾟﾅ

 1
99914-11214

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

12 X 14,ﾂｰﾙ(DOP)−ｽﾊﾟﾅ

 1
09141 - SPANNER
99914-10810

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

8 X 10,ﾂｰﾙ(DOP)−ｽﾊﾟﾅ

 1
99914-11214

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

12 X 14,ﾂｰﾙ(DOP)−ｽﾊﾟﾅ

 1
09145 - WRENCH, MONKEY
99911-11200

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

ﾂｰﾙ(DOP)−ﾓﾝｷﾚﾝﾁ

 1
09150 - WRENCH, HUB NUT BOX
09150-37030

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-37010

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

 1
