XKU650-TKUQC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2015
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU600,640,650..30T ; (1107- )XKU600,650..DM6,T3,T5..20T

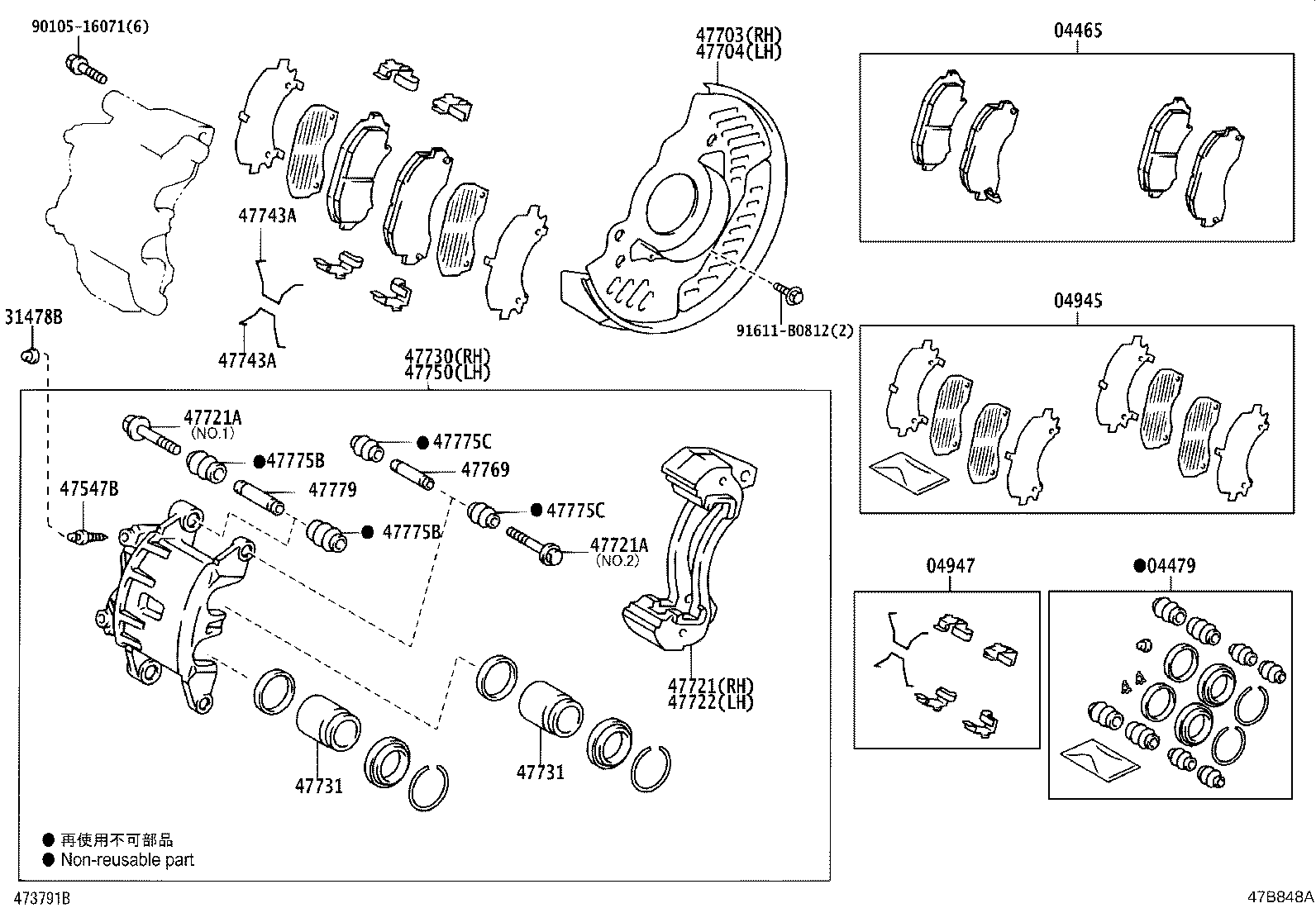

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47721 47721A 47721A 47722 47730 47731 47731 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9010516071 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37250

XKU650..T3..CBU;XKU60#..T5..20T..CBU

ﾏｰｸ AK NS265

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
0447B-37021

XKU650..T3..CBU;XKU60#..T5..20T..CBU

 2
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37030

XKU600,640,650..30T;XKU60#,65#..(DM6,T3,T5)..20T

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
0494A-37020

XKU60#,64#,65#

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

XKC605,645,655,XKU60#,64#,65#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

XKU60#,64#,65#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37030

XKU600,640,650

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37030

XKU600,640,650

 1
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37030

XKU600,640,650..30T;XKU600,650..(DM6,T3,T5)..20T

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XKU60#,64#,65#

*12−1.25PX75−30,NO.1

 4
90119-08B87

XKU60#,64#,65#

*8−1.25PX59−27,NO.2

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XKU60#,64#,65#

*12−1.25PX75−30,NO.1

 4
90119-08B87

XKU60#,64#,65#

*8−1.25PX59−27,NO.2

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37020

XKU600,640,650..30T;XKU600,650..(DM6,T3,T5)..20T

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37030

XKU600,640,650..30T;XKU600,650..(DM6,T3,T5)..20T

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XKU60#,64#,65#

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XKU60#,64#,65#

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XKU60#,64#,65#

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XKU60#,64#,65#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37030

XKU600,640,650..30T;XKU600,650..(DM6,T3,T5)..20T

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

XKU60#,64#,65#

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36050

XKU60#,64#,65#

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36050

XKU60#,64#,65#

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36040

XKU60#,64#,65#

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36040

XKU60#,64#,65#

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

XKU60#,64#,65#

 4
Common parts
90105-16071
91611-B0812
