XKU650-TKUQC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2015
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

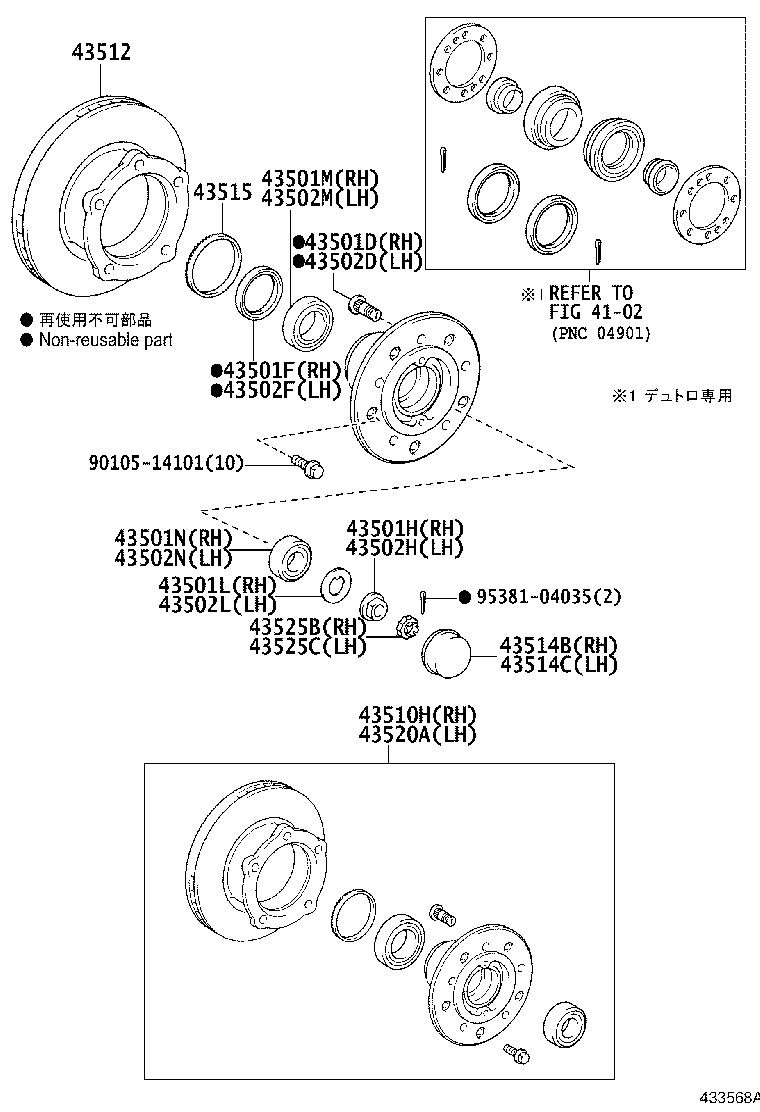

Click highlighted areas on diagram

diagram 4102 43501D 43501F 43501H 43501L 43501M 43501N 43502D 43502F 43502H 43502L 43502M 43502N 43510H 43512 43514B 43514C 43515 43520A 43525B 43525C 9010514101 9538104035
Part # Description Qty Price
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68003

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-28001

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-29001

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-50069

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-35105

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68003

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-28001

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-29001

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-50069

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-35105

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39205

XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43512 - DISC, FRONT
43512-37090

XKU600,640,650..30T;XKU60#,65#..(DM6,T3,T5)..20T

 2
43512-37091

XKU650..T3..CBU;XKU60#..T5..20T..CBU

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-37030

XKC605,645,655,XKU60#,64#,65#

 1
43514-37050

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-37030

XKC605,645,655,XKU60#,64#,65#

 1
43514-37050

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43515 - ROTOR, SKID CONTROL, FRONT
43515-37010

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 2
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39185

XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-37010

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-37010

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

 1
Common parts
90105-14101
95381-04035
Linked diagrams
4102
