XKU645-TQVQX3 (2019)
Toyota Dyna/Toyoace Hv

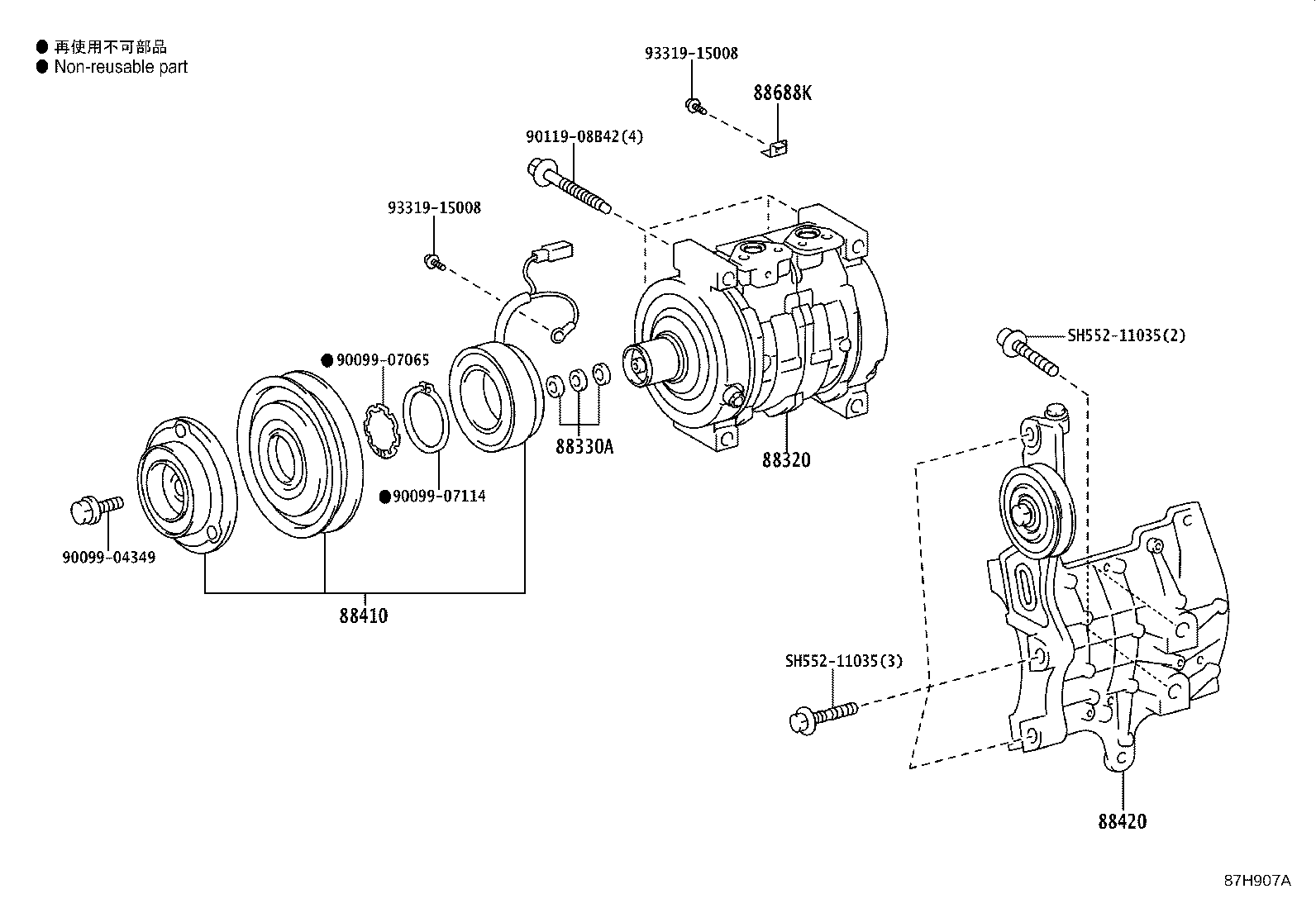

ILLUST NO. 1 OF 2(1905- )DCRWD
ｺﾝﾌﾟﾚｯｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37320 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
| SH552-11035 | ||||
ILLUST NO. 2 OF 2(1905- )DCRWD..IV3
ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78110 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603-78110 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37220 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37230 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37231 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37231 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37230 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37220 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37230 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37231 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37231 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37230 |
XKC605,XKU605,645,655..DCRWD..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88431-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88431-37272 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88431-37272 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88431-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88431-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88431-37272 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88431-37272 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88431-37271 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88469C - SPACER | ||||
| 65167-37040 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 65167-37040 |
XKC605,XKU605,645,655..DCRWD..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90301-83001 | ||||
| 91551-80816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
