XKU605A-TYVMX5 (2019)
Toyota Dyna/Toyoace Hv

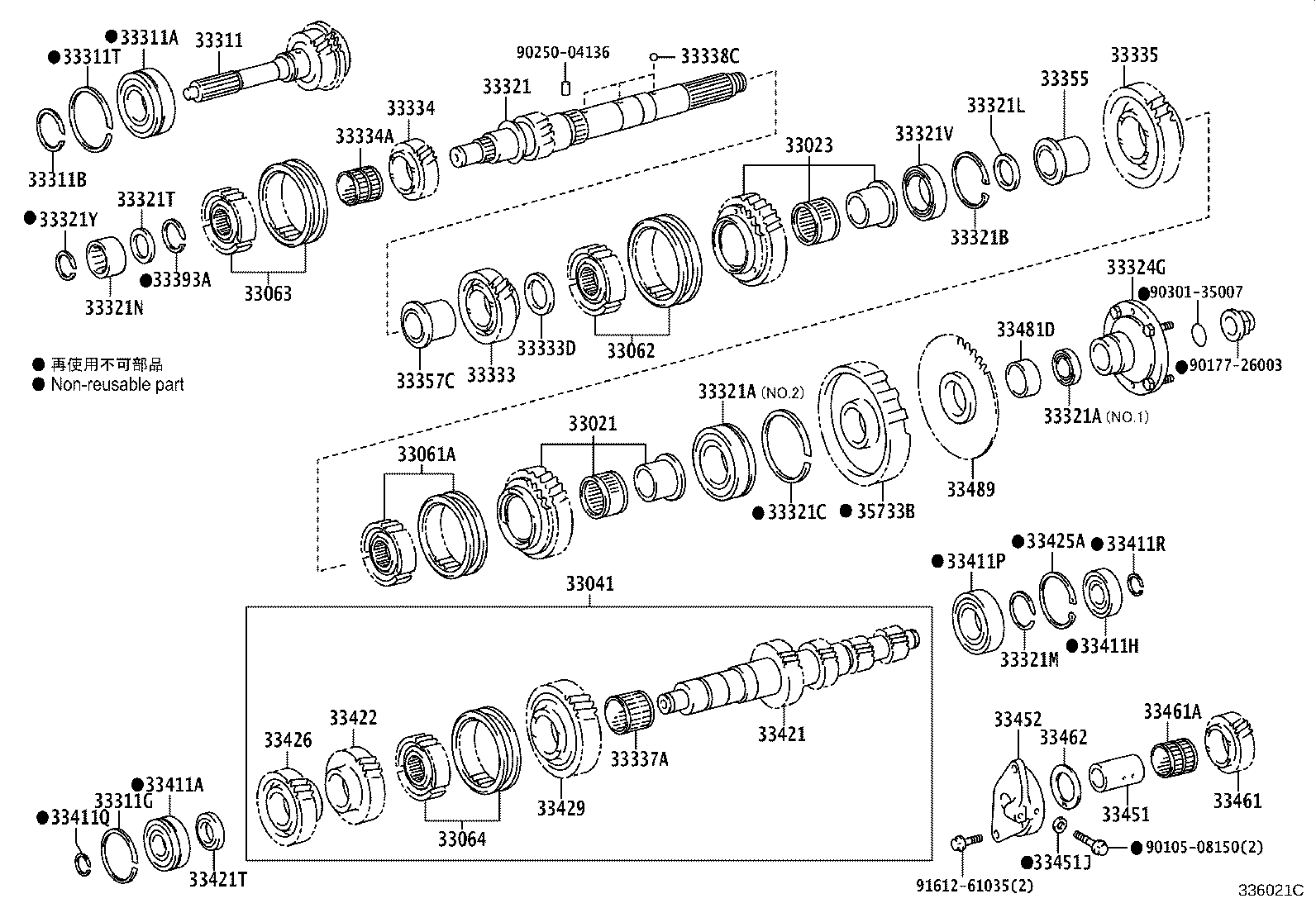

ILLUST NO. 1 OF 2(1905- )DCRWD
RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33021 - GEAR SET, REVERSE | ||||
| 33021-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33023 - GEAR SET, 2ND | ||||
| 33023-37050 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33041 - GEAR SET, COUNTER | ||||
| 33041-37100 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33061A - SLEEVE SUB-ASSY, TRANSMISSION, NO.1 | ||||
| 33061-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33062 - SLEEVE SUB-ASSY, TRANSMISSION, NO.2 | ||||
| 33062-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33063 - SLEEVE SUB-ASSY, TRANSMISSION, NO.3 | ||||
| 33063-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33064 - SLEEVE SUB-ASSY, TRANSMISSION, NO.4 | ||||
| 33064-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37280 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45032 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42005 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42006 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42004 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42003 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42007 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.75−2.80,MARK 7 |
1 | ||
| 90520-42002 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) | ||||
| 90520-96001 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.41,内径=95.9 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37150 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-42002 |
XKC605,XKU605,645,655..DCRWD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90363-41006 |
XKC605,XKU605,645,655..DCRWD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-42002 |
XKC605,XKU605,645,655..DCRWD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90363-41006 |
XKC605,XKU605,645,655..DCRWD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90521-95002 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.91−2.09 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-99009 |
XKC605,XKU605,645,655..DCRWD 内径=106.1,外径=115.64 |
1 | ||
| 33321L - SHIM (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90564-50348 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.35,MARK 01 |
1 | ||
| 90564-50351 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.50,MARK 04 |
1 | ||
| 90564-50356 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.75,MARK 09 |
1 | ||
| 90564-50355 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.70,MARK 08 |
1 | ||
| 90564-50350 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.45,MARK 03 |
1 | ||
| 90564-50354 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.65,MARK 07 |
1 | ||
| 90564-50352 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.55,MARK 05 |
1 | ||
| 90564-50353 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.60,MARK 06 |
1 | ||
| 90564-50357 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.80,MARK 10 |
1 | ||
| 90564-50358 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.85,MARK 11 |
1 | ||
| 90564-50349 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.40,MARK 02 |
1 | ||
| 90564-50359 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.90,MARK 12 |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-47016 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.68,ﾏｰｸ 4 |
1 | ||
| 90520-47015 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.62,ﾏｰｸ 3 |
1 | ||
| 90520-47013 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.50,ﾏｰｸ 1 |
1 | ||
| 90520-47014 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.56,ﾏｰｸ 2 |
1 | ||
| 90520-47017 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.74,ﾏｰｸ 5 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90364-30017 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-30015 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90365-50004 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33321Y - RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING) | ||||
| 90520-27095 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.93,ﾏｰｸ 4 |
1 | ||
| 90520-27099 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.17,ﾏｰｸ 8 |
1 | ||
| 90520-27092 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.75,ﾏｰｸ 1 |
1 | ||
| 90520-27098 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.11,ﾏｰｸ 7 |
1 | ||
| 90520-27093 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.81,ﾏｰｸ 2 |
1 | ||
| 90520-27097 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.05,ﾏｰｸ 6 |
1 | ||
| 90520-27094 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.87,ﾏｰｸ 3 |
1 | ||
| 90520-27096 |
XKC605,XKU605,645,655..DCRWD 厚さ=1.99,ﾏｰｸ 5 |
1 | ||
| 33324G - FLANGE, OUTPUT SHAFT COMPANION (MTM) | ||||
| 33309-37031 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-37110 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33333D - SPACER (FOR 3RD GEAR) | ||||
| 90560-59001 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-48020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37120 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR) | ||||
| 90364-55005 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
XKC605,XKU605,645,655..DCRWD |
3 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33357C - RACE, 3RD GEAR BEARING, INNER | ||||
| 33357-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-41024 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.27,ﾏｰｸ E |
1 | ||
| 90520-41025 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.32,ﾏｰｸ F |
1 | ||
| 90520-41027 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.42,ﾏｰｸ H |
1 | ||
| 90520-41029 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.52,ﾏｰｸ K |
1 | ||
| 90520-41028 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.47,ﾏｰｸ J |
1 | ||
| 90520-41026 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.37,ﾏｰｸ G |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90363-30085 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-27004 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-49001 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-27053 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27055 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27100 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.40−2.45,ﾏｰｸ G |
1 | ||
| 90520-27058 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27056 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 90520-27054 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27101 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.75−2.80,ﾏｰｸ H |
1 | ||
| 90520-27057 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-24041 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.51−2.56,ﾏｰｸ B |
1 | ||
| 90520-24044 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.69−2.74,ﾏｰｸ E |
1 | ||
| 90520-24043 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.63−2.68,ﾏｰｸ D |
1 | ||
| 90520-24042 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.53−2.62 ﾏｰｸ C |
1 | ||
| 90520-24040 |
XKC605,XKU605,645,655..DCRWD 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37210 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33421T - SPACER, COUNTER GEAR | ||||
| 90560-30014 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33422 - GEAR, COUNTER SHAFT 4TH SPEED | ||||
| 33422-37030 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33425A - RING, SHAFT SNAP (FOR COUNTER GEAR) | ||||
| 90521-95002 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33426 - GEAR, COUNTER SHAFT DRIVE | ||||
| 33421-37190 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33429 - GEAR, COUNTERSHAFT 6TH | ||||
| 33429-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37070 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-37031 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37060 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| 90364-37019 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-37060 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 33489 - ROTOR, SPEED SENSOR | ||||
| 33489-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35733B - GEAR, PARKING LOCK | ||||
| 35733-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90105-08150 | ||||
| 90177-26003 | ||||
| 90250-04136 | ||||
| 90301-35007 | ||||
| 91612-61035 | ||||

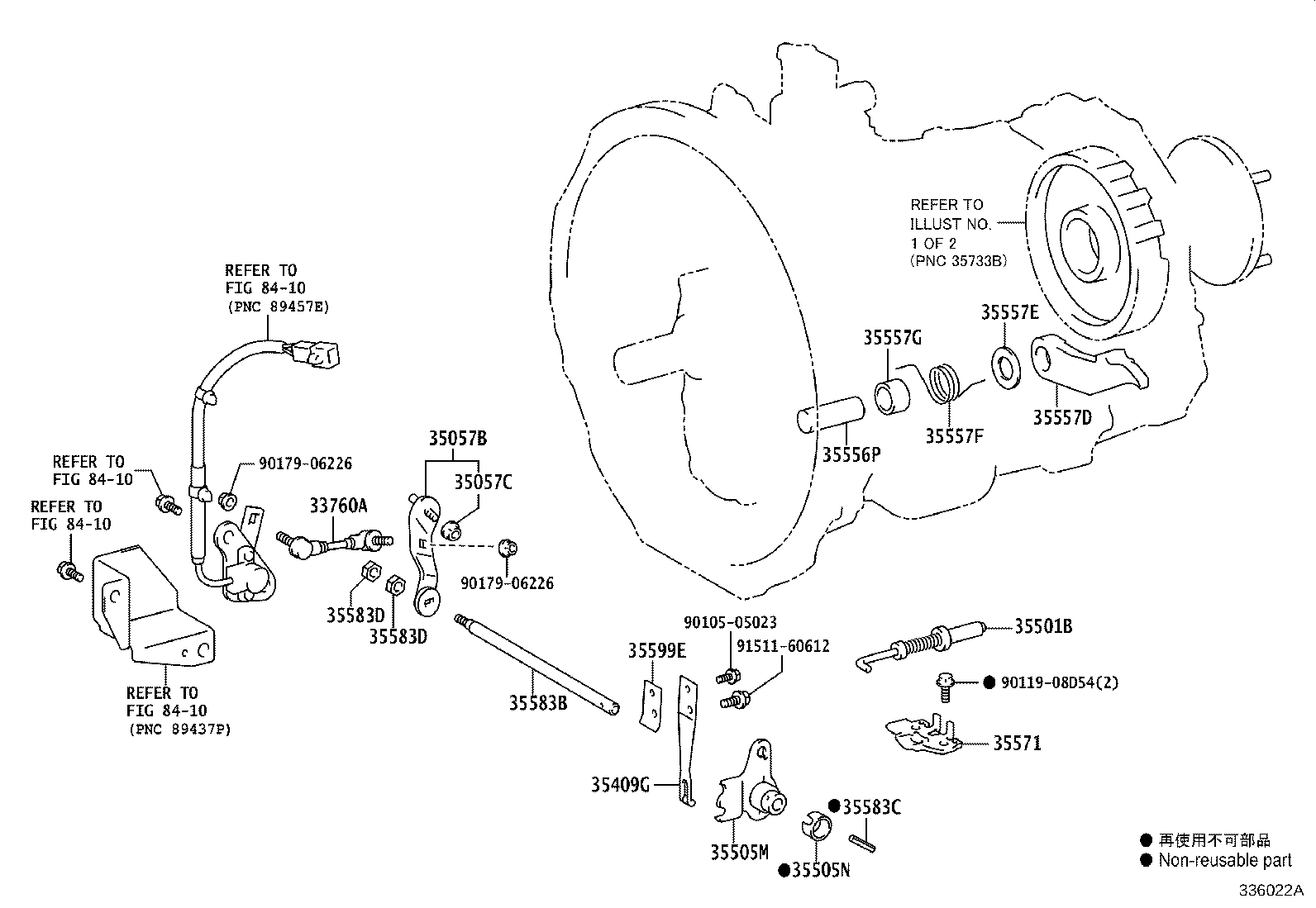

ILLUST NO. 2 OF 2(1905- )DCRWD
RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33760A - ROD ASSY, CONNECTING, NO.1 | ||||
| 33760-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35057B - LEVER SUB-ASSY, PARKING LOCK | ||||
| 35057-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35057C - NUT, LOCK(FOR PARKING LOCK LEVER) | ||||
| 94185-60800 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35409G - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35501B - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-37020 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35505M - LEVER SUB-ASSY, PARKING LOCK, NO.1 | ||||
| 35505-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35505N - SPACER(FOR PARKING LOCK LEVER NO.1) | ||||
| 90560-20008 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35556P - SHAFT, PARKING LOCK PAWL | ||||
| 35556-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35557D - PAWL, PARKING LOCK | ||||
| 35557-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35557E - WASHER, PLATE(FOR PARKING LOCK PAWL) | ||||
| 90201-19014 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35557F - SPRING, TORSION(FOR PARKING LOCK PAWL) | ||||
| 90508-34001 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35557G - SPACER(FOR PARKING LOCK PAWL) | ||||
| 90560-19016 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35571 - BRACKET, PARKING SLEEVE | ||||
| 35571-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35583B - SHAFT, PARKING LOCK | ||||
| 35583-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35583C - PIN, SLOTTED SPRING(FOR PARKING LOCK SHAFT) | ||||
| 90254-04012 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| 35583D - NUT(FOR PARKING LOCK SHAFT) | ||||
| 94110-50800 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 35583D - NUT(FOR PARKING LOCK SHAFT) | ||||
| 94110-50800 |
XKC605,XKU605,645,655..DCRWD |
2 | ||
| 35599E - COVER, MANUAL DETENT SPRING | ||||
| 35599-37010 |
XKC605,XKU605,645,655..DCRWD |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90119-08D54 | ||||
| 90179-06226 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
