XKU605-TQVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )DCRWD

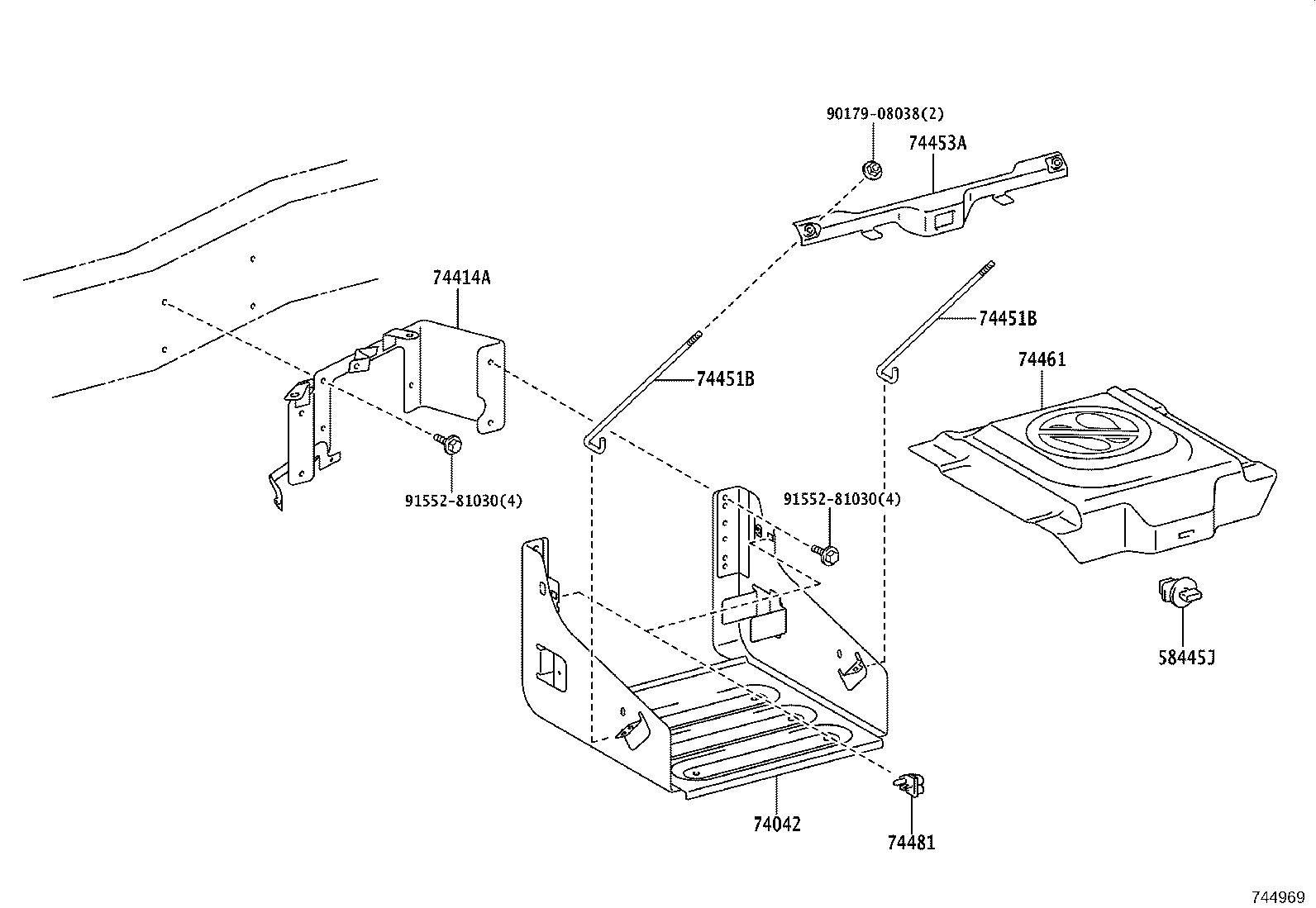

Click highlighted areas on diagram

diagram 58445J 74042 74414A 74451B 74451B 74453A 74461 74481 9017908038 9155281030 9155281030
Part # Description Qty Price
58445J - LOCK, BATTERY SERVICE HOLE COVER
58445-37020

XKC605,XKU605,645,655..DCRWD

 1
74042 - BRACKET SUB-ASSY, BATTERY
74042-37420

XKC605,XKU605,645,655..DCRWD..(IV3,IV5)

ﾊﾞｯﾃﾘ−80D26L X 2

 1
74042-37450

XKC605,XKU605,645,655..DCRWD

 1
74414A - BRACKET, BATTERY, NO.1
74401-37240

XKC605,XKU605,645,655..DCRWD

 1
74451B - BOLT, BATTERY CLAMP
74451-37022

XKC605,XKU605,645,655..DCRWD

 2
74451B - BOLT, BATTERY CLAMP
74451-37022

XKC605,XKU605,645,655..DCRWD

 2
74453A - BAR, BATTERY SET PLATE
74453-37090

XKC605,XKU605,645,655..DCRWD

 1
74461 - COVER, BATTERY
74461-37130

XKC605,XKU605,645,655..DCRWD

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-37020

XKC605,XKU605,645,655..DCRWD

 2
Common parts
90179-08038
91552-81030
