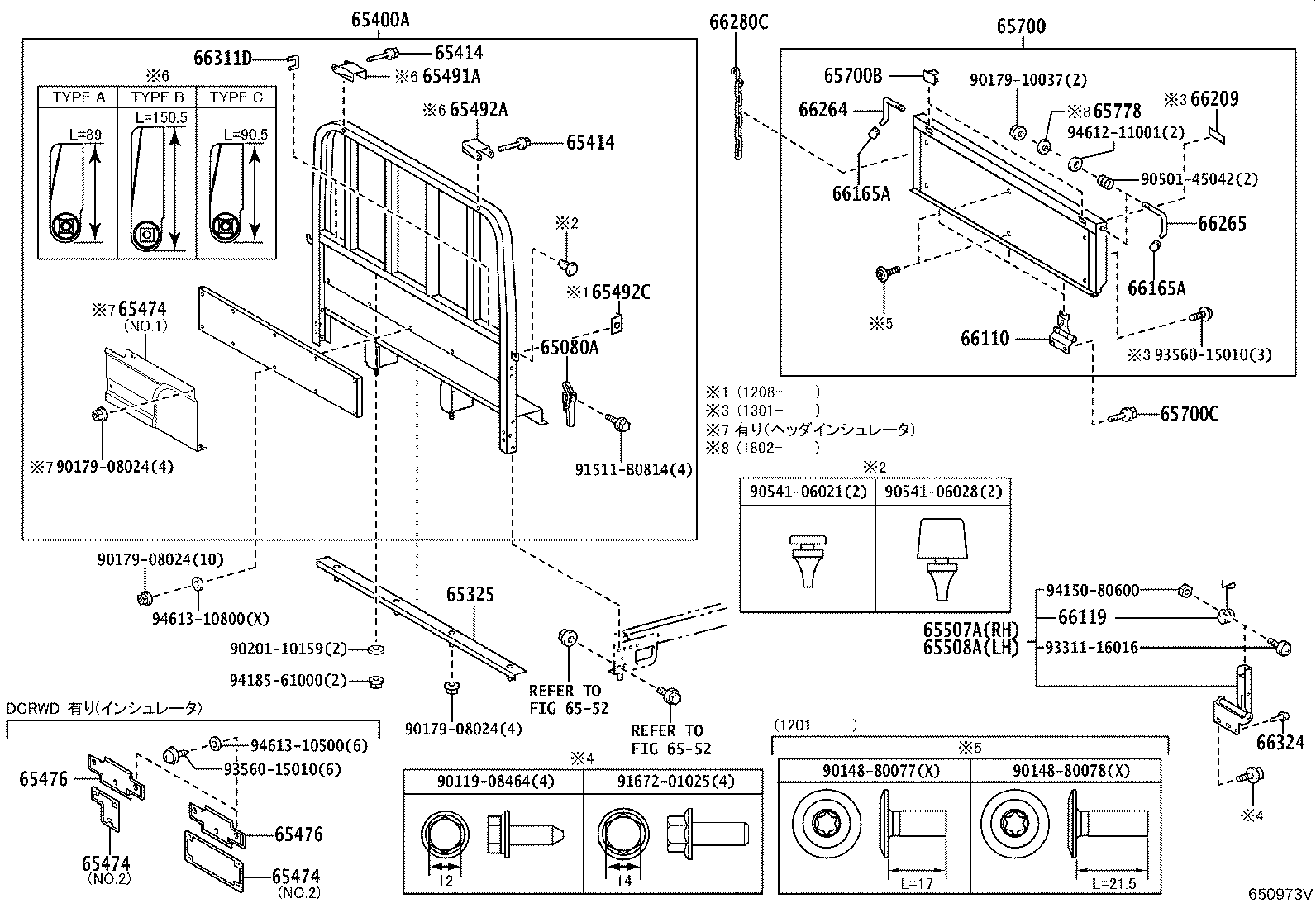

Toyota Dyna/toyoace hv XKU605 REAR BODY GUARD FRAME & TAIL GATE

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37020	XKC605,XKU60#..CBU	07/2011 - 05/2017	1
65400A - GUARD ASSY, REAR BODY
65400-37M50	XKC605,XKU60#..T4..CBU	07/2011 - 01/2013	1
65400-37T10	XKC605,XKU60#..T4..CBU	01/2013 - 05/2017	1
65414 - STOPPER, GUARD FRAME
91671-00880	XKC605,XKU60#..CBU	07/2011 - 08/2012	2
90119-08913	XKC605,XKU60#..CBU	08/2012 - 05/2017	2
65414 - STOPPER, GUARD FRAME
91671-00880	XKC605,XKU60#..CBU	07/2011 - 08/2012	2
90119-08913	XKC605,XKU60#..CBU	08/2012 - 05/2017	2
65474 - INSULATOR, HEADER
65474-37150	XKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU NO.1	07/2011 - 05/2017	1
65474 - INSULATOR, HEADER
65474-37150	XKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU NO.1	07/2011 - 05/2017	1
65474 - INSULATOR, HEADER
65474-37150	XKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU NO.1	07/2011 - 05/2017	1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-37040	XKC605,XKU60#..CBU TYPE A:ｲﾗｽﾄ参照	07/2011 - 08/2012	1
65491-37010	XKC605,XKU60#..CBU TYPE B:ｲﾗｽﾄ参照	08/2012 - 03/2014	1
65491-25020	XKC605,XKU60#..CBU TYPE C:ｲﾗｽﾄ参照	03/2014 - 05/2017	1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-37020	XKC605,XKU60#..CBU TYPE A:ｲﾗｽﾄ参照	07/2011 - 08/2012	1
65492-37010	XKC605,XKU60#..CBU TYPE B:ｲﾗｽﾄ参照	08/2012 - 03/2014	1
65492-25020	XKC605,XKU60#..CBU TYPE C:ｲﾗｽﾄ参照	03/2014 - 05/2017	1
65492C - RETAINER, FRONT GUARD CUSHION
65492-92701	XKC605,XKU60#..CBU	08/2012 - 05/2017	2
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37050	XKC605,655,XKU60#,65#..CBU	07/2011 - 04/2013	1
65507-37051	XKC605,655,XKU60#,65#..CBU	04/2013 - 05/2017	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37051	XKC605,655,XKU60#,65#..CBU	04/2013 - 05/2017	1
65508-37050	XKC605,655,XKU60#,65#..CBU	07/2011 - 04/2013	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37190	XKC605,XKU60#..CBU	07/2011 - 12/2011	1
65700-37240	XKC605,XKU60#..CBU	01/2013 - 05/2017	1
65700-37191	XKC605,XKU60#..CBU	01/2012 - 01/2013	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464	XKC605,XKU60#..CBU	07/2011 - 05/2017	6
66110 - HINGE ASSY, TAIL GATE
66110-37020	XKC605,XKU60#..CBU	07/2011 - 12/2011	3
66110-37021	XKC605,XKU60#..CBU	01/2012 - 05/2017	3
66119 - SPRING, TAIL GATE CHECK BALL
90035-08024	XKC605,655,XKU60#,65#..CBU 右側	07/2011 - 05/2017	1
90035-08023	XKC605,655,XKU60#,65#..CBU 左側	07/2011 - 05/2017	1
66165A - CAP, GATE LATCH HANDLE
66165-87402	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
66165A - CAP, GATE LATCH HANDLE
66165-87402	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
66209 - PROTECTOR SUB-ASSY, REAR
66243-37060	XKC605,XKU60#..CBU	01/2013 - 05/2017	3
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	1
66280C - CHAIN ASSY, TAIL GATE
66280-37020	XKC605,655,XKU60#,65#..CBU	07/2011 - 03/2014	2
66280-37030	XKC605,655,XKU60#,65#..CBU	04/2014 - 05/2017	2
66311D - HOOK, ROPE
66312-37030	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
66324 - CUSHION, TAIL GATE SIDE
90541-09107	XKC605,655,XKU60#,65#..CBU	07/2011 - 05/2017	2
Common parts
90119-08464
90148-80077
90148-80078
90179-08024
90179-10037
90201-10159
90501-45042
90541-06021
90541-06028
91511-B0814
91672-01025
93311-16016
93560-15010
94150-80600
94185-61000
94612-11001
94613-10500
94613-10800
Linked diagrams
6552

XKU605-TQUMC (2011)

(1107- )XKU605..30T ; (1107- )XKC605,XKU60#..CBU
