XKU605-TPUMC (2011)
Toyota Dyna/Toyoace Hv

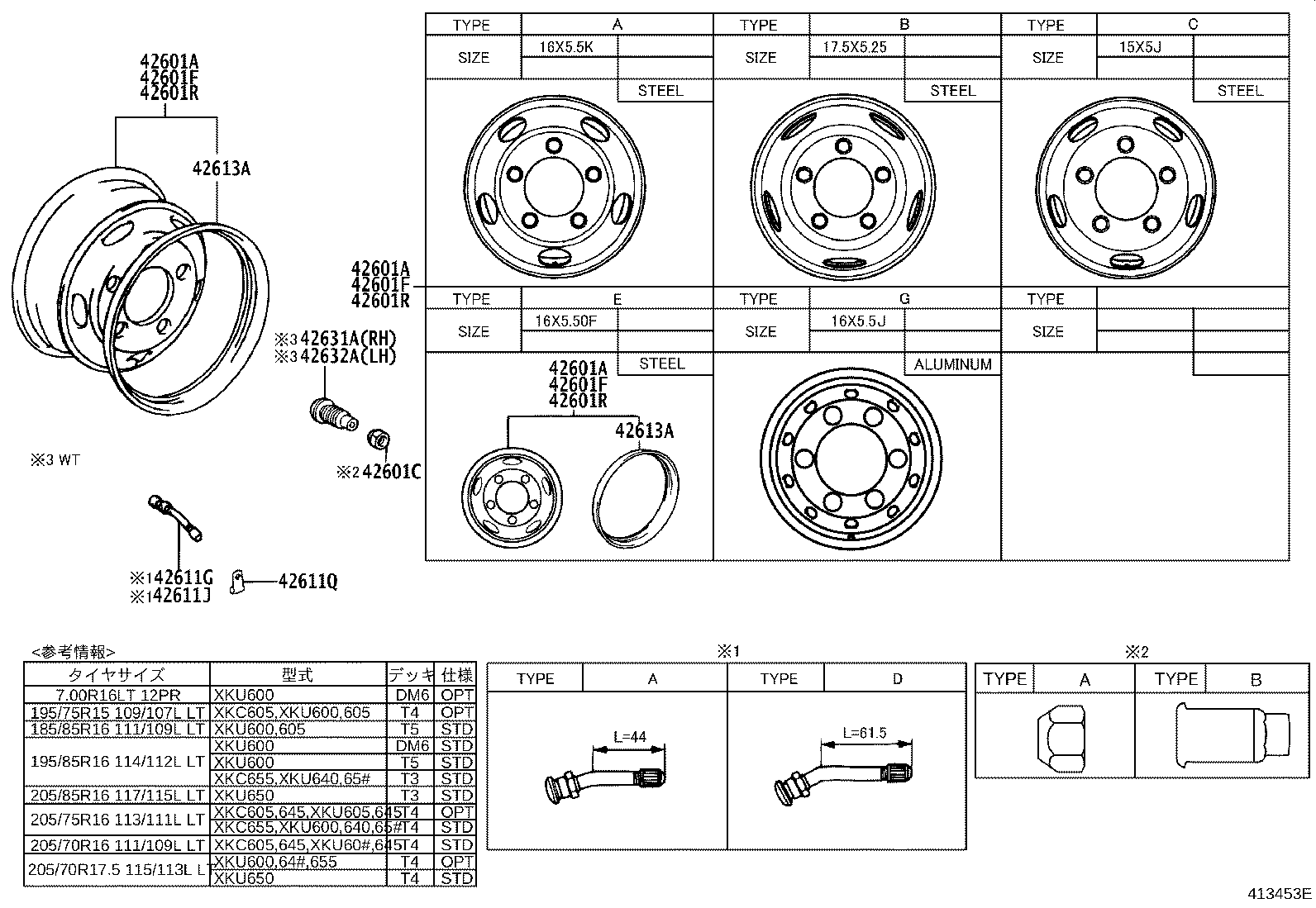

ILLUST NO. 1 OF 4(1107- )
ﾃﾞｨｽｸﾎｲｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 42633-37020 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾘﾔ右側 |
5 | ||
| 43522-37020 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾌﾛﾝﾄ左側 |
5 | ||
| 43522-37010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾌﾛﾝﾄ右側 |
5 | ||
| 42634-37020 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾘﾔ左側 |
5 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-37240 |
XKC655..T3;XKU60#,650..(T3,T5)..20T..CBU 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05026 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 42631A - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
5 | ||
| 42632A - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
5 | ||
ILLUST NO. 2 OF 4(1107- )
ﾌﾛﾝﾄﾎｲｰﾙｷｬｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42618 - RETAINER, WHEEL CAP | ||||
| 42618-36030 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用 |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,ﾘﾔ |
2 | ||
| 42621-36180 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
ILLUST NO. 3 OF 4(1107- )
ﾘﾔﾎｲｰﾙｷｬｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,ﾘﾔ |
2 | ||
| 42621-36180 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,ﾌﾛﾝﾄ |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-37010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,NO.2 |
2 | ||
| 42622-36040 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,NO.1 |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-37010 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,NO.2 |
2 | ||
| 42622-36040 |
XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU ﾎｲｰﾙｷｬｯﾌﾟ−有り(ﾌﾙｷｬｯﾌﾟ),16 OR 17.5ｲﾝﾁ用,NO.1 |
2 | ||
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
| 91651-B0820 | ||||
ILLUST NO. 4 OF 4(1107- )
ﾊﾞﾗﾝｽｳｪｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
