XKU605-TPUMC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2015
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

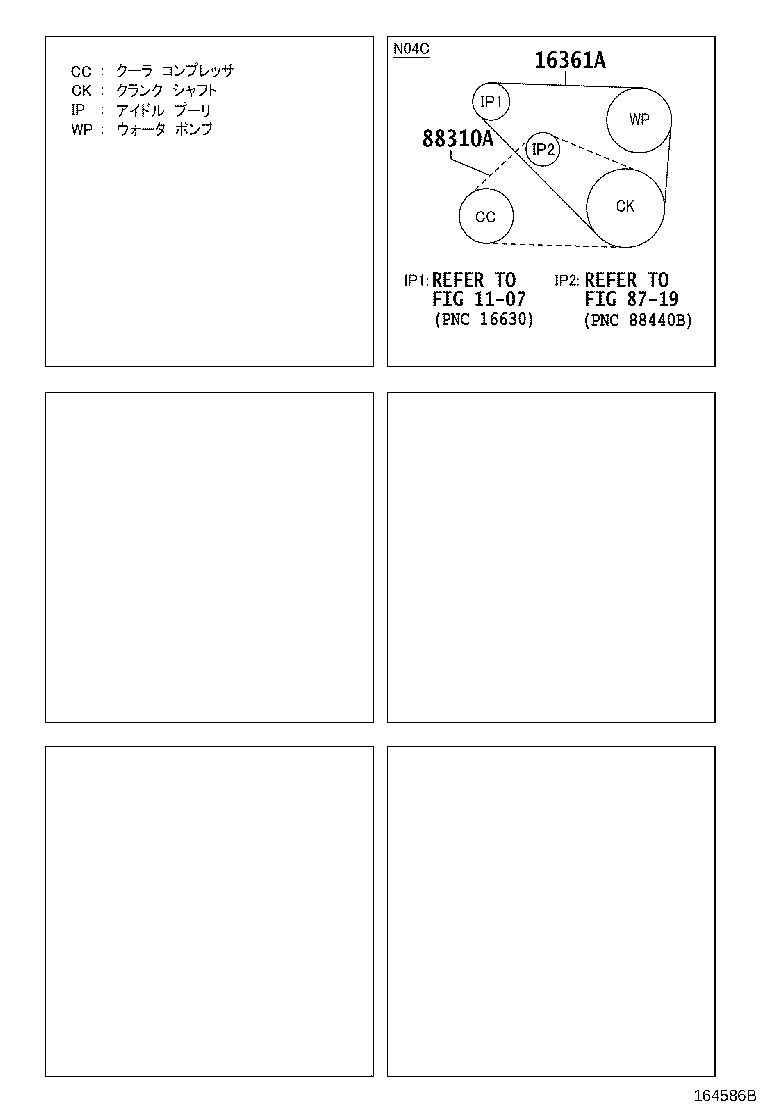

Click highlighted areas on diagram

diagram 1107 16361A 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
SZ910-49181

N04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
S8838-11440

XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU

長さ=1010

 1
Linked diagrams
1107
8719
