XKU600A-TYUMC5 (2011)
Toyota Dyna/Toyoace Hv

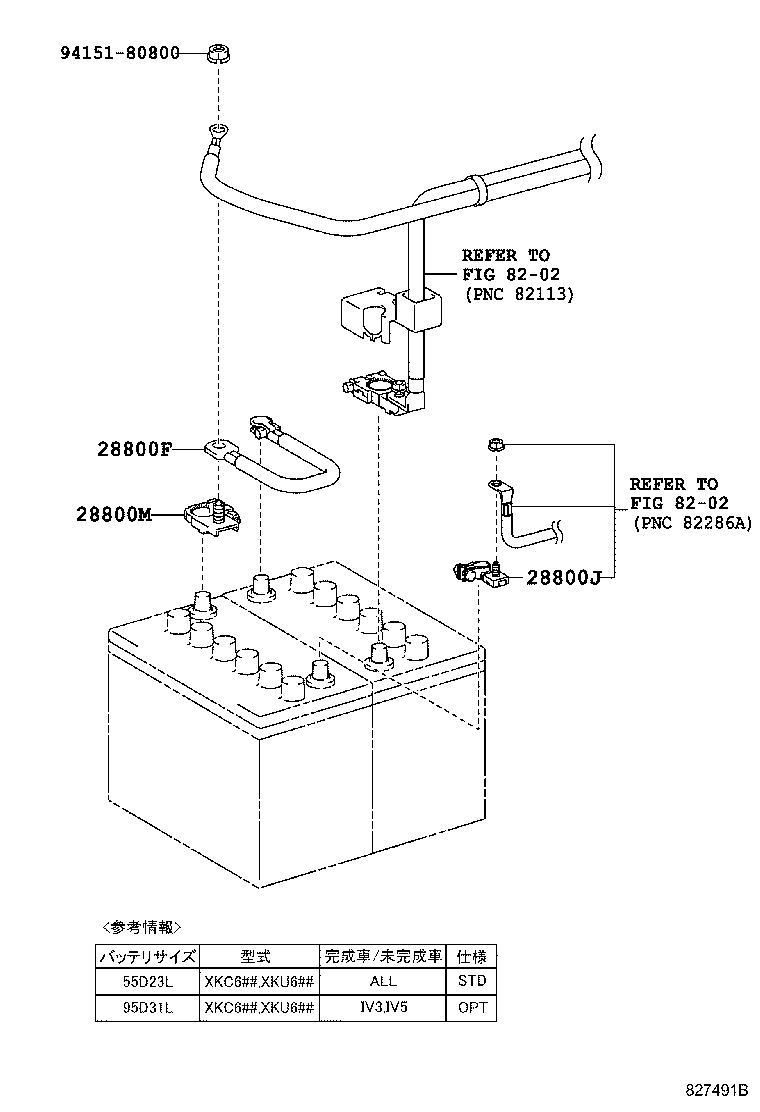

ILLUST NO. 1 OF 4(1107- )XKC605,645,XKU60#,64#..DCRTK
12V ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37230 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06060 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 28800M - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05065 |
N04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

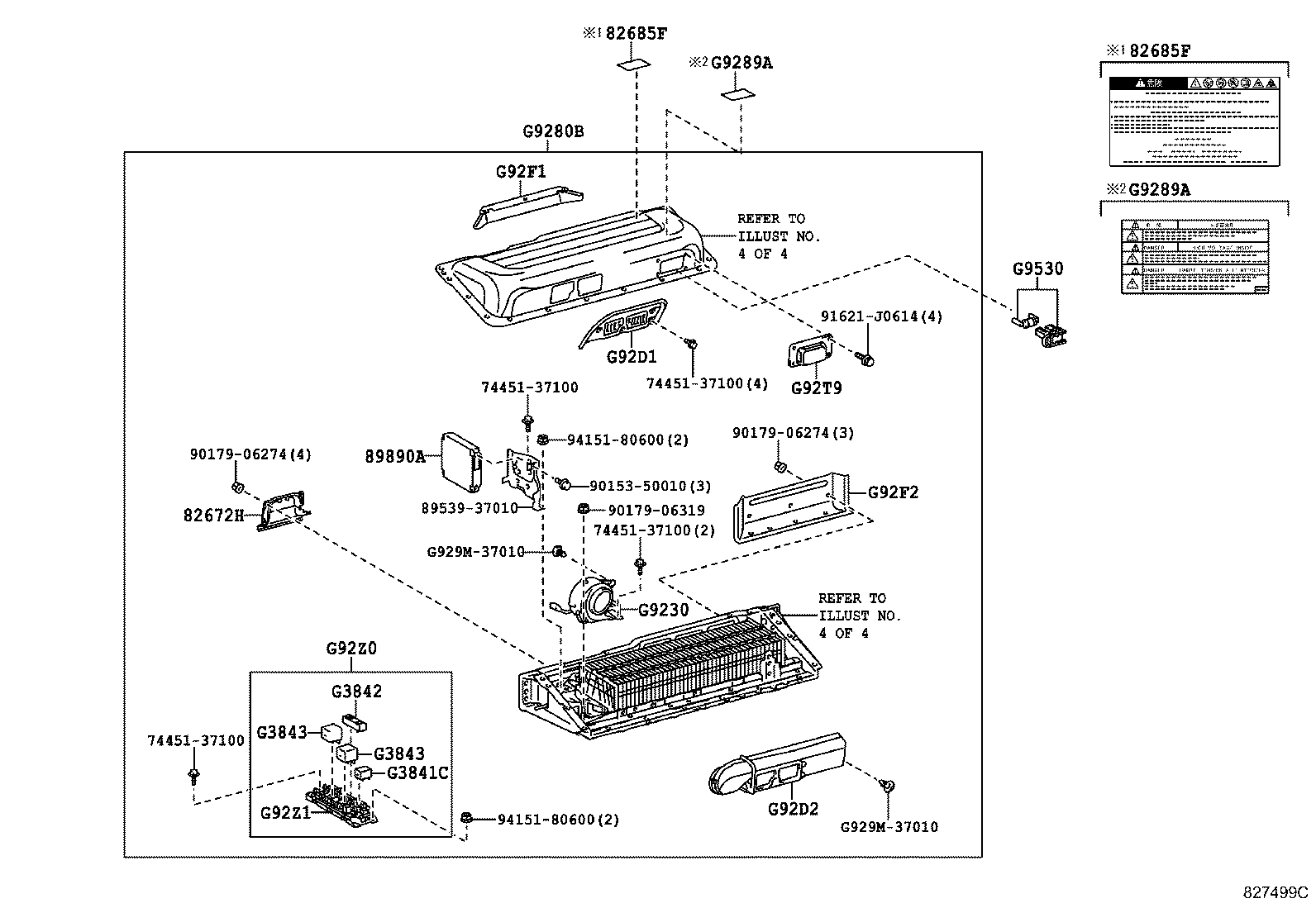

ILLUST NO. 3 OF 4(1107- )DCRTK
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82672H - COVER, JUNCTION BLOCK | ||||
| 82672-37070 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| G9289-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| G9289-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 89890A - COMPUTER ASSY, BATTERY | ||||
| 89890-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 DENSO |
1 | ||
| G3841C - RELAY, SYSTEM MAIN, NO.1 | ||||
| G3841-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G3842 - RESISTOR, SYSTEM MAIN | ||||
| G3842-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G3843 - RELAY, SYSTEM MAIN, NO.2 | ||||
| G3843-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| G3843 - RELAY, SYSTEM MAIN, NO.2 | ||||
| G3843-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9230-37011 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| G9280B - BATTERY ASSY, HV | ||||
| G9280-37060 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| G9280-37031 |
XKC605,645,655,XKU60#,64#,65# |
1 | ||
| G9280-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9289-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9289-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2 | ||||
| G92D2-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92T9 - COVER, HYBRID BATTERY SERVICE PLUG | ||||
| G92T9-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92Z1 - BLOCK, HYBRID BATTERY JUNCTION | ||||
| G92Z1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9530 - PLUG ASSY, HYBRID BATTERY SUPPLY | ||||
| G9530-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 74451-37100 | ||||
| 89539-37010 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90179-06319 | ||||
| 91621-J0614 | ||||
| 94151-80600 | ||||
| G929M-37010 | ||||

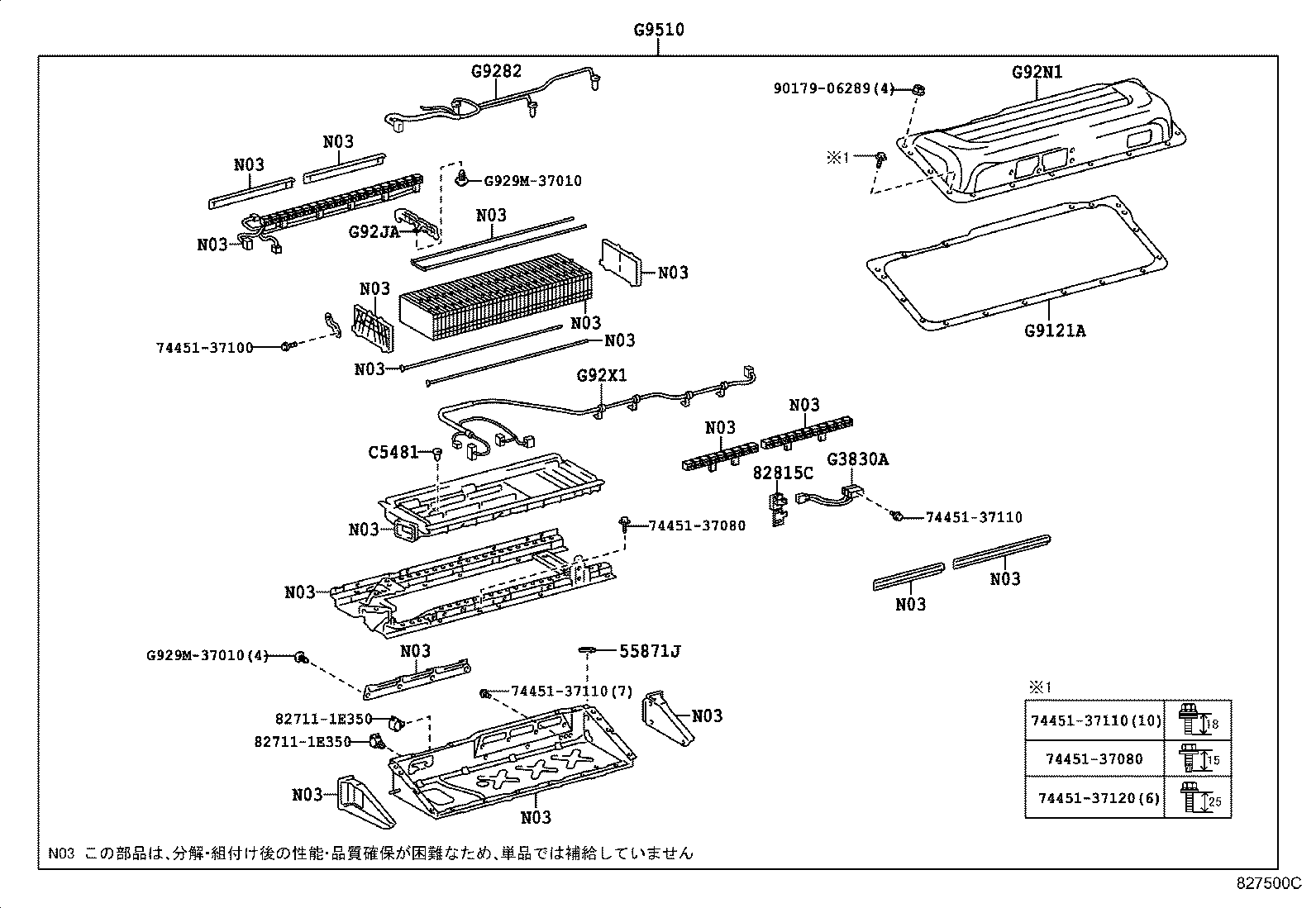

ILLUST NO. 4 OF 4(1107- )DCRTK
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871J - SEAL, AIR DUCT | ||||
| 55871-37190 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
4 | ||
| 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-37090 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| C5481 - VENTILATOR, SIDE | ||||
| C5481-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9121A - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER | ||||
| G9121-37060 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92JA - PLATE, HV BATTERY END, NO.1 | ||||
| G92JA-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92N1 - PANEL, HV BATTERY UPPER COVER | ||||
| G92N1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92X1 - WIRE, HYBRID BATTERY PACK, NO.1 | ||||
| G92X1-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 74451-37080 | ||||
| 74451-37100 | ||||
| 74451-37110 | ||||
| 74451-37120 | ||||
| 82711-1E350 | ||||
| 90179-06289 | ||||
| G929M-37010 | ||||

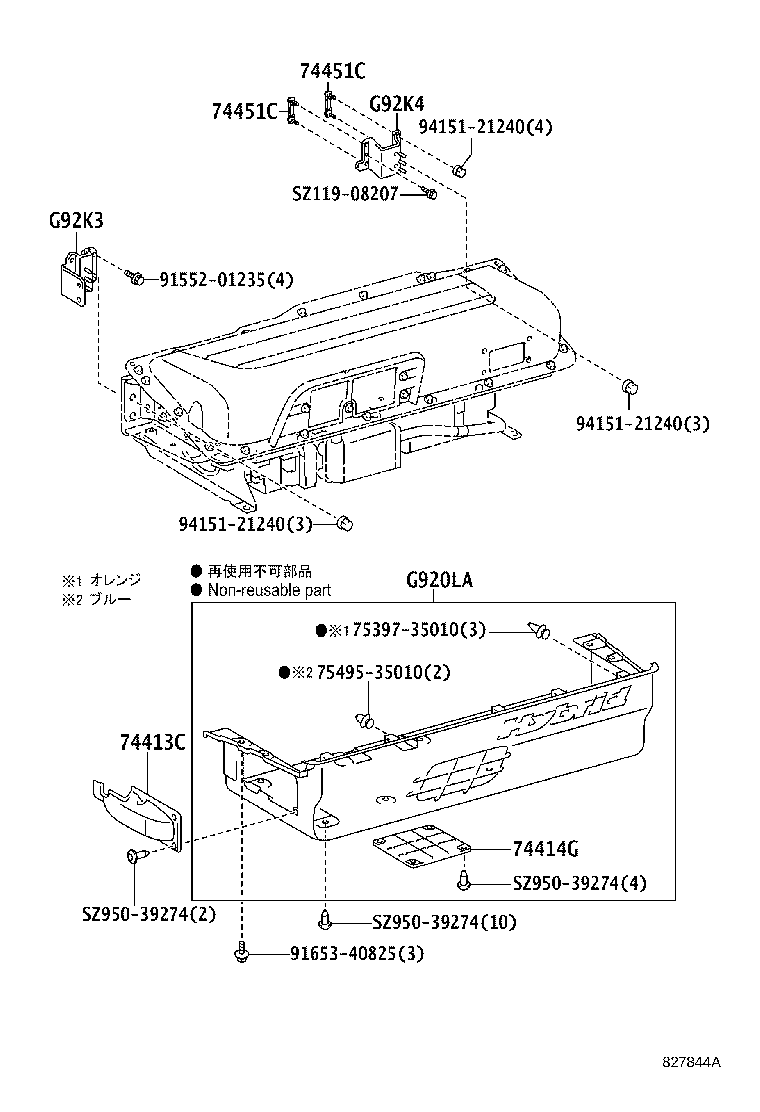

ILLUST NO. 2 OF 4(1107- )DCRTK
HV ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74413C - PANEL, BATTERY CARRIER, FRONT | ||||
| 74413-37100 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 74414G - PANEL, BATTERY CARRIER, RR | ||||
| 74414-37250 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 74451C - PLATE, BATTERY SET | ||||
| 74451-37042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| 74451C - PLATE, BATTERY SET | ||||
| 74451-37042 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
2 | ||
| G920LA - COVER SUB-ASSY, HYBRID BATTERY, LOWER | ||||
| G920L-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92K3 - BRACKET, HYBRID BATTERY CARRIER, NO.1 | ||||
| G92K3-37071 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| G92K4 - BRACKET, HYBRID BATTERY CARRIER, NO.2 | ||||
| G92K4-37011 |
XKU655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,655,XKU600,650..DM6,T4 |
1 | ||
| Common parts | ||||
| 75397-35010 | ||||
| 75495-35010 | ||||
| 91552-01235 | ||||
| 91653-40825 | ||||
| 94151-21240 | ||||
| SZ119-08207 | ||||
| SZ950-39274 | ||||
