XKU600A-TYUMC5 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCRTK

Click highlighted areas on diagram

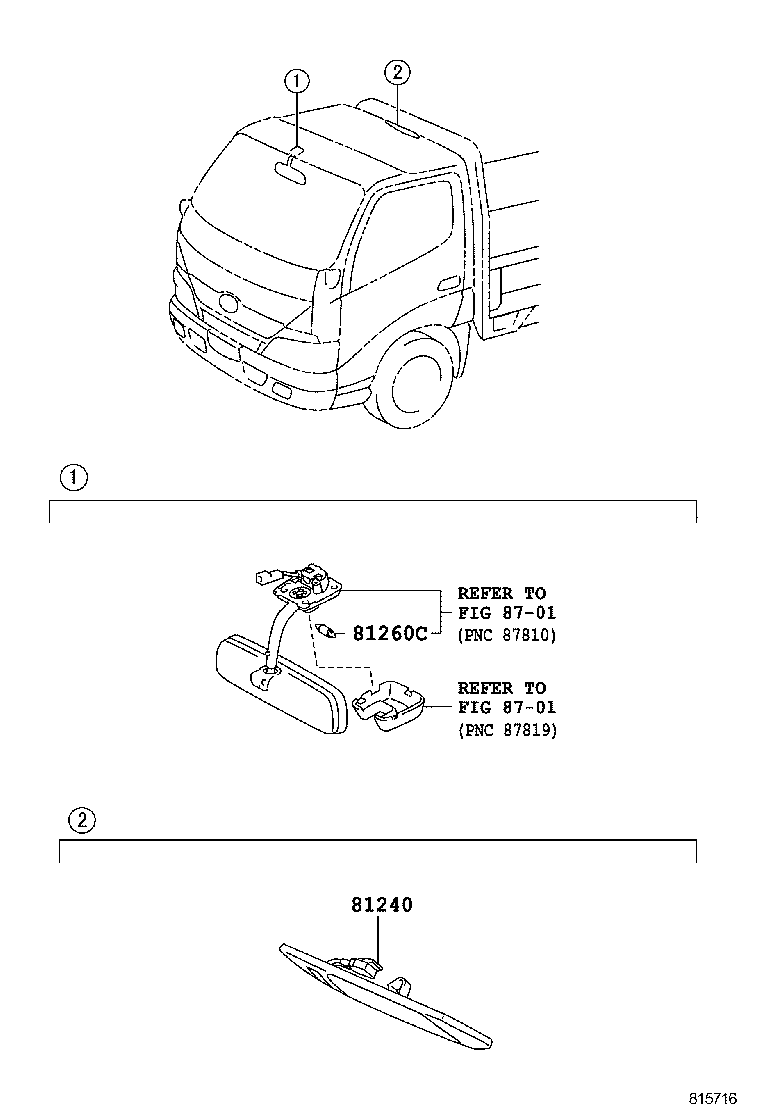

diagram 81240 81260C 8701 8701
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-37100B0

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

ﾙｰﾑﾗﾝﾌﾟ−有り(LED照明),GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-16019

XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4

24V 10W

 1
Linked diagrams
8701
