XKU600A-TYUMC5 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

Click highlighted areas on diagram

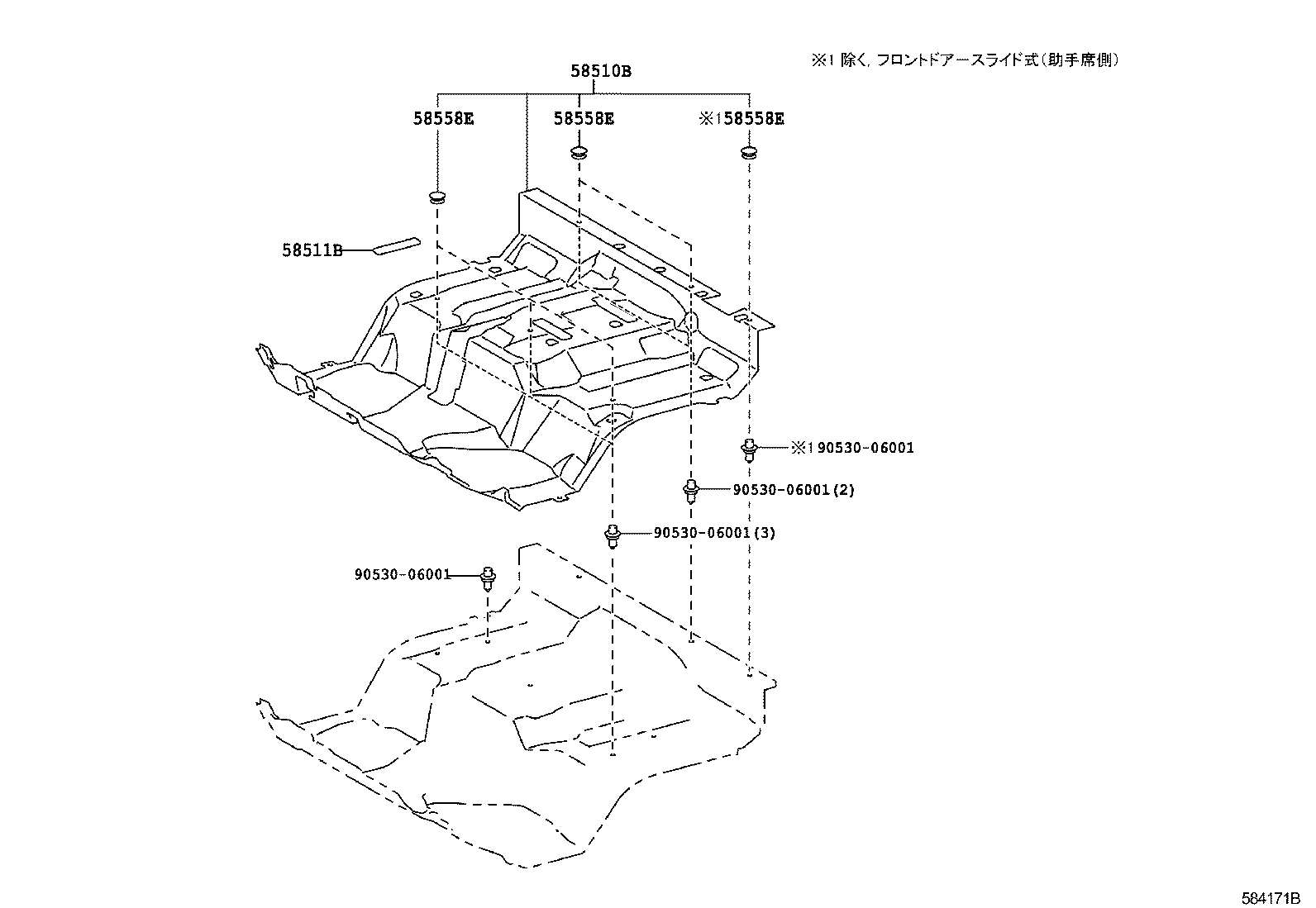

diagram 58510B 58511B 58558E 58558E 58558E 9053006001 9053006001 9053006001 9053006001
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-37Q40B0

XKU600..IV5

GRAY,TRIM1#

 1
58510-37M00B1

XKU600..IV5

GRAY,TRIM1#

 1
58510-37M10B1

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 1
58510-37Q50B0

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 1
58510-37Q51B0

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 1
58510-37Q41B0

XKU600..IV5

GRAY,TRIM1#

 1
58511B - MAT, FLOOR, FRONT SIDE
58515-37110

XKC605,645,655,XKU60#,64#,65#

 1
58515-37080C0

XKC605,645,655,XKU60#,64#,65#

BLACK,TRIM1#

 1
58558E - FASTENER, PILE
90530-04005S6

XKC605,645,655,XKU60#,64#,65#

GRAY,TRIM1#

 6
90530-04005S6

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 5
58558E - FASTENER, PILE
90530-04005S6

XKC605,645,655,XKU60#,64#,65#

GRAY,TRIM1#

 6
90530-04005S6

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 5
58558E - FASTENER, PILE
90530-04005S6

XKC605,645,655,XKU60#,64#,65#

GRAY,TRIM1#

 6
90530-04005S6

XKU600..IV5

ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),GRAY,TRIM1#

 5
Common parts
90530-06001
