XKU600A-TYUMC5 (2011)
Toyota Dyna/Toyoace Hv
(1107- )DCRTK

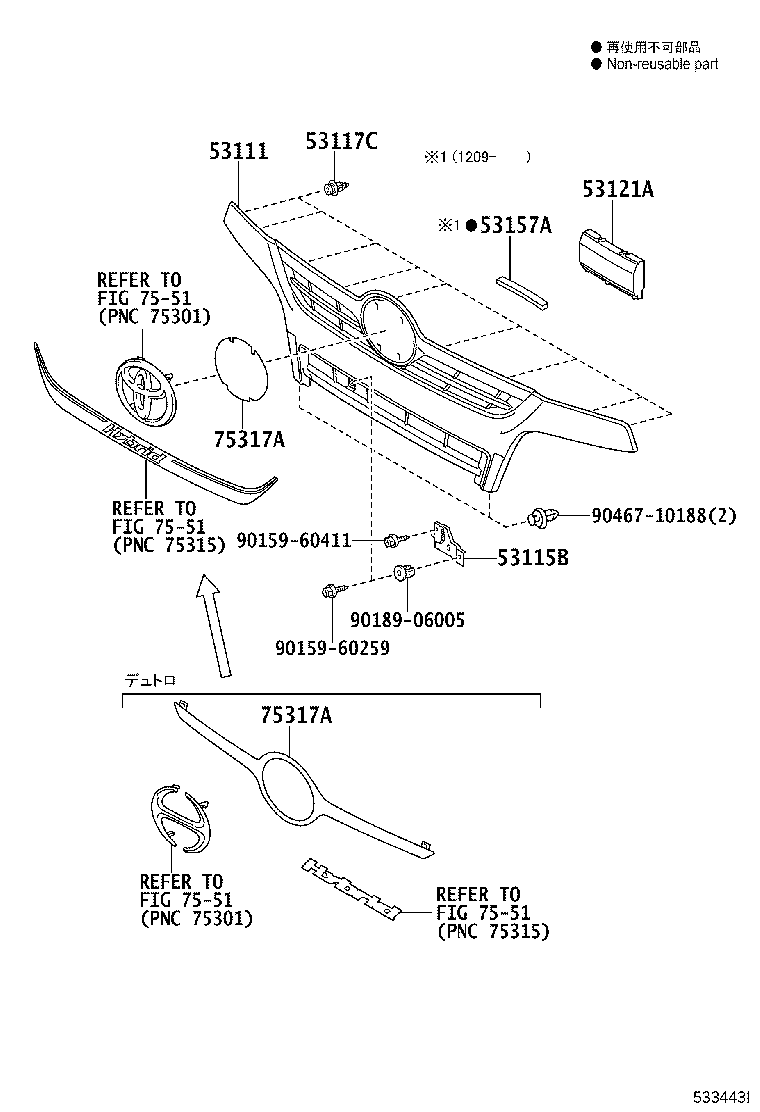

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-37890 |
XKC605,645,655,XKU60#,64#,65# 塗装不要 |
1 | ||
| 53111-37A10 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A10 |
XKC605,645,655,XKU60#,64#,65# ﾒｯｷ,ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37891 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 塗装不要 |
1 | ||
| 53111-37A11 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53111-37A11 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾒｯｷ,ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37080 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 67771-37040 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
9 | ||
| 67771-37011 |
XKC605,645,655,XKU60#,64#,65# |
9 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-37030 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 53157A - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 75317A - PLATE, RADIATOR GRILLE ORNAMENT | ||||
| 75317-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 75317-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 75317-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| 75317A - PLATE, RADIATOR GRILLE ORNAMENT | ||||
| 75317-37020 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 |
1 | ||
| 75317-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 75317-37010 |
XKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90159-60411 | ||||
| 90189-06005 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 7551 | ||||
